CHANGING THE GEAR AND
CLUTCH OIL

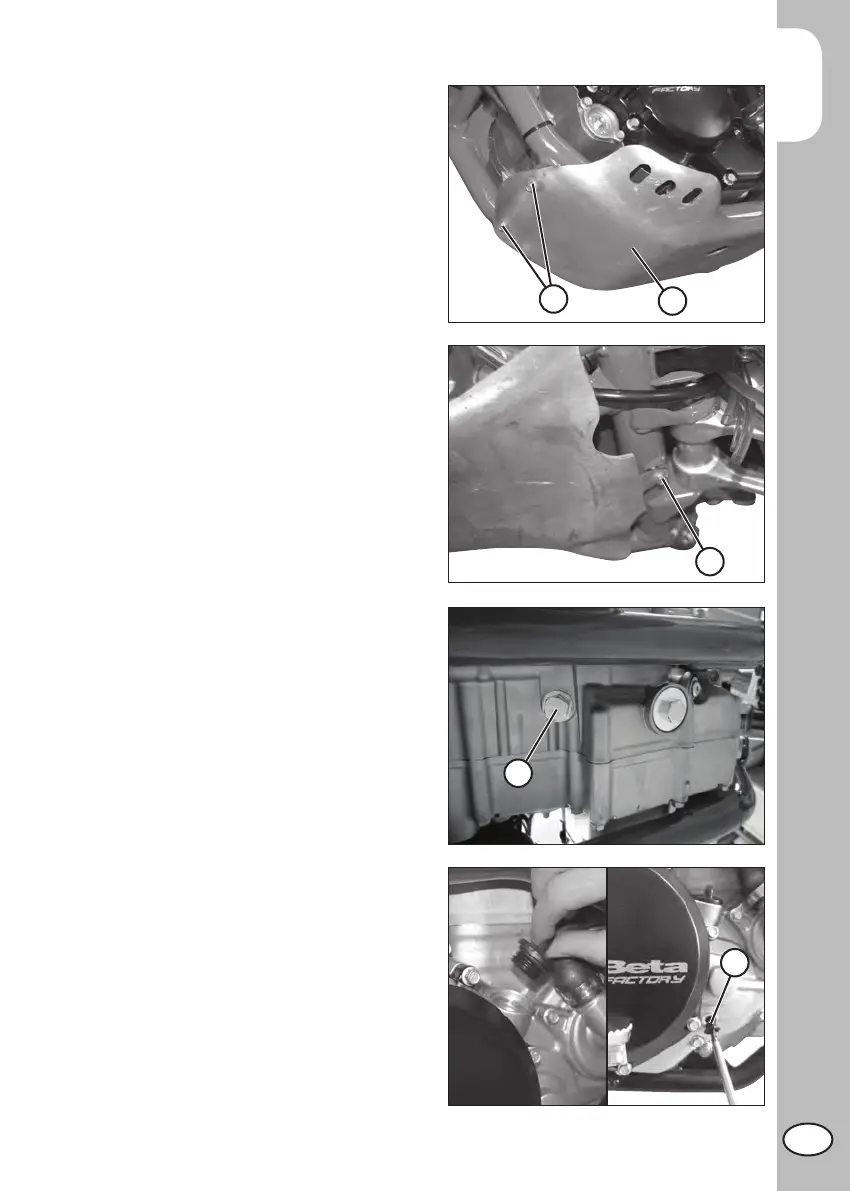

Before performing this operation, remove
the lower bumper A after unscrewing the
three screws B as shown in the picture.
The oil must be changed when the engine
is at operating temperature.
Park the motorcycle on level ground,
remove the screw C and let oil drain in
a container.
Thoroughly clean the screw and sealing
surface, put in screw C with the seal ring
and tighten at 20 Nm.
Remove screw fastner from right carter and
pour in gear oil. To check the oil level, un-
screw the check bolt D. The oil level must
arrive to the lower edge of check hole.
Under conditions with high engine tem-
peratures and intense clutch use (deep
sand and mud) it is recommended to use
an increased clutch/gearbox oil quantity
of 1000 ml.
ATTENTION:
To check the gear oil level, it is necessary
to use the vehicle for five minutes.
Tighten the check bolt.
ATTENTION:
Used oil contains hazardous to the en-
vironment. For the replacement must be
prepared for disposal in compliance with
the law.
