Beta RR 390 User Manual

3
CHECKS AND MAINTENANCE
52
GB

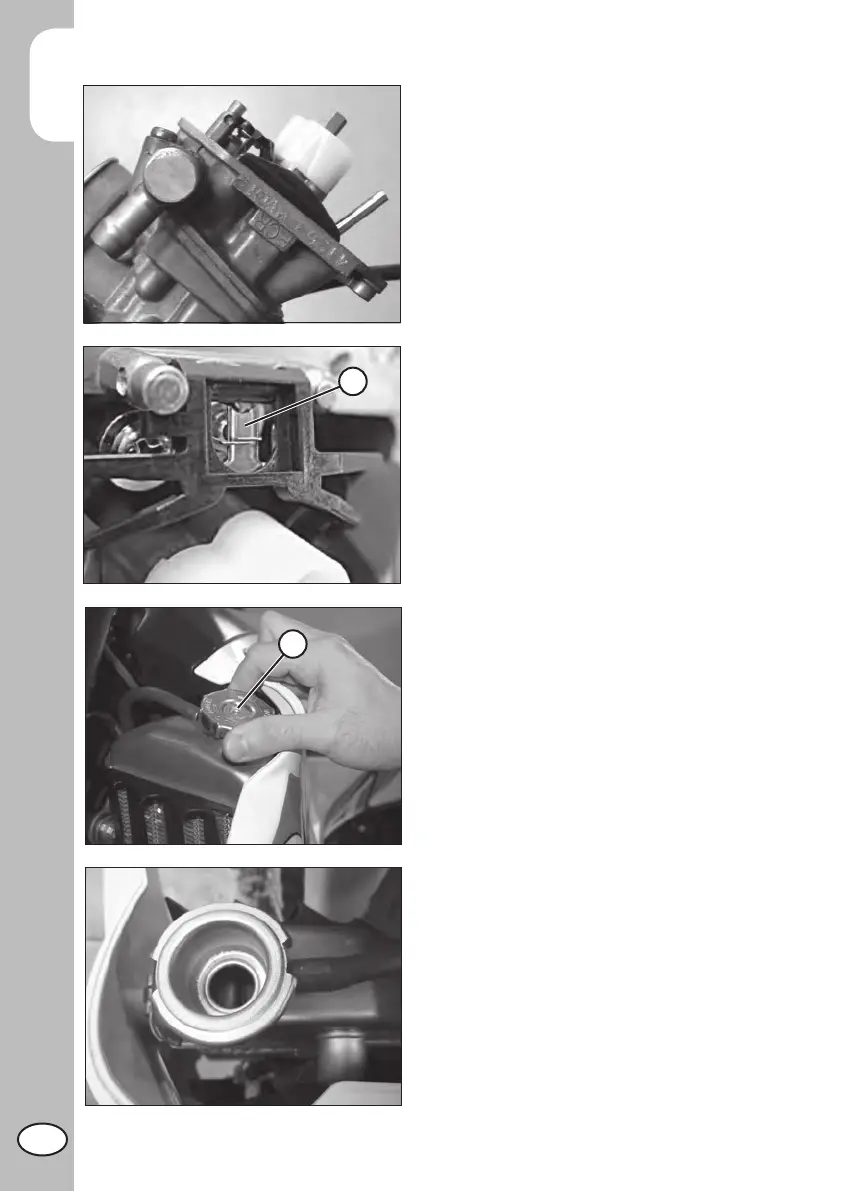

CHECKING THE FLOAT LEVEL
(FLOAT HEIGHT)
Remove the carburettor and the float
chamber. Tilt the carburettor so that the
float touches the float needle valve without
pressing it too hard.
In this position the float edge should be
parallel with the float chamber sealing
surface (see figure).
If the float height does not correspond to
the nominal value, check the float needle
valve and if necessary replace it.
If the needle valve is in working order,
adjust the float height by bending float
lever 3.
Fit the float chamber, install the carburettor
and adjust the idle speed.
3
COOLANT
The level of the coolant must be checked
when the engine is cold. Use the following
procedure:
•Unscrew cap A and visually check the
level of the liquid. When the engine is
cold, the radiator fins should be immersed
in the liquid for about 10 mm.
•Top up if the coolant does not cover the
radiator fins (see chart on page 31).
The capacity of the circuit is shown in the
table on page 20.
WARNING
To avoid scalds, never unscrew the radiator
filler cap when the engine is hot.
A

Beta RR 390 Specifications

General

Displacement	386 cc
Bore x Stroke	88 mm x 63.4 mm
Compression Ratio	12.5:1
Fuel System	Electronic Fuel Injection
Ignition	DC-CDI
Lubrication	Wet sump
Transmission	6-speed
Clutch	Wet multi-disc
Front Tire	90/90-21
Rear Tire	140/80-18
Ground Clearance	320 mm
Dry Weight	107 kg
Engine Type	Single cylinder, 4-stroke, liquid-cooled
Frame	Molybdenum steel with double cradle split above the exhaust port
Rear Suspension	Monoshock
