ADJUSTMENTS
60
GB

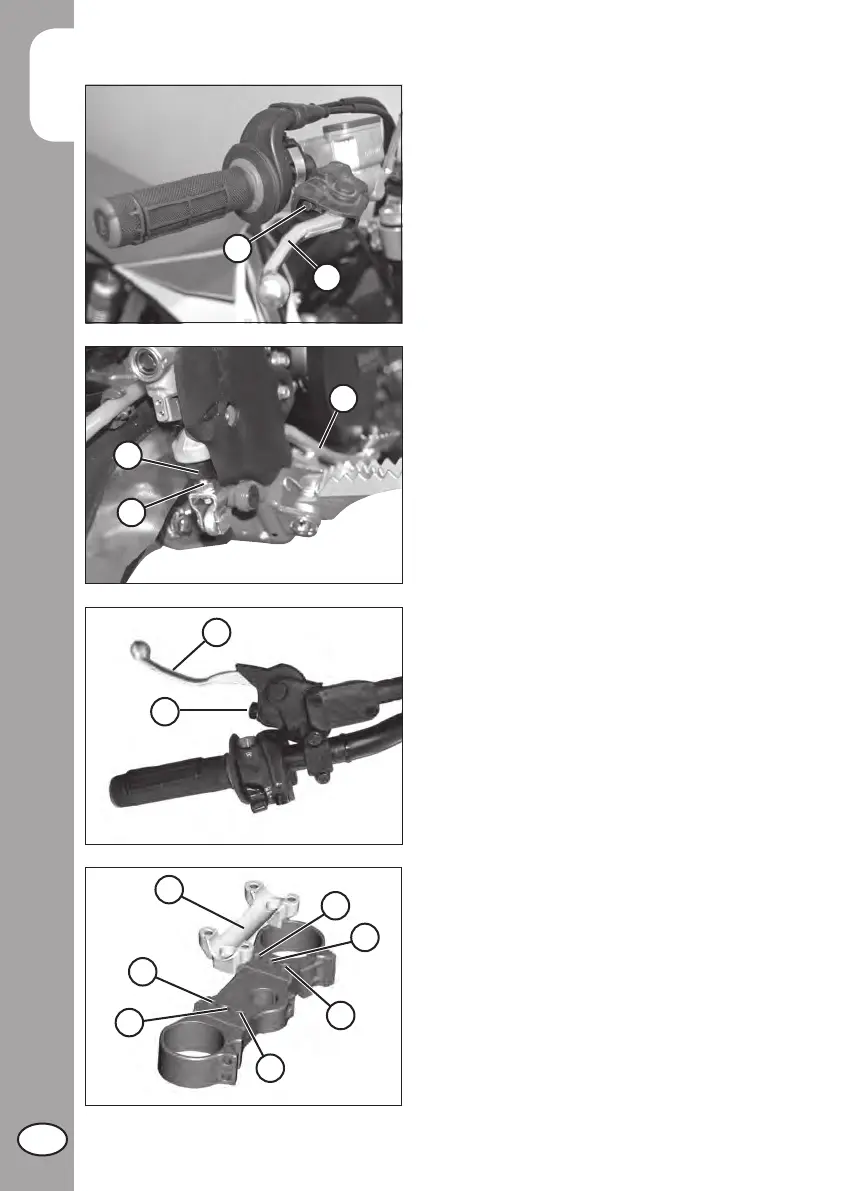

ADJUSTING THE HOME
POSITION OF THE CLUTCH
LEVER
The adjustment screw 6 allows adjustment
of the distance of lever 7 from the knob.
The empty run is recovered automatically.
ADJUSTING THE
HANDLEBARS
The lower bracket 1 can be mounted on
the holes nr. 2, 3 or 4 respectively, while
the handlebar can be rotated by 180° in
order to meet the driver’s specific driving
needs.
ADJUSTING THE HOME
POSITION OF THE FRONT
BRAKE LEVER
The home position of brake lever 2 can be
adjusted by means of screw 1.
ADJUSTING THE HOME
POSITION OF THE BRAKE
PEDAL
The home position of brake pedal 3 can
be altered by turning adjusting screw 5 af-
ter loosening the counternut located under
dust cap 4. Loosen the counternut and turn
the adjusting screw until the desired height
is obtained. Retighten the counternut after
completing the operation.
