Volume 8
The Volume 8 is an external control device, which allows
adjustment of eight selectable Audia volumes. Volumes can be
individual or grouped levels within Audia. This includes Level
Control blocks, as well as levels within other component blocks
(such as Inputs/Outputs, Mixers, Equalizers, etc.).

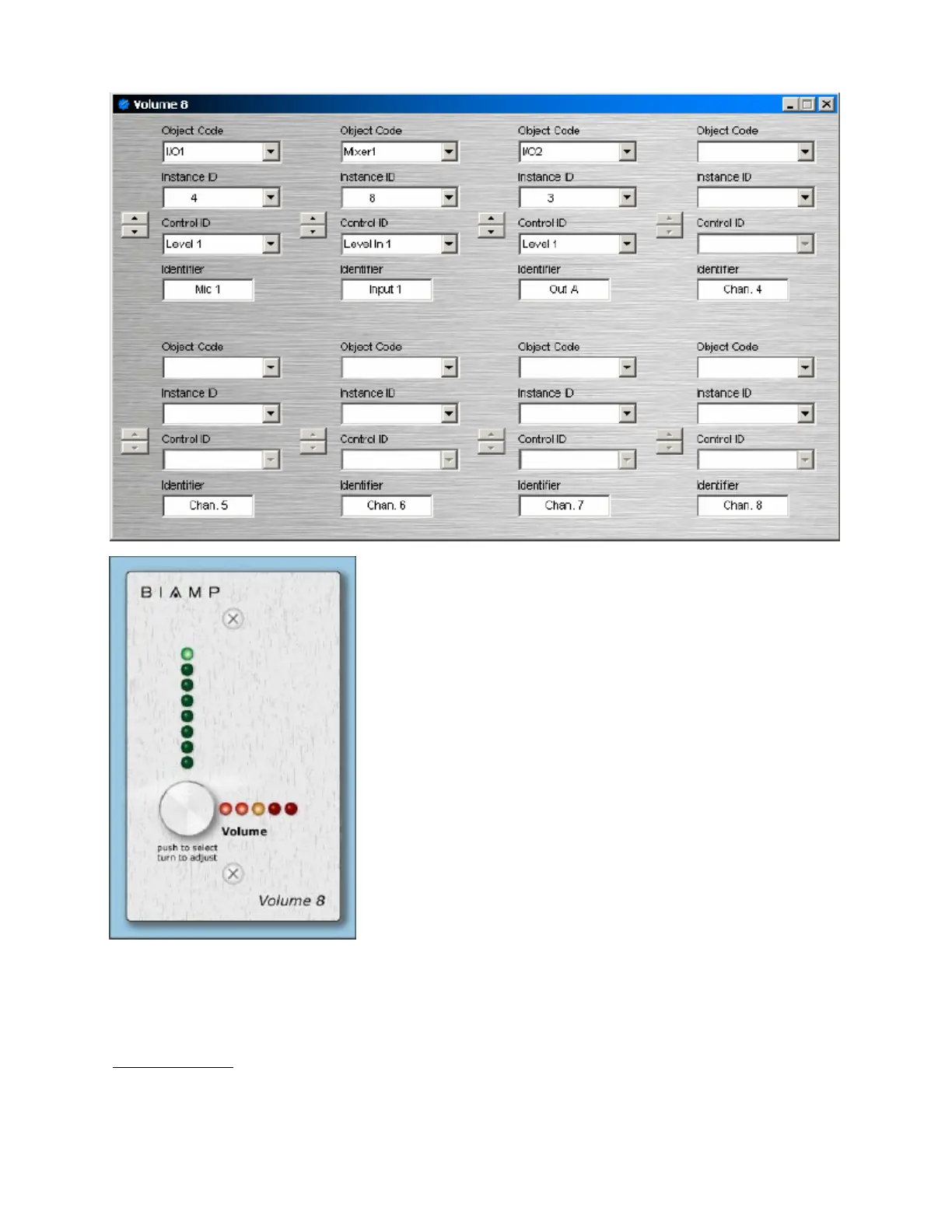

Volume 8 is represented in the layout as a block with no audio
or control connections. All functions are assigned using the
control dialog box. Object Code selects from a list of blocks
found in the layout, and Instance ID is entered automatically,
but both can be found easily using Object ID Inspector.
Control ID selects from a list of available levels within the
chosen block. Volume up/down buttons allow control of
assigned levels directly from the dialog box. Identifier
provides a custom label, when the dialog box is minimized (see
below).
Control Dialog Boxes for Volume 8 components can be
minimized to create user control surfaces (see Customizing
Component Objects).
Volume 8 controls include a raceway (surface-mount) back-box, but will fit most US standard single-gang
(flush-mount) back-boxes. Custom Control Labels may be printed for the Volume 8. Please refer to the
'Installation Guide
' (included with controls), or see Control Bus for more information. External controls must
be identified (see Device Maintenance) and associated with their corresponding component blocks within
the layout (see Equipment Table).
