Select 8
The Select 8 is an external control device, which allows
initiation of eight selectable Audia actions. Actions can
be individual or grouped functions within Audia. This
includes recalling presets, ducking, combining, etc.
Select 8 components have no Control Dialog Boxes.

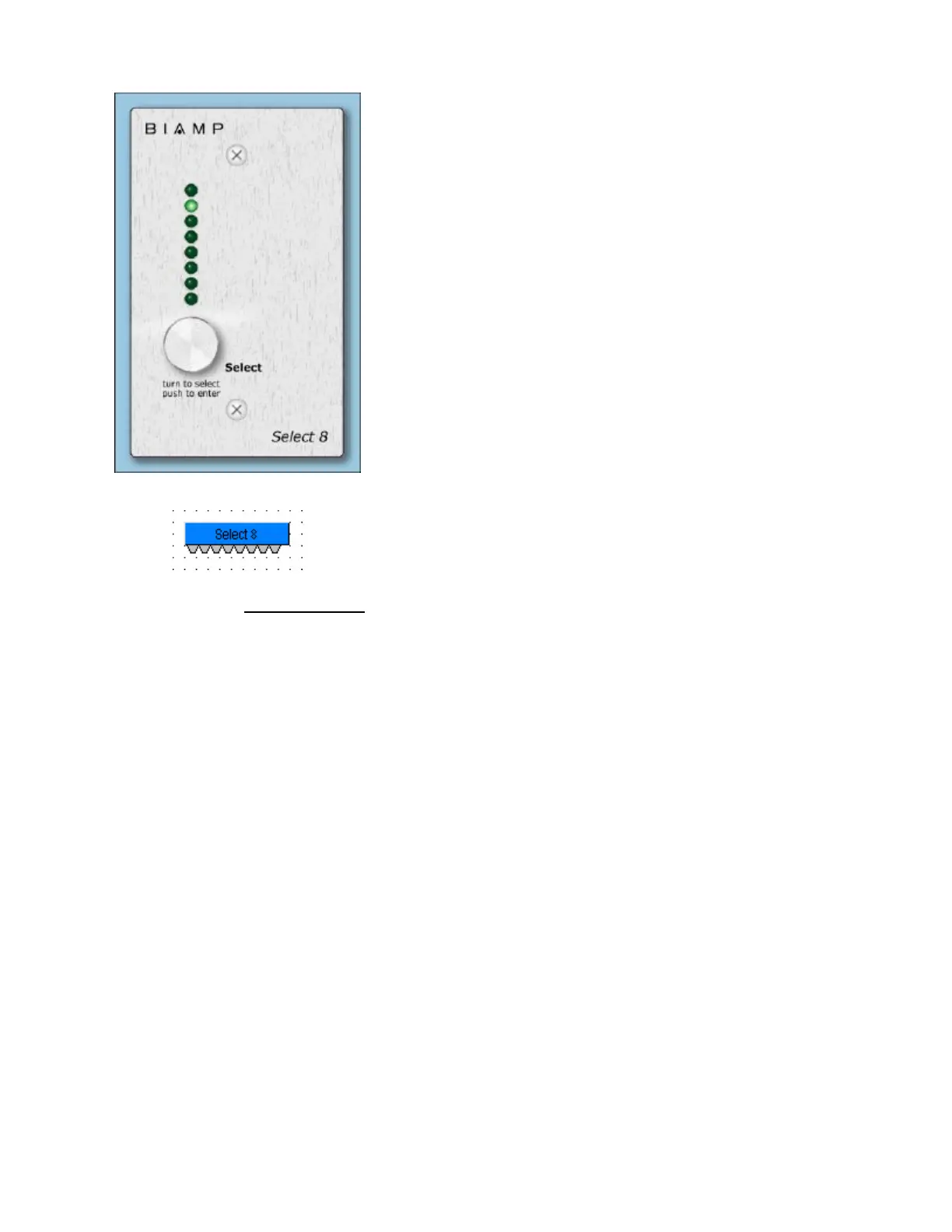

They are represented in the layout as a block with eight
control output nodes. These control output nodes are
connected to control input nodes on the other
component blocks to be controlled. These other
components may include Remote Preset Buttons,
Duckers, Room Combiners, and Logic Boxes. Muting
and room combining routines can also be achieved
using presets. Logic Boxes can provide logic outputs for
controlling additional equipment, external to Audia.
Select 8 behavior can be altered using Logic Gates.
Select 8 controls include a raceway (surface-mount)
back-box, but will fit most US standard single-gang
(flush-mount) back-boxes. Custom Control Labels may
be printed for the Select 8.
Please refer to the 'Installation Guide
' (included with controls), or see Control Bus for more information.
External controls must be identified (see Device Maintenance) and associated with their corresponding
component blocks within the layout (see Equipment Table).
