Volume/Select 8
The Volume 8 is an external control device,
which combines the functions of both
Volume 8 and Select 8 controls. Therefore,
the Volume/Select 8 is represented with a
control dialog box (for volume functions), as
well as a component block with control
output nodes (for select functions).

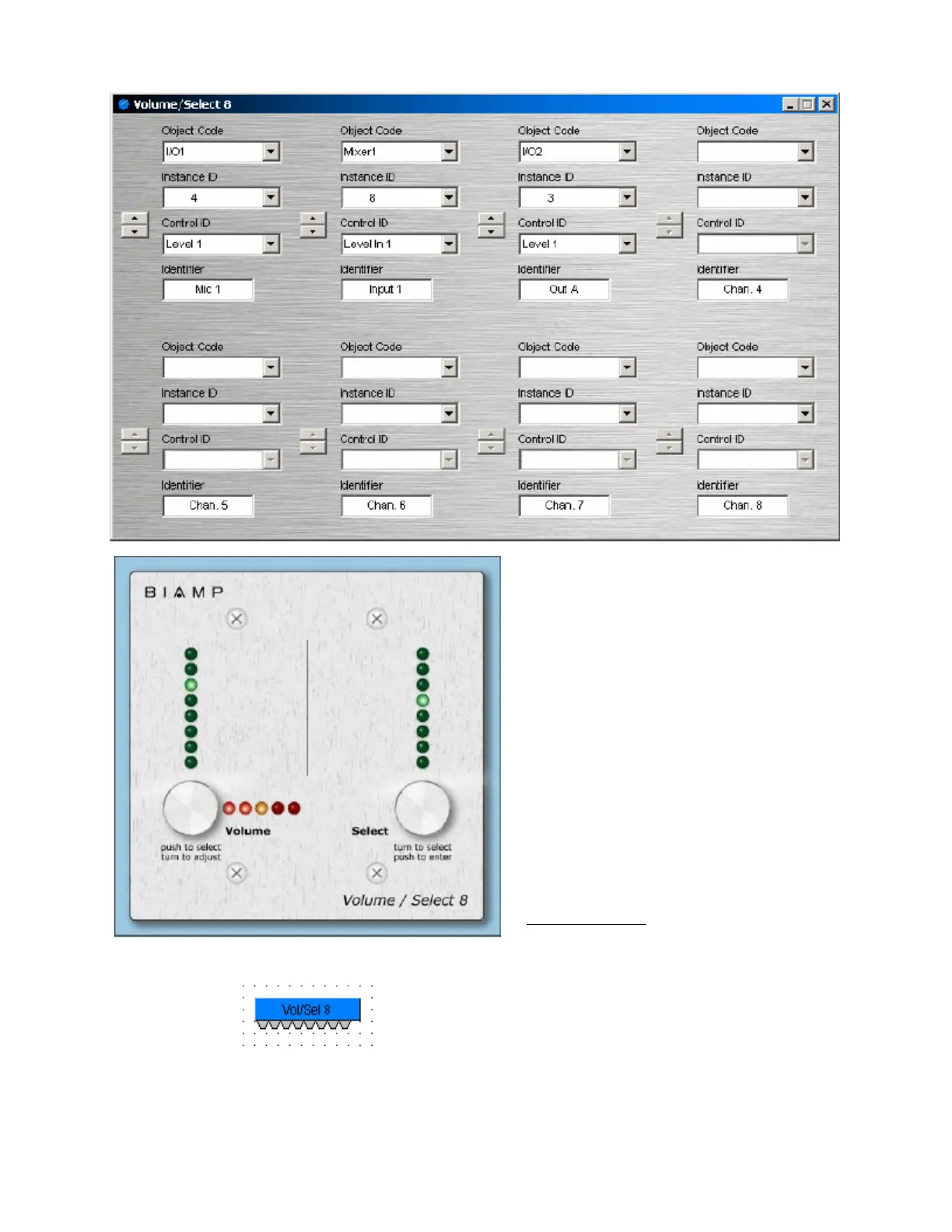

Control Dialog Boxes for Volume/Select 8
components can be minimized to create
user control surfaces (see Customizing
Component Objects).
Volume/Select 8 controls include a raceway
(surface-mount) back-box, but will fit most
US standard double-gang (flush-mount)
back-boxes.
Custom Control Labels may be printed for
the Volume/Select 8. Please refer to the
'Installation Guide
' (included with controls),
or see Control Bus for more information.
External controls must be identified (see
Device Maintenance) and associated with
their corresponding component blocks
within the layout (see Equipment Table).
