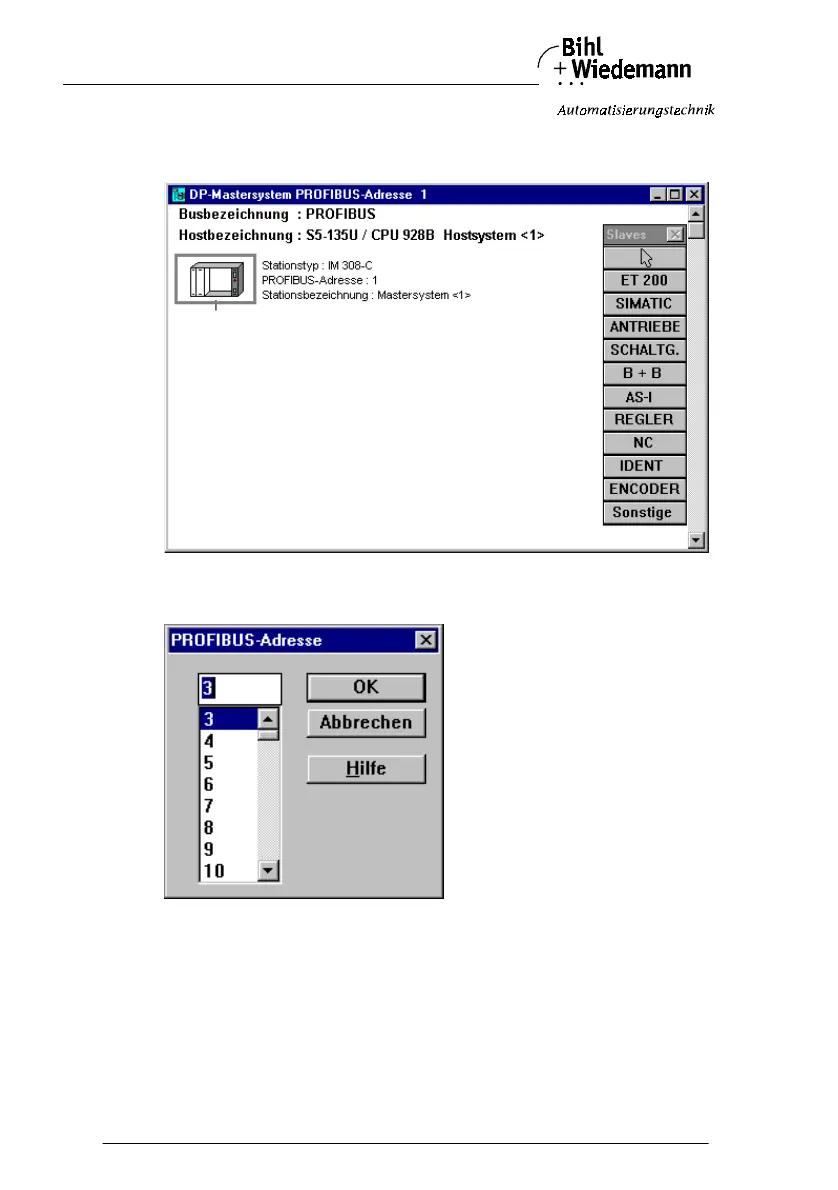

6. In the window “DP Master System” there is a ledge with several PROFIBUS
slaves.
Click on AS-i and drag the icon to the PROFIBUS in the window above.
7. After a second mouse click the dialogbox for the selection of the PROFIBUS
station address appears. Setting of the AS-i/PROFIBUS gateway's station ad-
dress see chapter 5.7:
