VDL (E3) 09/2019 Page 200/234

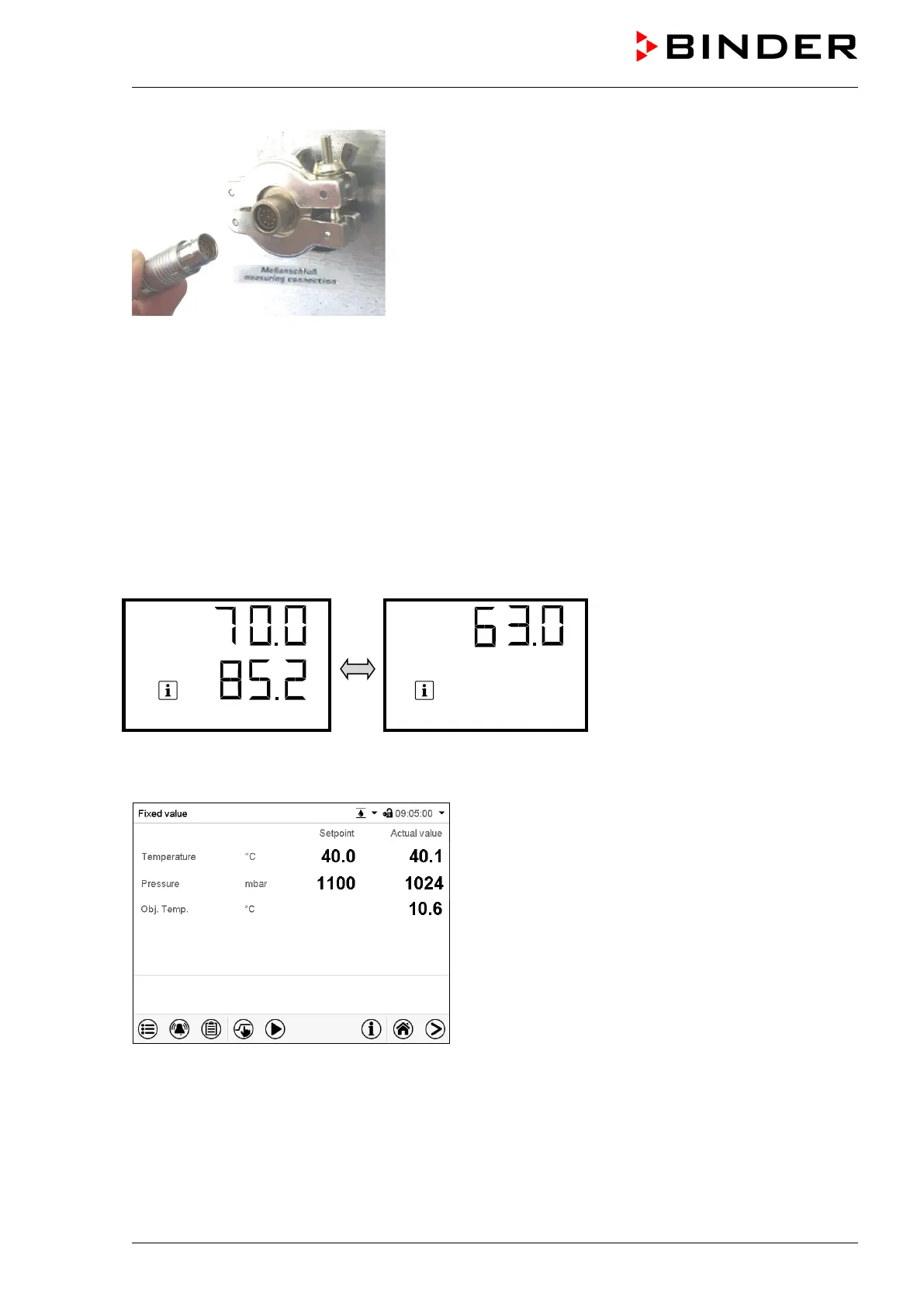

Figure 28: Measuring connection (12) with measuring access port
Technical data of the Pt 100 sensor:
• Three-wire technique
• Class B (DIN EN 60751)
• Temperature range up to 320 °C / 608 °F
• Stainless steel protective tube, length 45 mm / 1.77 in, stainless steel material no. 1.4501
25.4.2 Display on the RD4 controller
In Normal display, the current actual values and the measures object temperature values are shown al-
ternately:
T / Pressure (mbar)
Obj. Temp.
25.4.3 Display on the MB2 controller
Normal display with object temperature display
(sample values)
The object temperature data are put out together with the data of the temperature controller to the cham-
ber’s interface and can be documented by the APT-COM™ 4 Multi Management Software (option, chap.
25.1) developed by BINDER.
