Appendix A Maintaining the Imaging System
To reinstall Image Lab Touch
1. Insert the USB flash drive into the USB port above the imager main door.
2. Log in to Image Lab Touch.

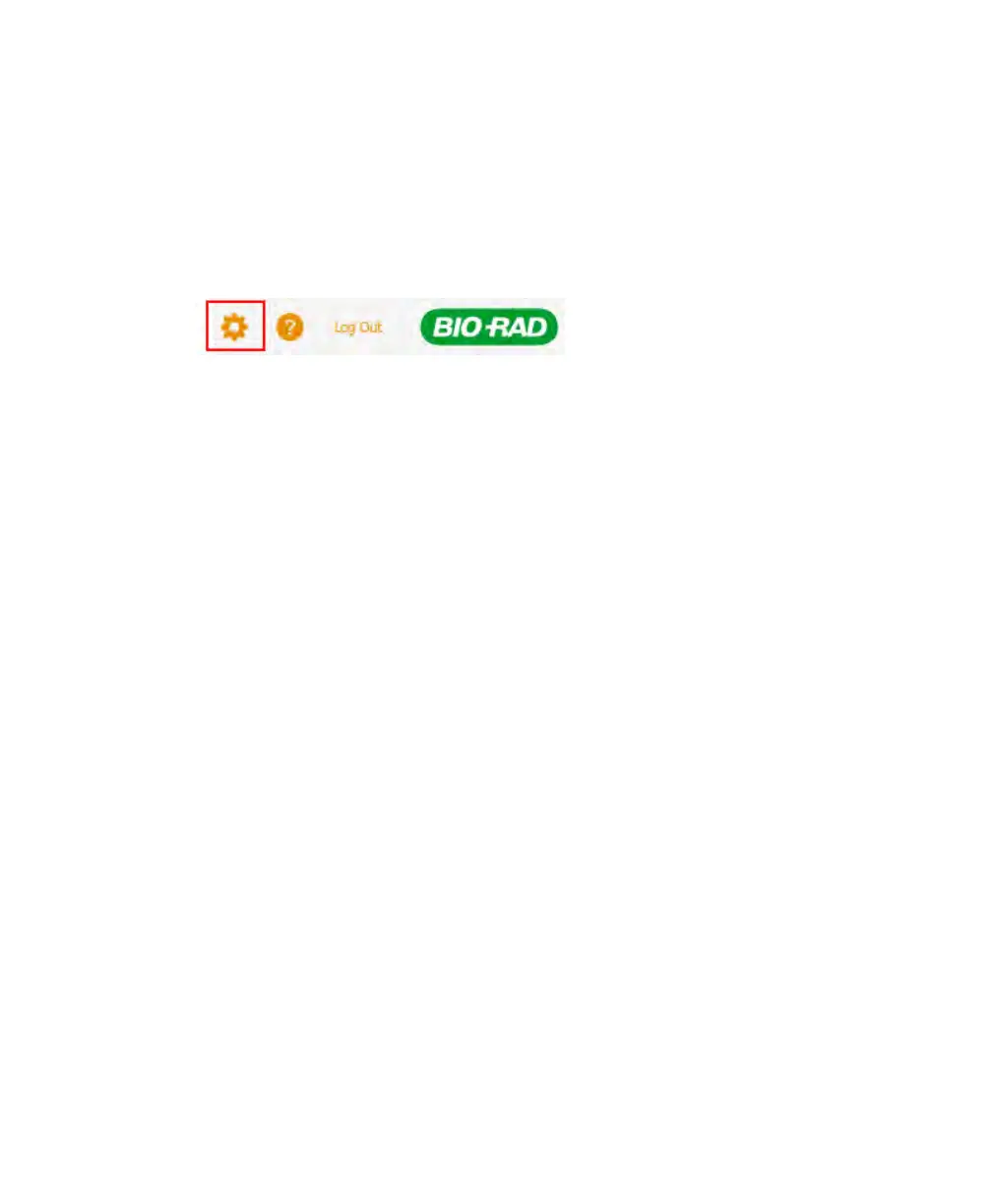

3. Tap Settings in the main toolbar.
4. Tap Update Installation.
A dialog box displays the current software version and the software update version.
5. Tap OK.
When installation is complete, Image Lab Touch restarts and the login screen appears.
About the UV Transilluminator Bulbs
Use 302 nm standard transilluminator bulbs with the imager. (See Appendix B, Ordering
Information for the catalog number.)
Depending on the amount of use, the UV bulbs can last for many years. An error message
appears when one or more of the bulbs must be replaced.
When Transilluminator Bulbs Fail
The six bulbs are organized into three groups of two and are identified as Bank 1, Bank 2,
and Bank 3. When a transilluminator bulb fails, an error message identifies the failed bank
of bulbs.
106 | ChemiDoc Touch Imaging System
