Replacing the Fuses

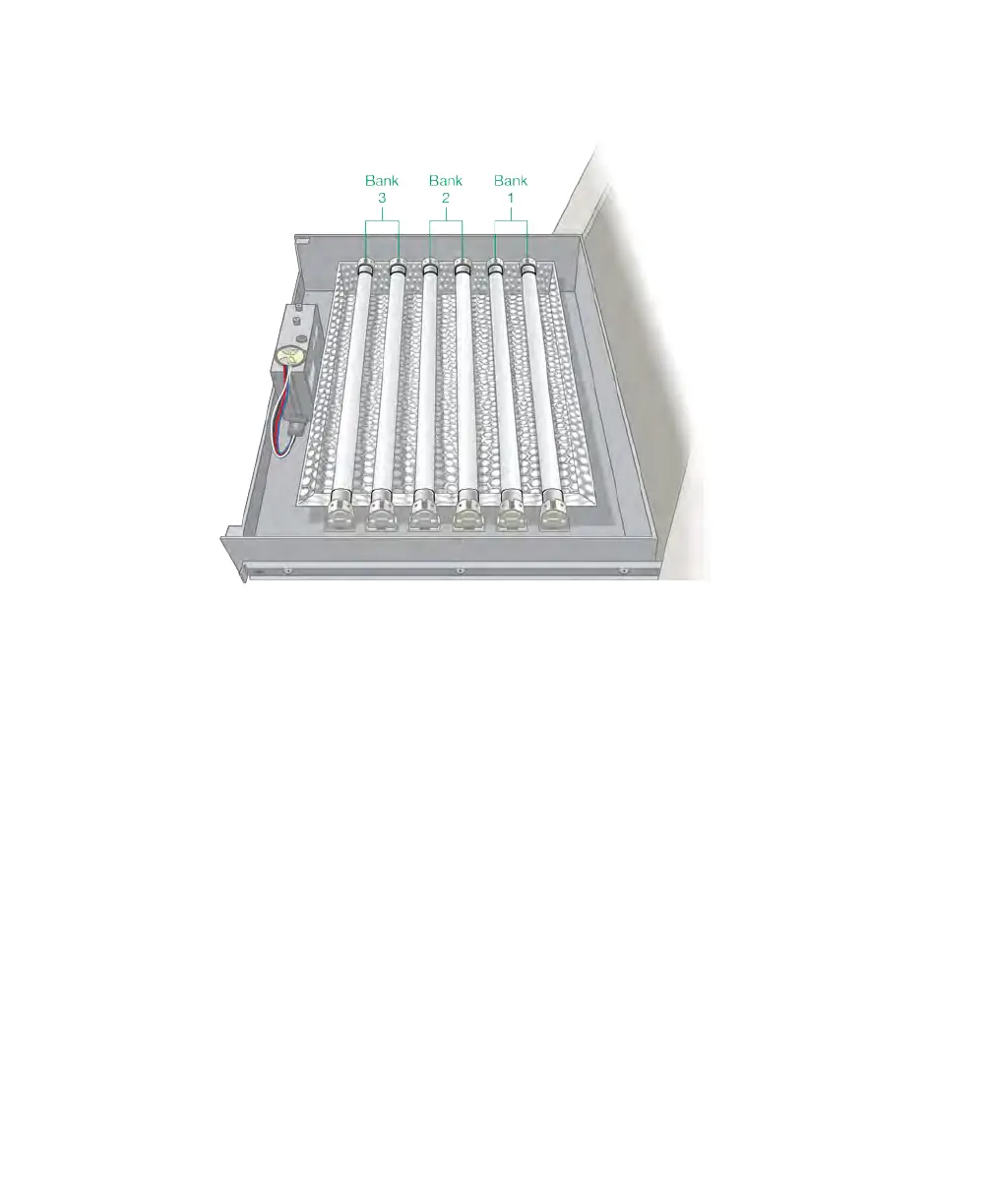

7. Rotate a lamp until it loosens and the pins are vertical and aligned with the socket.
8. Remove the lamp.
9. Install the new lamp by setting it in place and rotating it until the pins are seated and
horizontal.
10. Set the transilluminator cover on the drawer. Secure the cover to the drawer with the
screws.
Replacing the Fuses
To replace the fuses
1. Unplug the power cord from the back of the instrument.
The fuse drawer sits above the power plug.
