Chapter 4 Viewing Images
To merge images in Image View
u Display two images in Image View and tap Merge.
Naming Merged Images
The system names the merged image by combining the names of both images separated
by a plus sign:
Example
2015-04-30 17hr 26min 19sec+2015-04-30 17hr 27min 24sec
If the name is already in use in the Gallery, the system generates another name by adding
a hyphen and an incremental number (starting at 1) to the end of the combined name. The
system continues to incrementally raise the number it is adding (-2, -3, -4 and so on) until
the name is unique.
Example
2015-04-30 17hr 26min 19sec+2015-04-30 17hr 27min 24sec-1
The system stores the name of the merged image and the two source images.

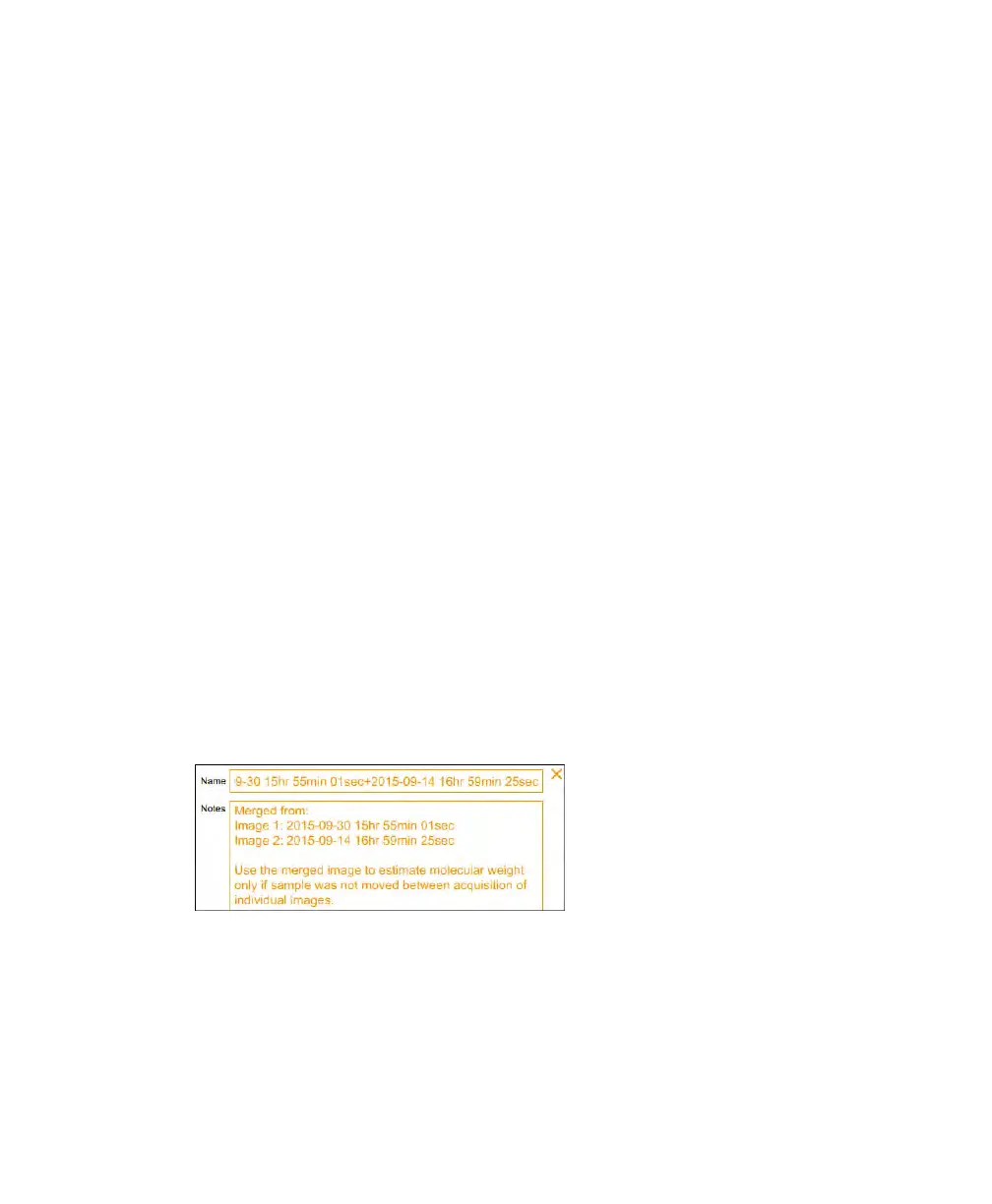

To view the names of the source images
u In Image View, open the Image Info box for the merged image.
To rename the merged image, see Renaming Images on page 87.
86 | ChemiDoc Touch Imaging System
