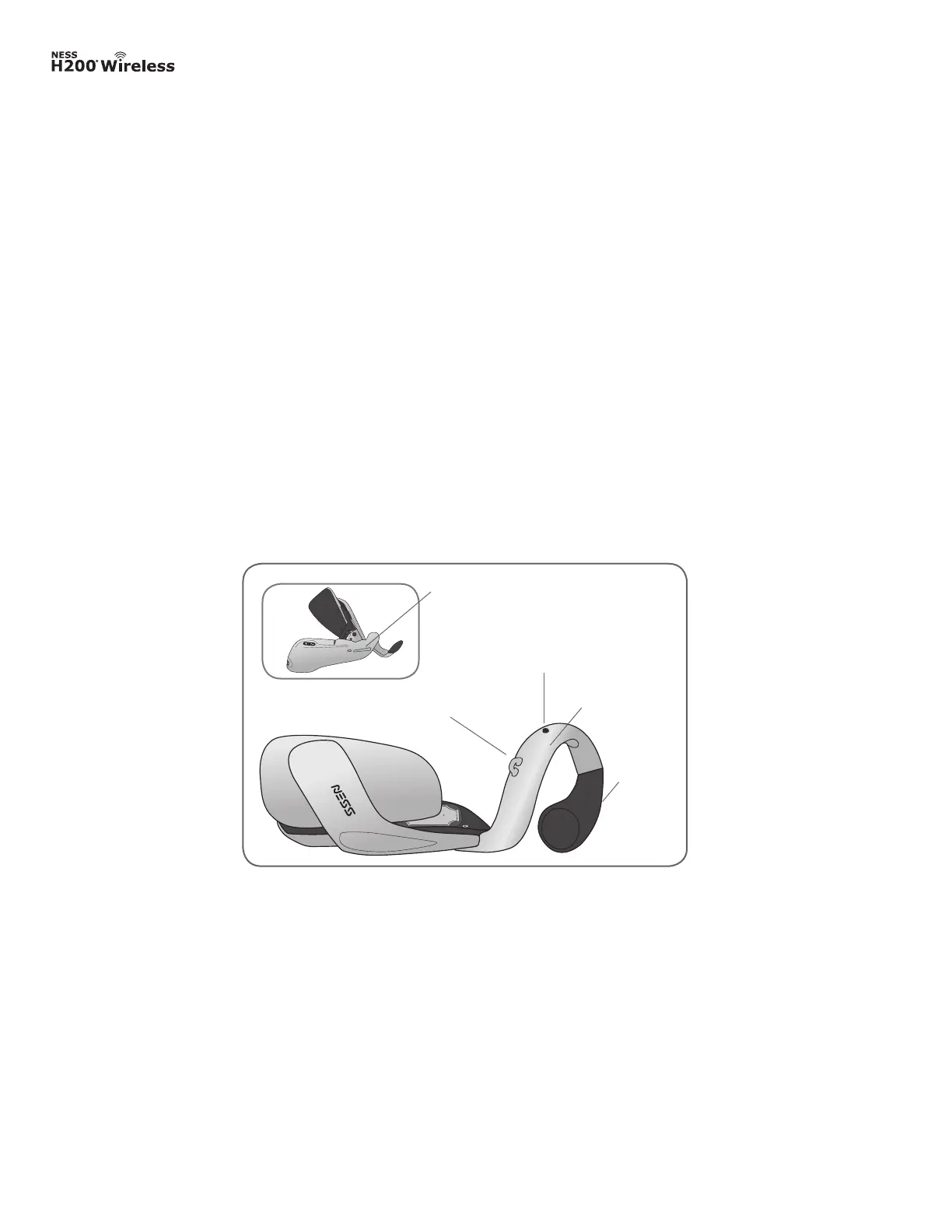

Figure 4-4: Spiral end of the H200 Wireless Orthosis.
Thenar
Wrist Strap
Attachment Ring
Wrist Strap
Attachment Bar
Wrist Bridge
Trigger Button
Spiral End of the Orthosis
The spiral end of the Orthosis is designed to support the hand while delivering stimulation to
the thenar muscle group.
The spiral end features: See Figure 4-4.
• A removable thenar—supports the thenar eminence.
• A wrist bridge—used to stabilize the hand in a functional position while in the Orthosis.
• A trigger button—used on the wrist bridge for turning on/pausing stimulation.
• A removable wrist insert—found on the underside of the wrist bridge and used to cushion
the wrist. (Not shown in Figure 4-4.)
• An attachment ring—used for the Orthosis wrist strap.
• An attachment bar—used for securing the Orthosis wrist strap.
