Chapter 6 - Fitting the H200 Wireless Orthosis
Fitting the Wrist Strap and FPL Panel
1. With the extensor wing open, position the spiral end of the Orthosis proximally on the
hand.
2. Bring the Orthosis around the forearm, and position the flexor support on the forearm.
See Figure 6-9.

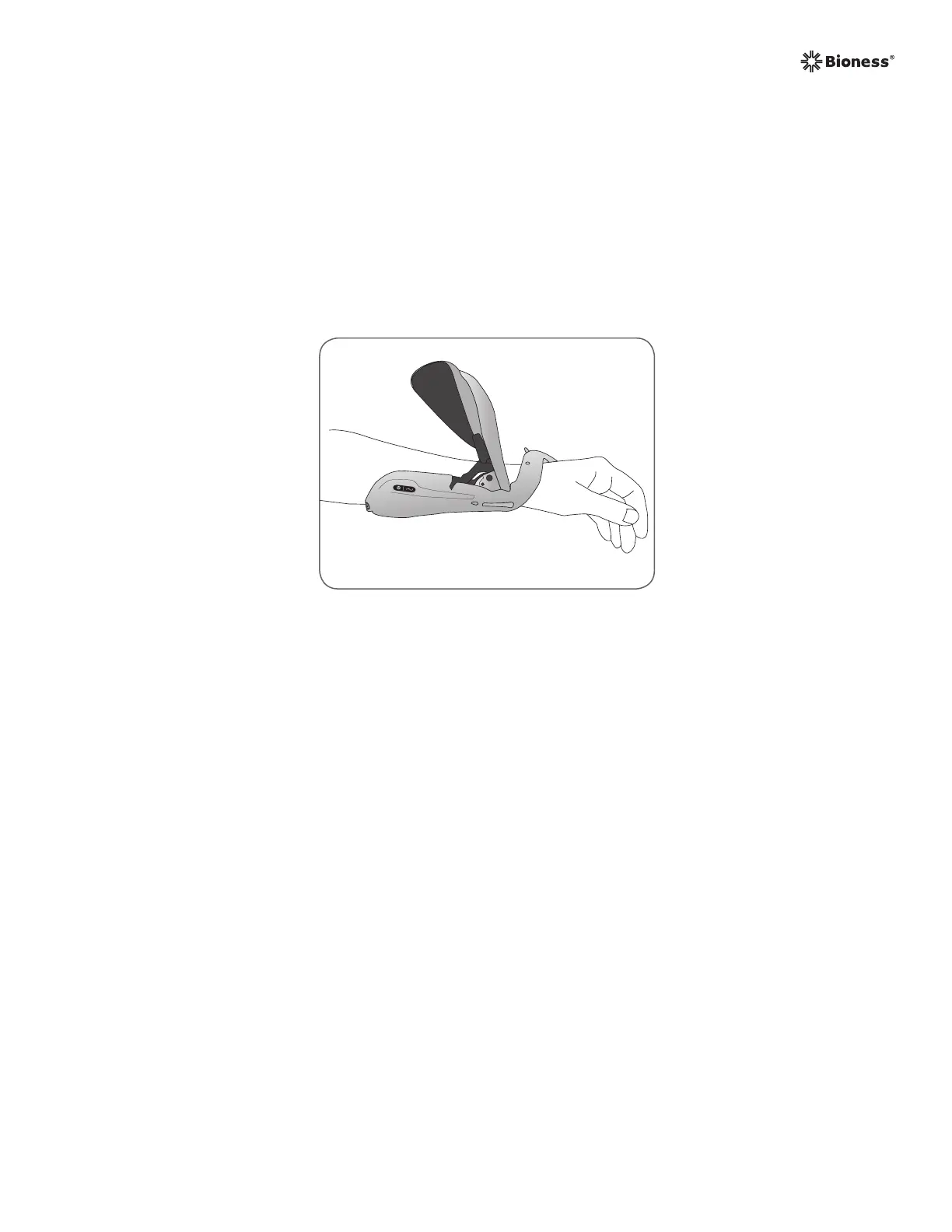

Figure 6-9: Positioning the flexor support.
3. Recheck the position of the spiral end. Make certain there is no excess pressure on the
arm/hand, especially in the wrist area. Make certain the thenar is positioned at the center
of the thenar eminence.
4. If the Orthosis is positioned too distally, then remove the Orthosis and start again. Do not
slide the Orthosis proximally on the arm.
