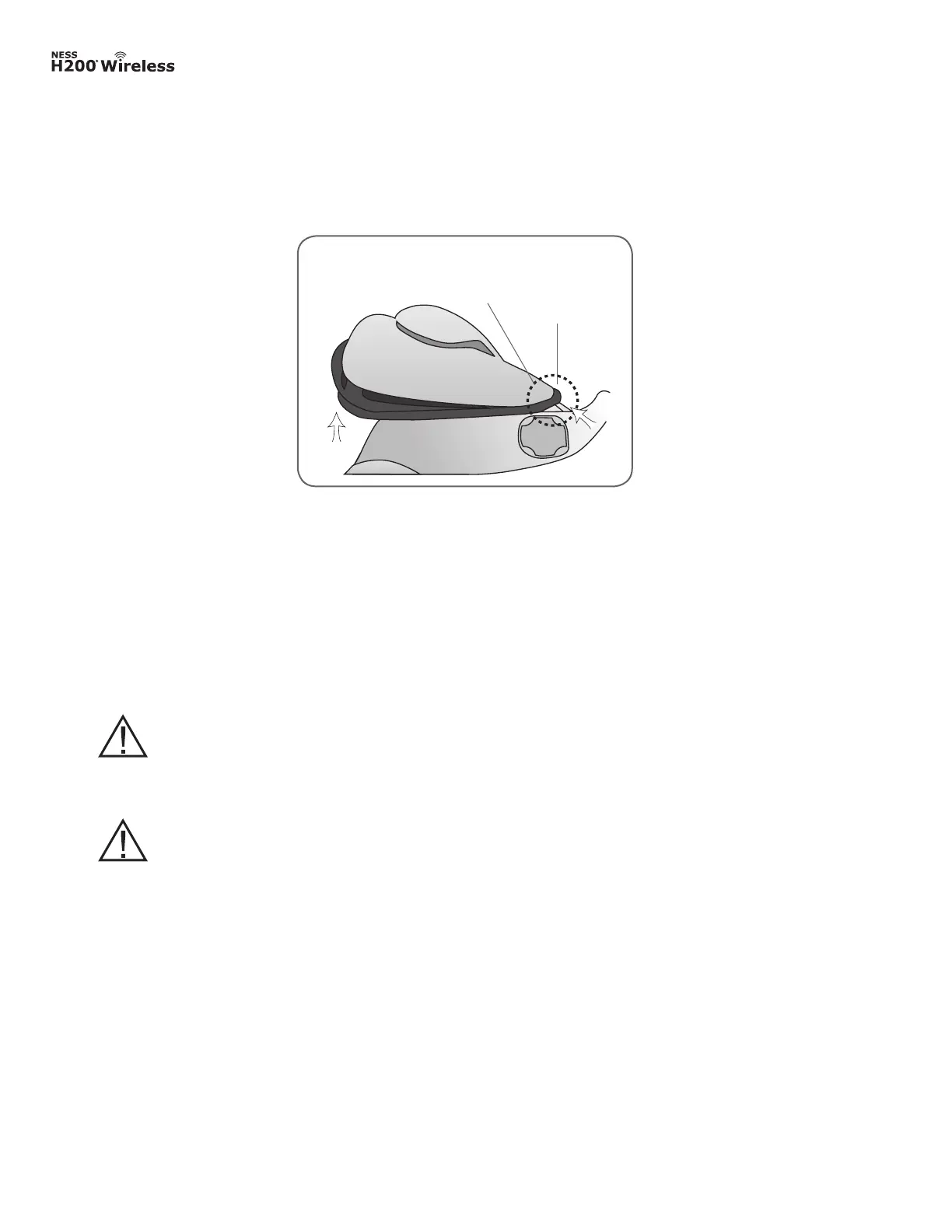

Figure 6-17: Placement of the extensor fitting panel.
Extensor Fitting
Panel
Extensor Wing
2. With the Orthosis wing opened, align the narrow end of the extensor fitting panel with the
narrow end of the extensor wing. See Figure 6-17. Make sure the lip of the fitting panel
rests outside of the wing.
3. Grasp the extensor fitting panel and the extensor wing and gently press on the fitting
panel until it clicks into place.
CAUTION: Disinfect the fitting panels and Orthosis after each use. See the
maintenance and cleaning section of this guide.
CAUTION: Do not use the fitting panels without first wetting and attaching
the cloth electrodes.
