36
4. Use numerical keys directly or use keys with rotary
adjustment followed by to confirm the OVP value.
5. Press several times to exit the menu setting.
6. If the OVP is on, the OVP LED indicator will be lit up.

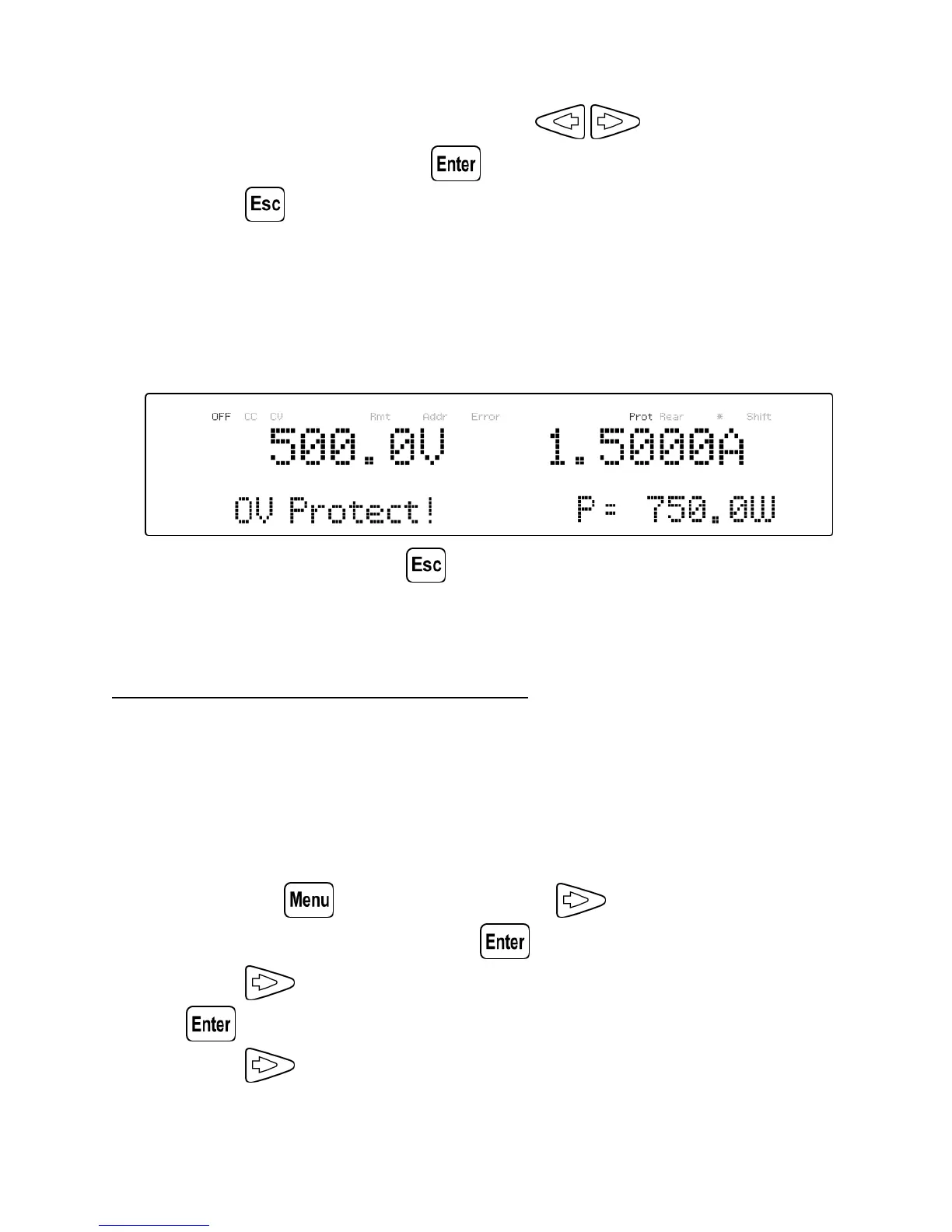

When OVP protection is tripped during operation, the output will turn
off and the following OVP status message will display:
To clear the trip status, press once.
Configure Over Current Protection (OCP)
The PVS overcurrent protection utilizes a hardware comparator that
quickly protects the instrument when the current presented at the
output terminal exceeds the OCP setting current.
Follow the steps below to set the OCP limit:
1. Press the button and press the button one time until
CONFIG is blinking and press .
2. Press button one time until PROTECT is blinking and press
. The display will then show OVP.
3. Press button one time until OCP is displayed.
