37
4. Use rotary to select the OCP ON or OFF followed by .
5. Use numerical keys directly or use keys with rotary
adjustment followed by to confirm the OCP value.
6. Press several times to exit the menu setting.
7. If the OCP is on, the OCP LED indicator will be lit up.

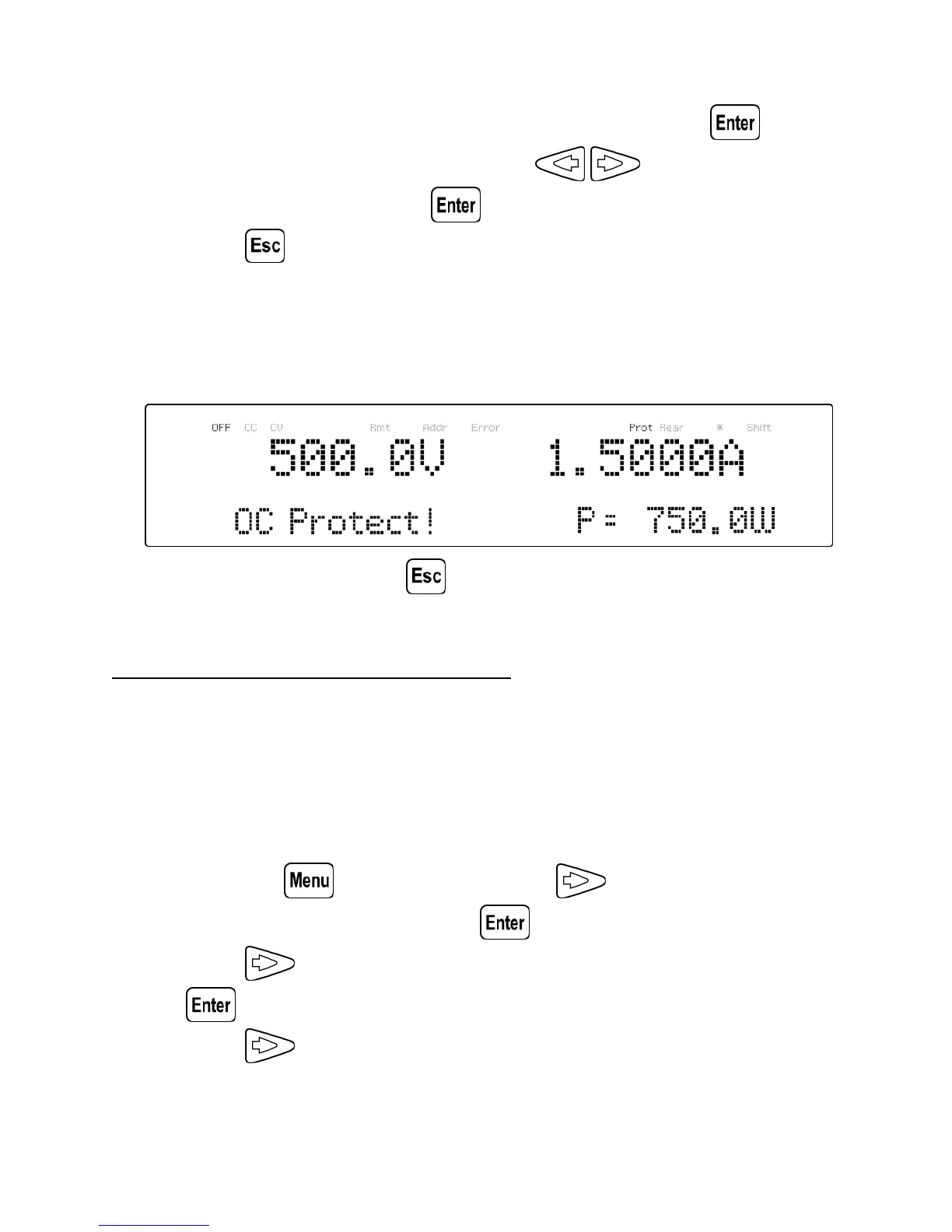

When OCP protection is tripped during operation, the output will turn
off and the following OCP status message will display:
To clear the trip status, press once.
Configure Overpower Protection (OPP)
The PVS overpower protection continuously monitors the output power
level. If it is greater than the OPP setting, it turns off the power supply
output to protect the device under test.
Follow the steps below to set the OPP limit:
1. Press the button and press the button one time until
CONFIG is blinking and press .
2. Press button one time until PROTECT is blinking and press
. The display will then show OVP.
3. Press button two times until OPP is displayed.
