38
4. Use rotary to select the OPP ON or OFF followed by .
5. Use numerical keys directly or use keys with rotary
adjustment followed by to confirm the OPP value.
6. Press several times to exit the menu setting.
7. If the OPP is on, the OPP LED indicator will be lit up.

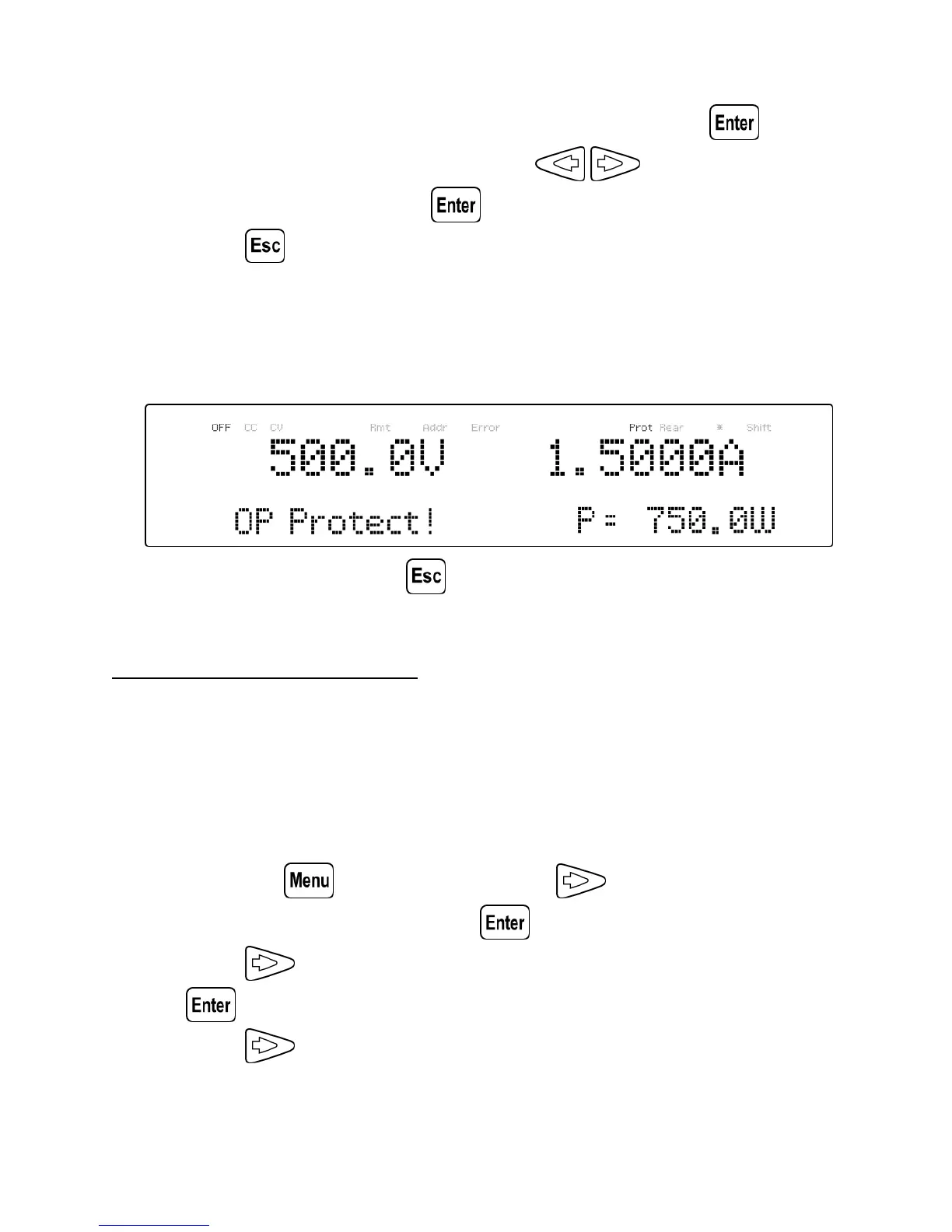

When OPP protection is tripped during operation, the output will turn
off and the following OPP status message will display:
To clear the trip status, press once.
Configure CV to CC Protection
The PVS CV to CC protection monitors the transition between constant
voltage to constant current mode. If this event occurs, the output of the
power supply will turn off.
Follow the steps below to set the CV to CC limit:
1. Press the button and press the button one time until
CONFIG is blinking and press .
2. Press button one time until PROTECT is blinking and press
. The display will then show OVP.
3. Press button three times until CV to CC is displayed.
