50
Voltage Monitor
This function is able to monitor the voltage output using Pin 11 and one
of the ground pins (i.e. Pin 22), which can be connected to a digital
voltage meter (DVM) or other voltage monitoring device, as shown
below. The output control must be in analog mode to use this function.
The monitoring of the output voltage range (which reflects 0 to full scale
of the power supply’s output voltage) can be selected between 0-5 V
and 0-10 V.

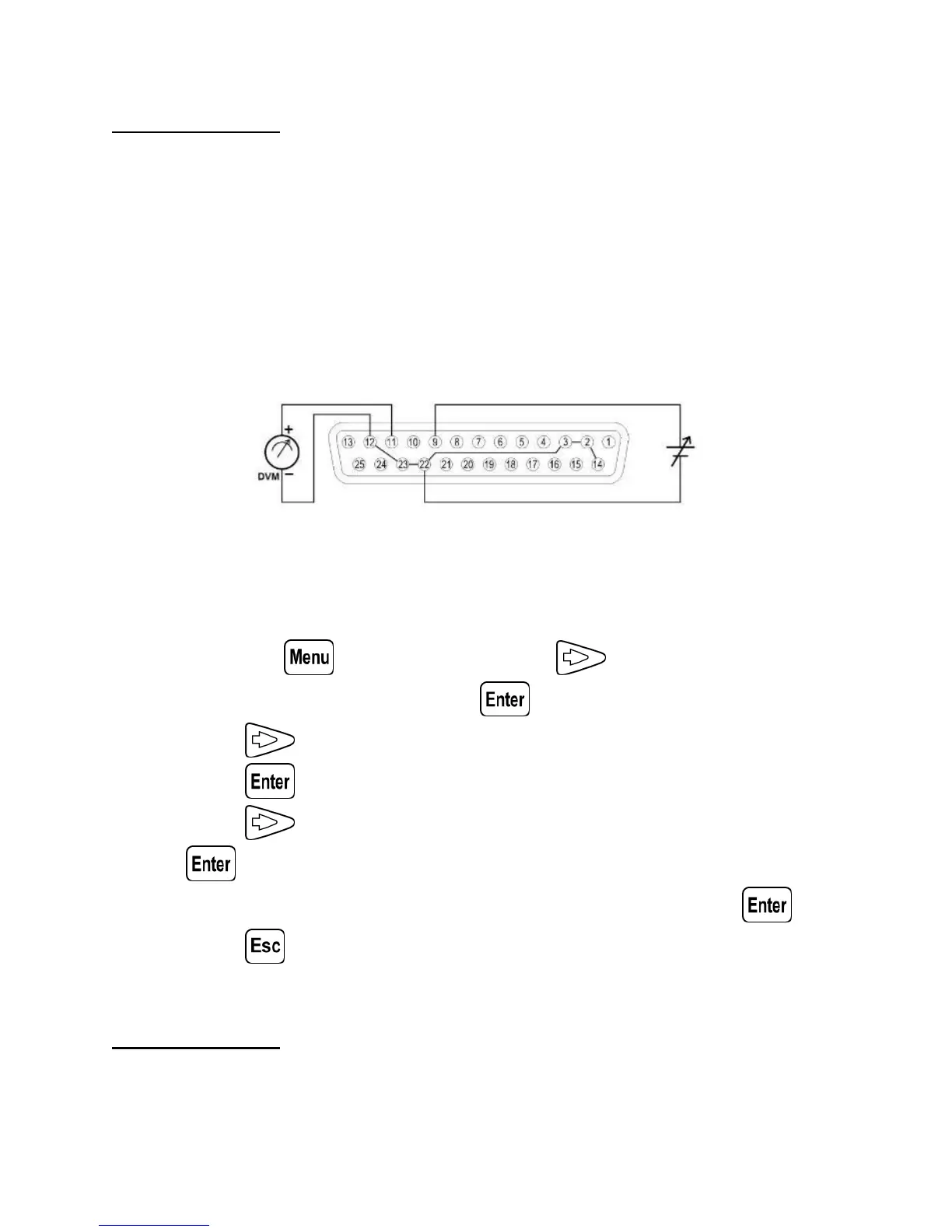

Figure 3.8 - Analog Voltage Monitor Diagram
Follow the steps below to configure the voltage program.
1. Press the button and press the button one time until
CONFIG is blinking and press .
2. Press button three times until EXTCTRL is blinking and
press .
3. Press button four times to select MON RNG and Press
.
4. Now use the rotary knob to select 5V or 10V and press .
5. Press several times to exit the menu setting.
Current Monitor
This function is able to monitor the voltage output using Pin 24 and one
