49
6. Now use the rotary knob to select between 10V/10K or 5V/5K
and press .
7. Press several times to exit the menu setting.
Voltage Mode
Under voltage mode, the user may control the full scale current output
value through Pin 10, by inputting a voltage level of 0-5V (0-5 V / 0-5 kΩ
mode) or 0-10V (0-10 V / 0-10 kΩ mode) as shown below.

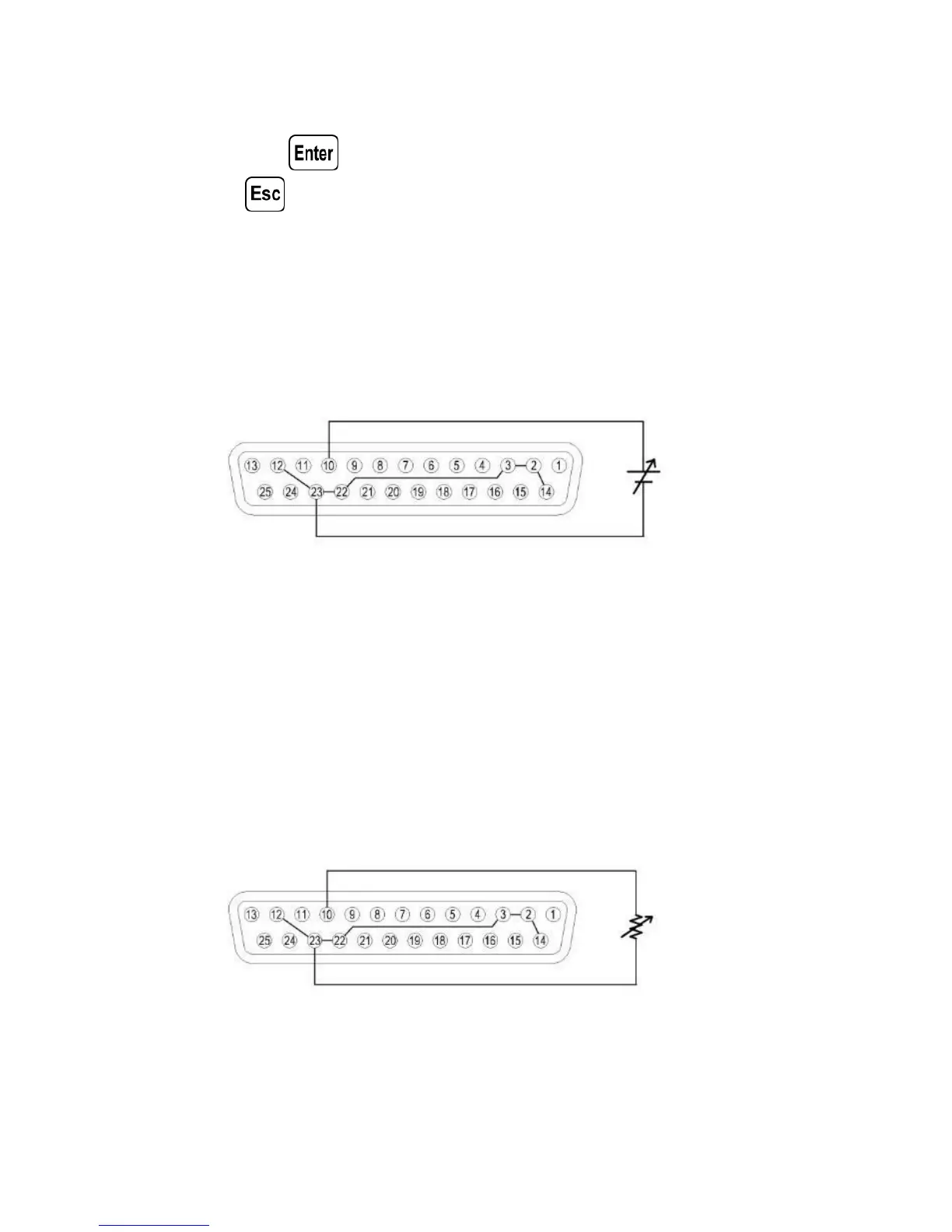

Figure 3.6 - Analog Current Programming Diagram (Voltage Mode)
Resistor Mode
Under resistor mode, the user may control the full scale current output
value by connecting a resistance value of 0-5 kΩ (0-5 V / 0-5 kΩ mode)
or 0-10 kΩ (0-10 V / 0-10 kΩ mode) between Pin 10 and Pin 23 as
shown below.
Figure 3.7 - Analog Current Programming Diagram (Resistor Mode)
