APPENDIX B: RACK MOUNT OPTIONS
129
Appendix B: Rack Mount Options
The ServSwitch™ DKM can be mounted into a 19“/2U rack space using mounting plates
(included).
ServSwitch™ DKM Extenders can be mounted into 19“ Racks using Rackmount Kits. Two
types of Rackmount Kits are available – for Single-Head and for Dual-Head Devices.
Mounting Instruction Rack Mount Kit ACS1009A-RMK
Using the rack mount kit ACS1009A-RMK, up to 4 devices of the device size
103x143x29mm (Single-Head devices) can be mounted into a 19“-server rack. The rack
mount kit requires 1U rack space. Blind plates (in the list of parts delivered) allow covering
unused device positions.

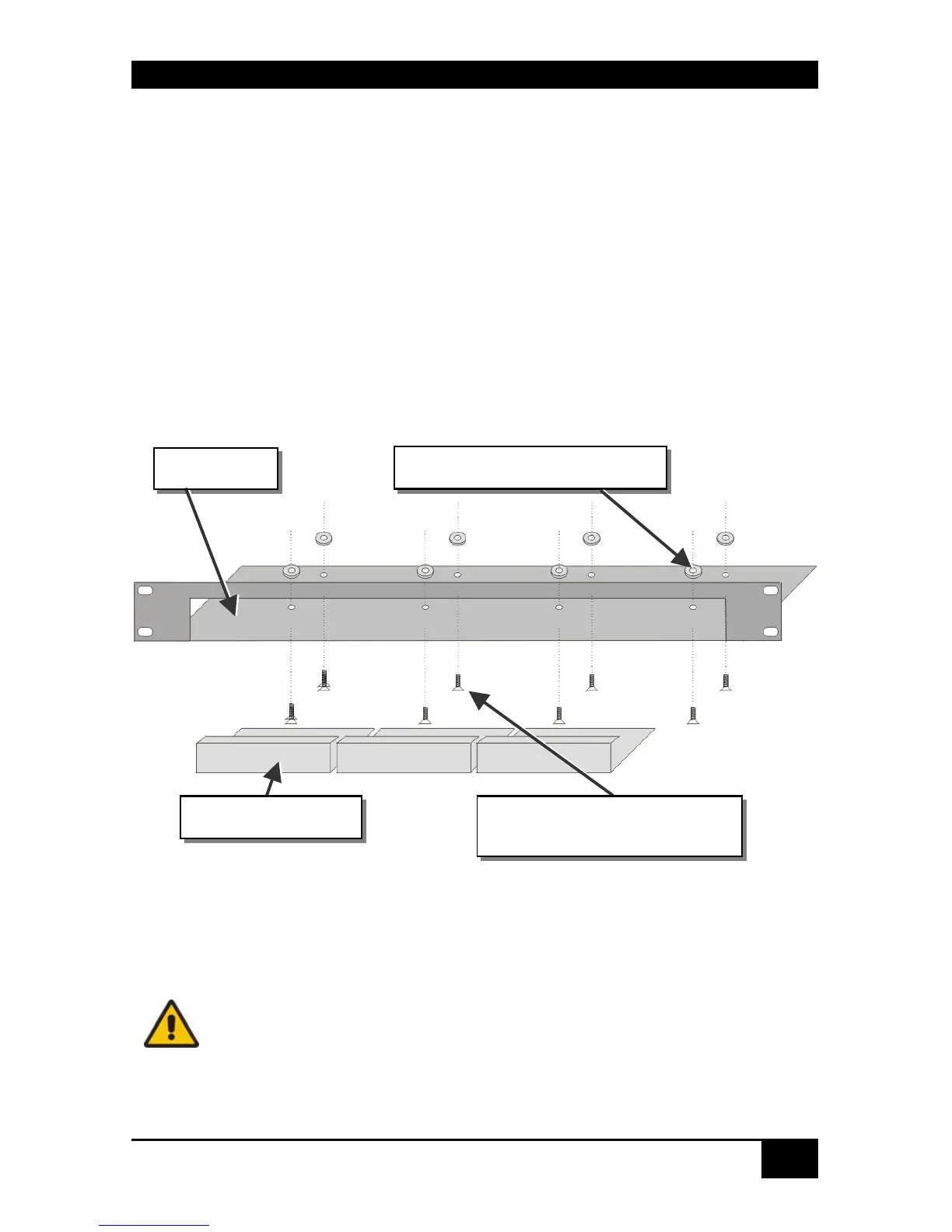

Rack mount kit ACS1009A-RMK – List of parts delivered:
Mounting instruction:
 Align the holes on the base plate with the vacant screw holes on the base of the device.
 Fasten the base of the unit to the plate of the mounting kit
Only use the supplied, short screws, to prevent damages on
the PCB’s
 Close the remaining gaps with blanking plates.
base plate
8 pieces spacer – M2,5x2
3 pieces blind plate 8 pieces M2.5x5 Philips type
countersunk screws
