APPENDIX B: RACK MOUNT OPTIONS
131
Mounting Instruction Rack Mount Kit ACS2209A-RMK
Using the rack mount kit ACS2209A-RMK, up to 4 devices of the device size
103x143x42mm (Dual-Head devices) can be mounted into a 19“- server rack. The rack
mount kit requires 1U rack space. Blind plates (in the list of parts delivered) allow covering
unused device positions.

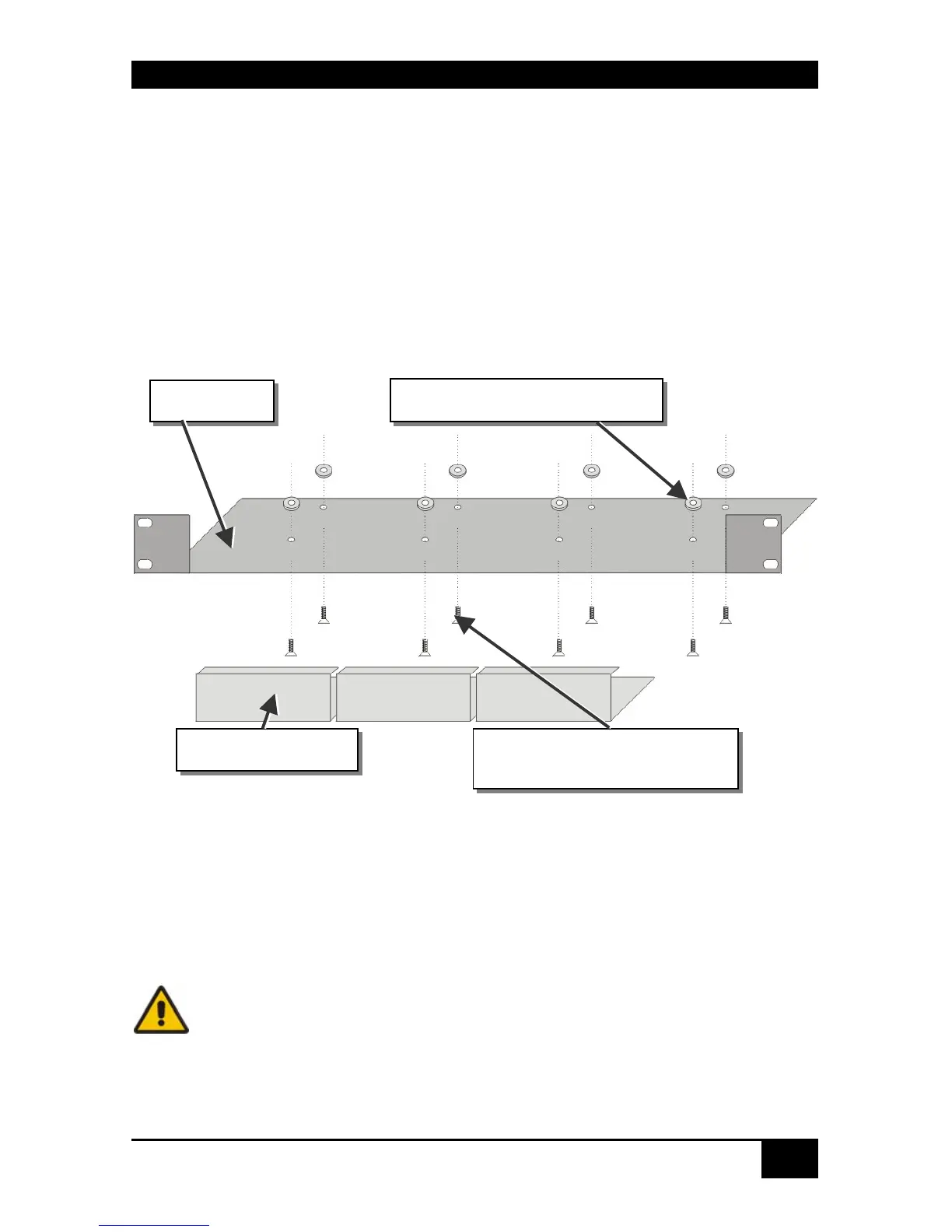

Rack mount kit ACS2209A-RMK – List of parts delivered:
Mounting instruction:
Align the holes on the base plate with the vacant screw holes on the base of the device.
Fasten the base of the unit to the plate of the mounting kit
Only use the supplied short screws to prevent damage to the
PCBs
Close the remaining gaps with blanking plates.
base plate
8 pieces spacer – M2,5x2
3 pieces blind plate 8 pieces M2,5x5 Philips type
countersunk screws
