ServSwitch™ DKM
170

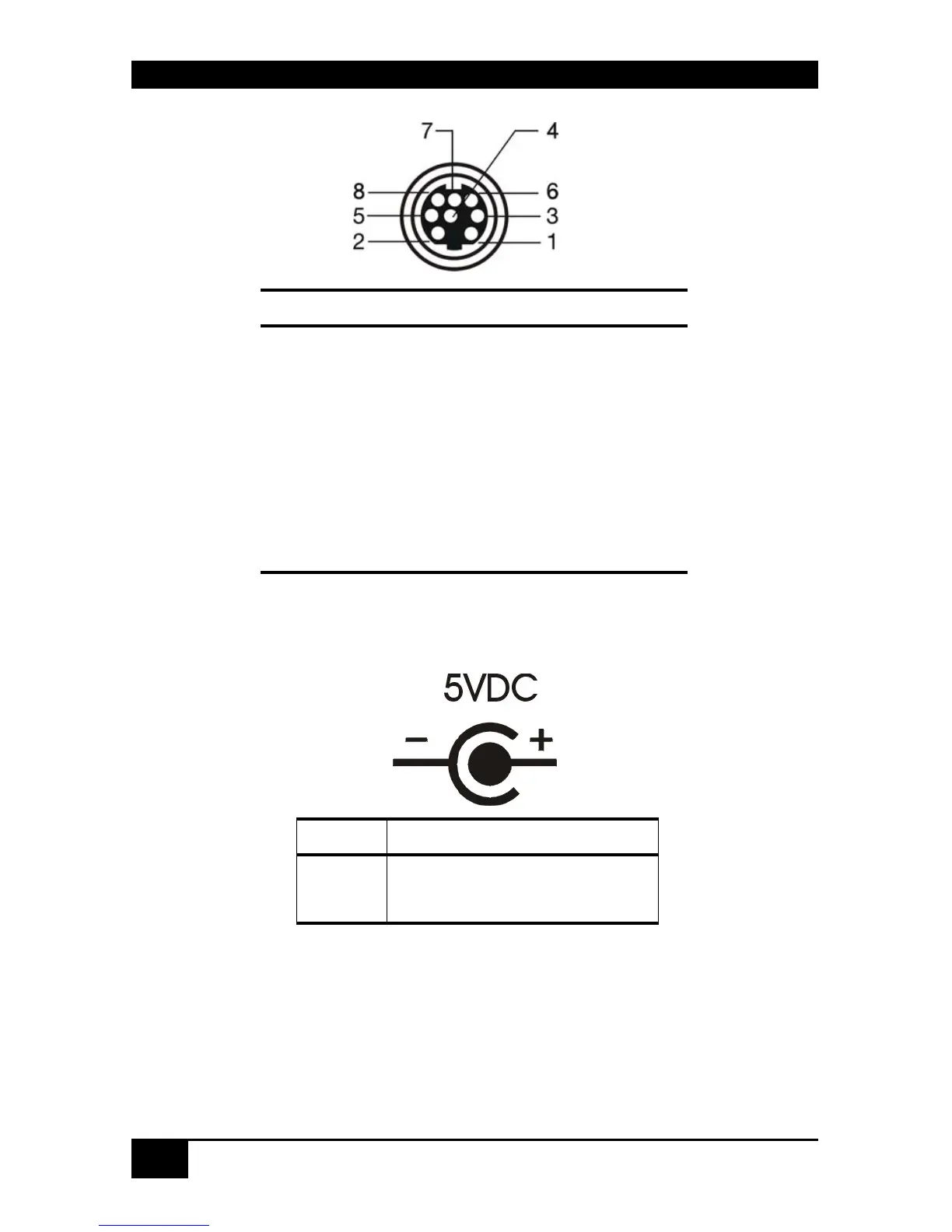

Audio/serial Socket Audio/RS232 at Dual-Head Local Unit
Pin
1 AUDIO GND
2 RS232 GND
3 AUDIO OUT RIGHT CHANEL
4 AUDIO OUT LEFT CHANEL
5 RS232 RxD
6 AUDIO IN RIGHT CHANEL
7 AUDIO IN LEFT CHANEL
8 RS232 TxD
Power Supply
Pin Signal
Inner +5V
Outer GND
