Black Box ServSwitch User Manual

APPENDIX I: SERVSWITCH™ MEDIA EXTENDER
169

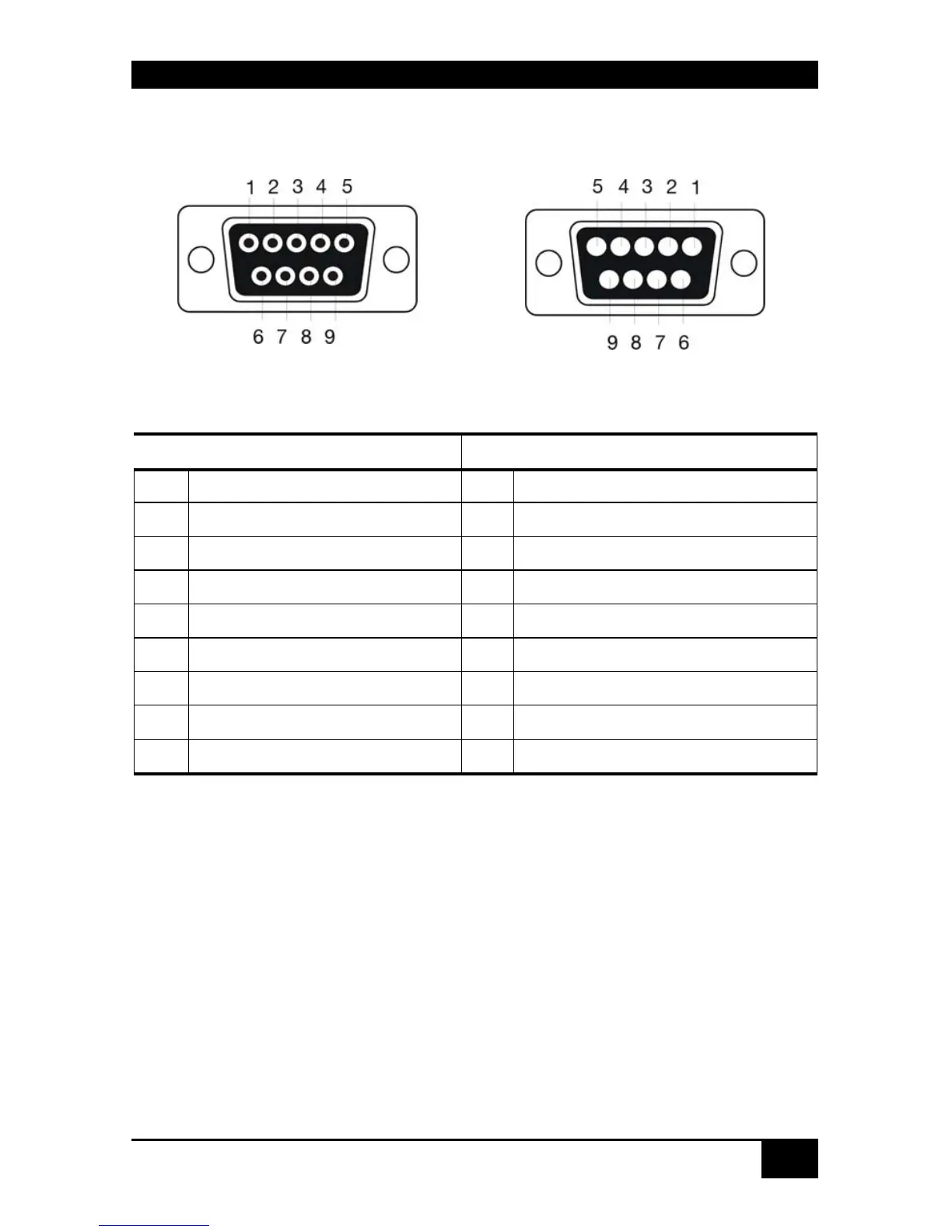

Serial Interface (Single-Head Devices only)
(audio-/ serial option)
Connector (Remote Unit) Socket (Local Unit)
Pin Signal Pin Signal
1
n.c.
1
n.c.
2
RxD
2
RxD
3
TxD
3
TxD
4
DTR
4
DTR
5
GND
5
GND
6
DSR
6
DSR
7
RTS
7
RTS
8
CTS
8
CTS
9
n.c
9
n.c
