GDI 200 Pump Distribution (Rear Mount)
Parts (Bundle 20200119)
BOM ID Qty Item No Description
1 1 GDI 200, REAR MOUNT, 6” X 6” FRAME
2 1 CCP2755 HEAT EXCHANGER ASSEMBLY, GDI 200A
3 1 CCP2756 GDI 200A, PUMP AND VALVE ASSEMBLY
4 1 CP25009 HOSE, EVA, 3/8” 8 FT LONG
5 2 CP2515 HOSE, EVA, 3/4”
6 1 CP2593 HOSE , NH3, 1-1/4” NPT X 64” HIGH PRESSURE CRIMP
7 1 CP2594 HOSE , NH3, 1-1/4” NPT X 84” HIGH PRESSURE CRIMP
8 2 AM2636 IMPELLICONE 18 PORT, WITH MOUNT & HARDWARE, 6” X 6”
9 1 AAM3514 SUPERSHOOTER III/ SQUIBB COUPLER/ BODYGUARD III
10 2 CP2521 HOSE, EVA, 1” REINFORCED
11 1 CP2593 HOSE , NH3, 1-1/4” NPT X 64” HIGH PRESSURE CRIMP
12 2 CP5043 KNIFE VAPOR TUBE 3/4’’ HOSE, WELD-ON
NOTE: Typical Layout,
Hose lengths and component
locations will vary by machine.
NOTE: The following sub-assemblies in this manual are specic
to Bundle 20200119 for 6” X 6” frame rear mounts. Other bundles are
a v a i l a b l e f o r y o u r s p e c i c f r a m e s i z e w i t h a m a j o r i t y o f p a r t s i n c o m m o n .
20200090 for 6” X 6” mid-frame mount.
20200070 for 4” X 6” front mount. Alternate part numbers will be listed where
necessary.

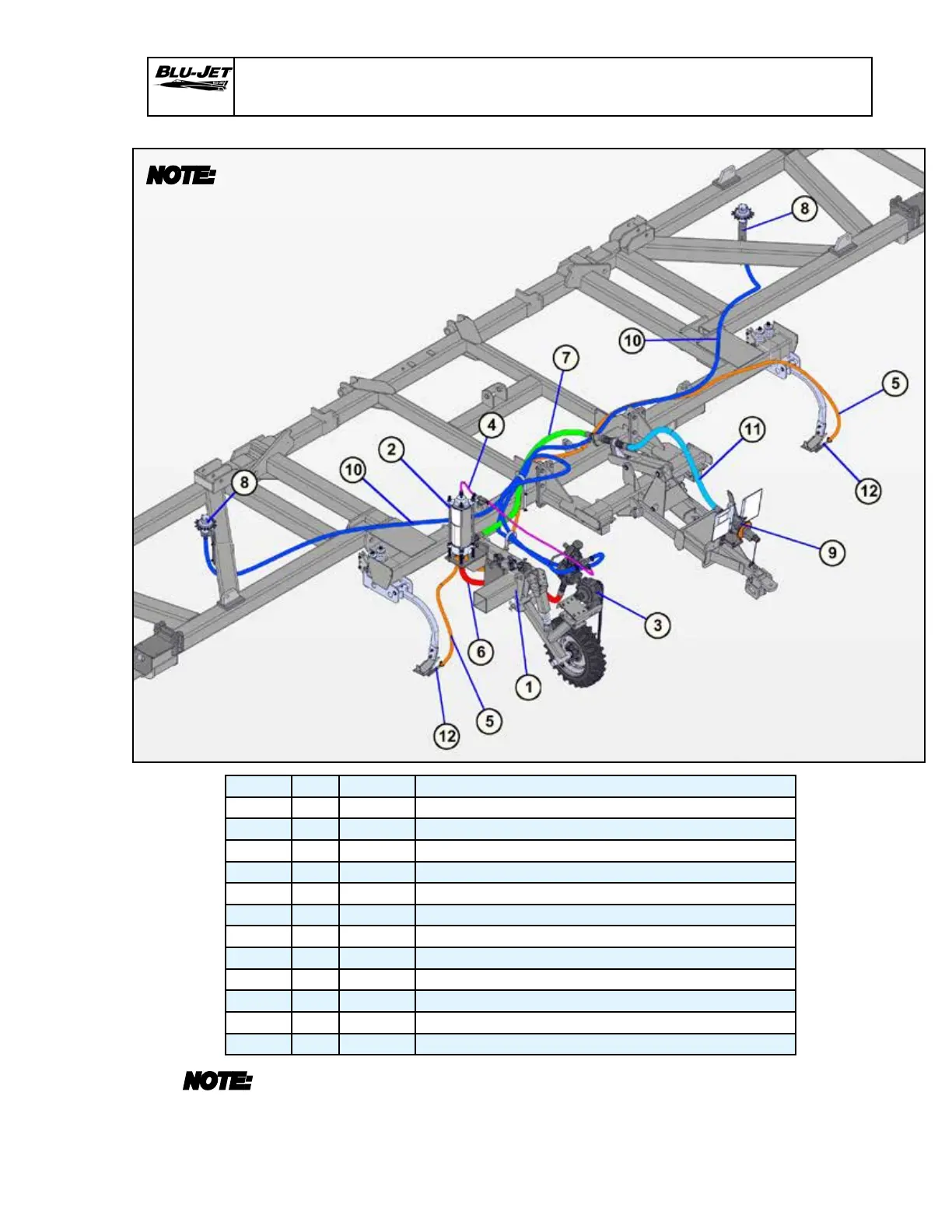

Generic Drawing
GDI placement will
depend on row spacing.
To Next Page
