12.1.2 Control cabinet

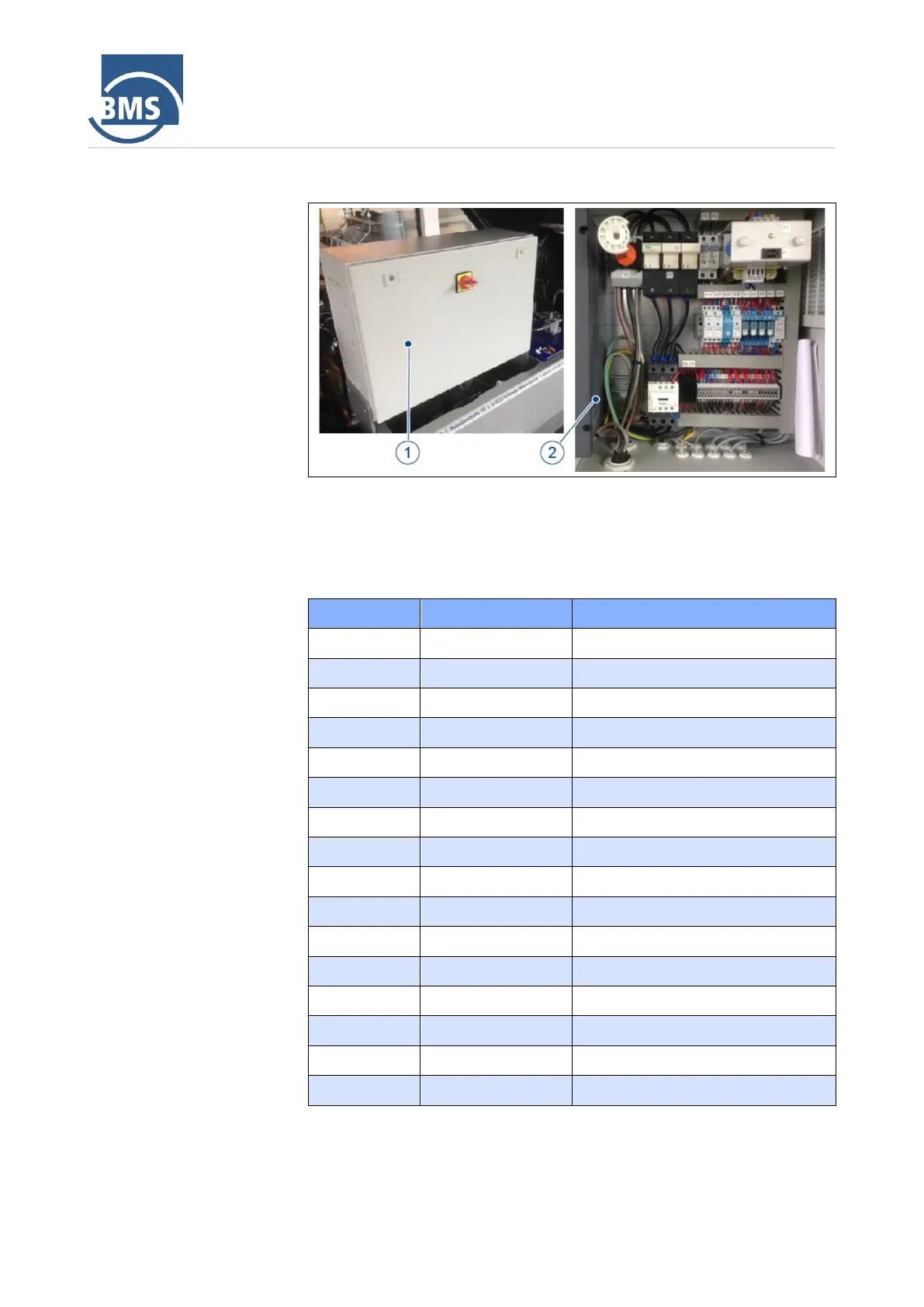

Figure 67: Control cabinet alpha
E32
and alpha
E63
1
Control cabinet
2
Interior view control cabinet
Equipment designation
Designation
Component
Allocation
Q1
Main switch
F1
Main fuse
F2
Fuse
Transformer
F3
Fuse
Transformer
F4
Fuse
Transformer 12 V DC
F5
Fuse
Start
F6
Fuse
Lubrication system
F7
Fuse
Headlights
F8
Fuse
Motor control
F9
Fuse
Machine control
KM1
Main contactor
K1
Relay
Vessel safety switch
K2
Relay
Compressor motor start
K3
Relay
Safety chain
K4
Relay
Sponsorship
K5
Relay
Release radio etc.
