BMS alpha CR - Multifunction Display

4
Layout and function
4.6
Operating elements
52
4.6.2 Multifunction display

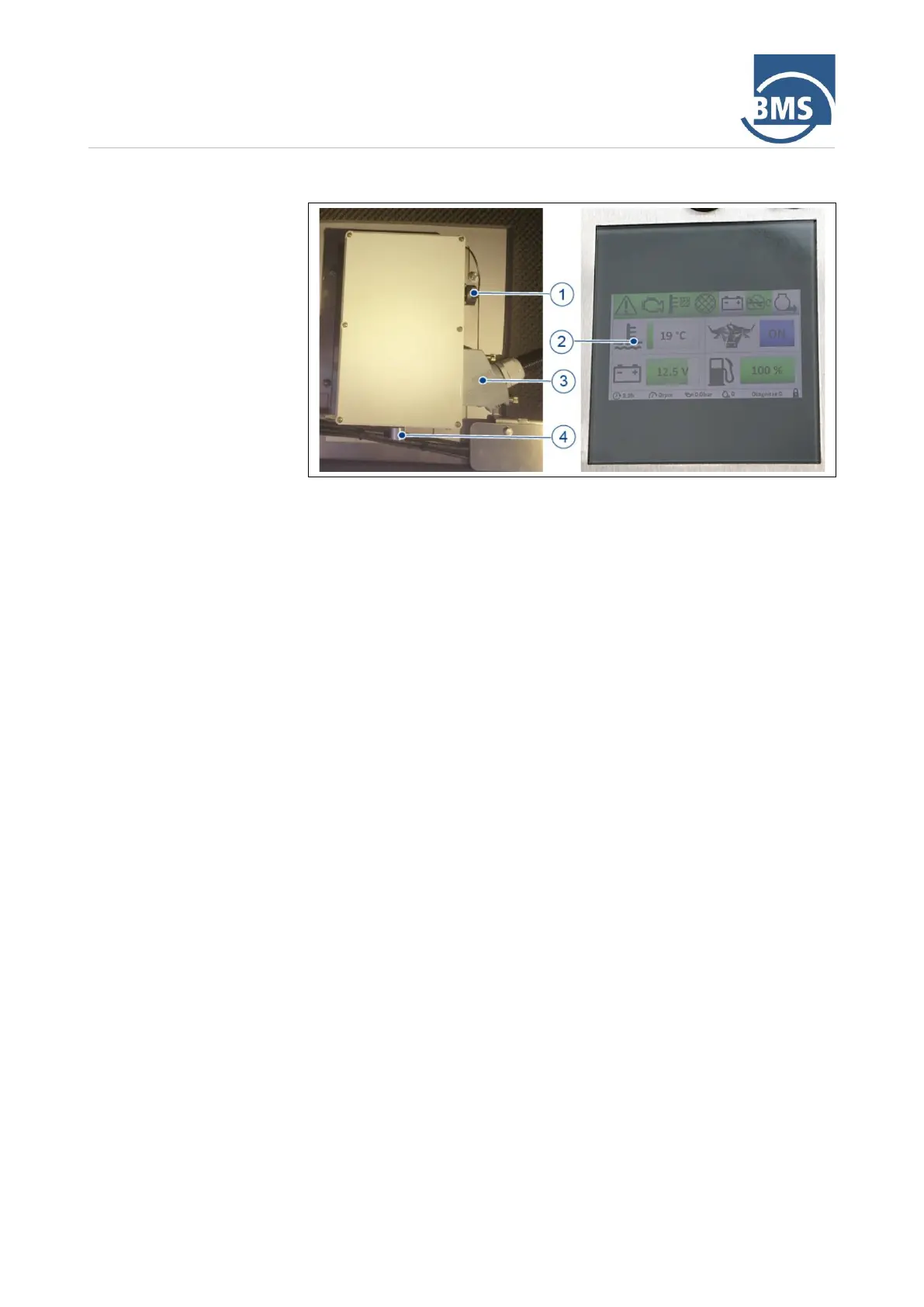

Figure 17: Rear side multifunction display
1
Deutz diagnostic interface
2
Multifunction display
3
Machine wiring harness
connection
4
Selector switch
Deutz diagnostic interface (1)
The Deutz readout device is connected to this diagnostic interface.
Selector switch
The selector switch is used to navigate within and between the individual
menus of the multifunction display. By pressing the selector switch, you can
select buttons and acknowledge inputs.
