4.6 Operating elements
4.6.1 Machine

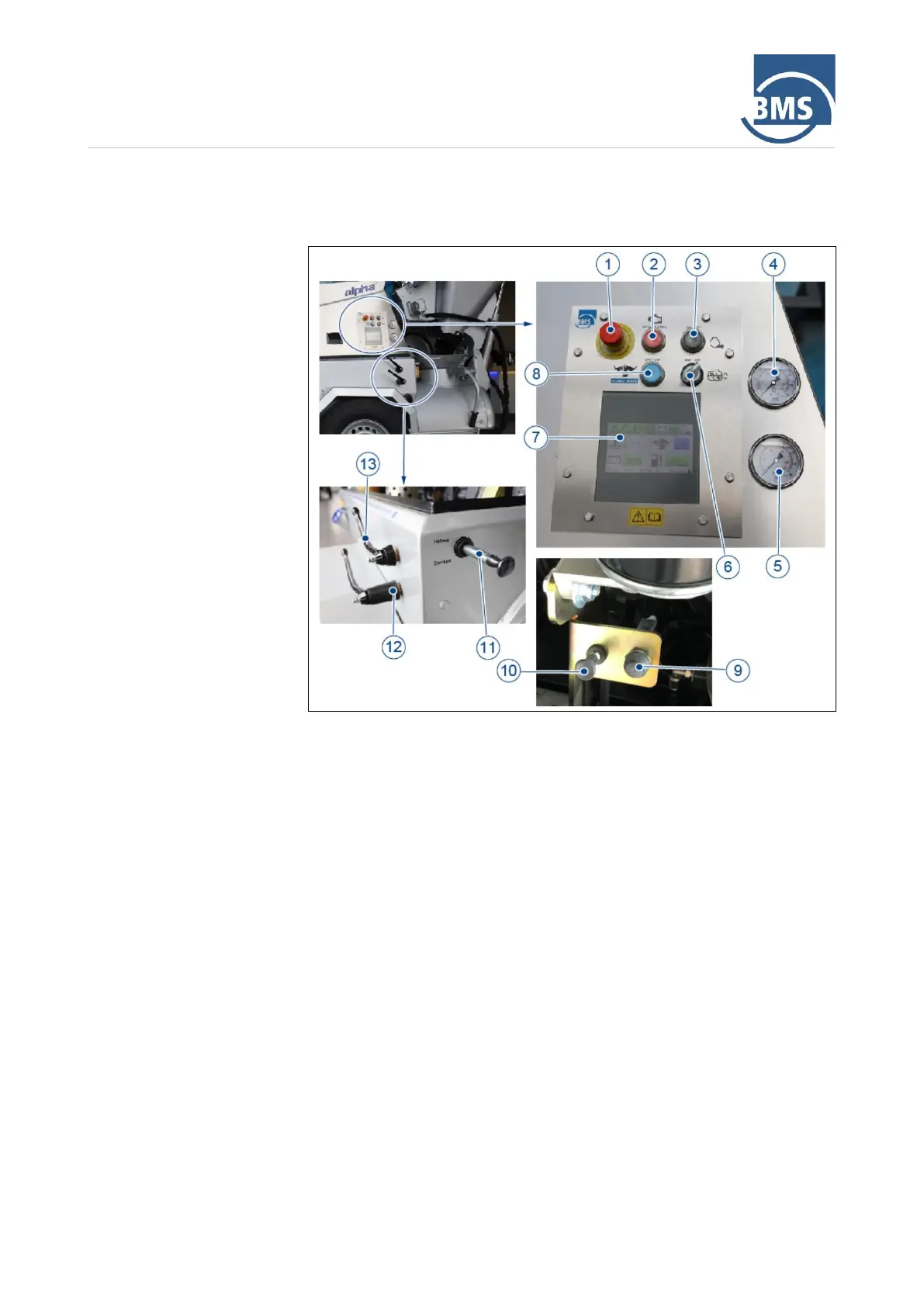

Figure 16: Operating elements
1
Emergency stop button
2
Start/stop button motor
3
On/Off button delivery
4
Pressure gauge compressor
pressure
5
Pressure gauge vessel
pressure
6
On/Off switch mixer shaft
7
Multifunction display
8
On/Off button power mode
9
Switch control on
10
Pull switch for work lamp
11
Lever raise/lower feeder
12
Lever lower air flow rate
13
Lever upper air flow rate
