7.7.1 Filling the mixing and delivery vessel
The material components are mixed together in the mixing and delivery
vessel. Fill the mixing and delivery vessel only when the mixing unit is
switched on. The maximum filling height is approx. 20 mm below the upper
apex of the mixing and delivery vessel. When mixing with a full mixing and
delivery vessel, the material is lifted into the dome approx. 50 mm.
Depending on the design, the mixing and delivery vessel is filled directly
(standard), via the feeder (version with feeder) or via the scraper (version
feeder with scraper).
Standard

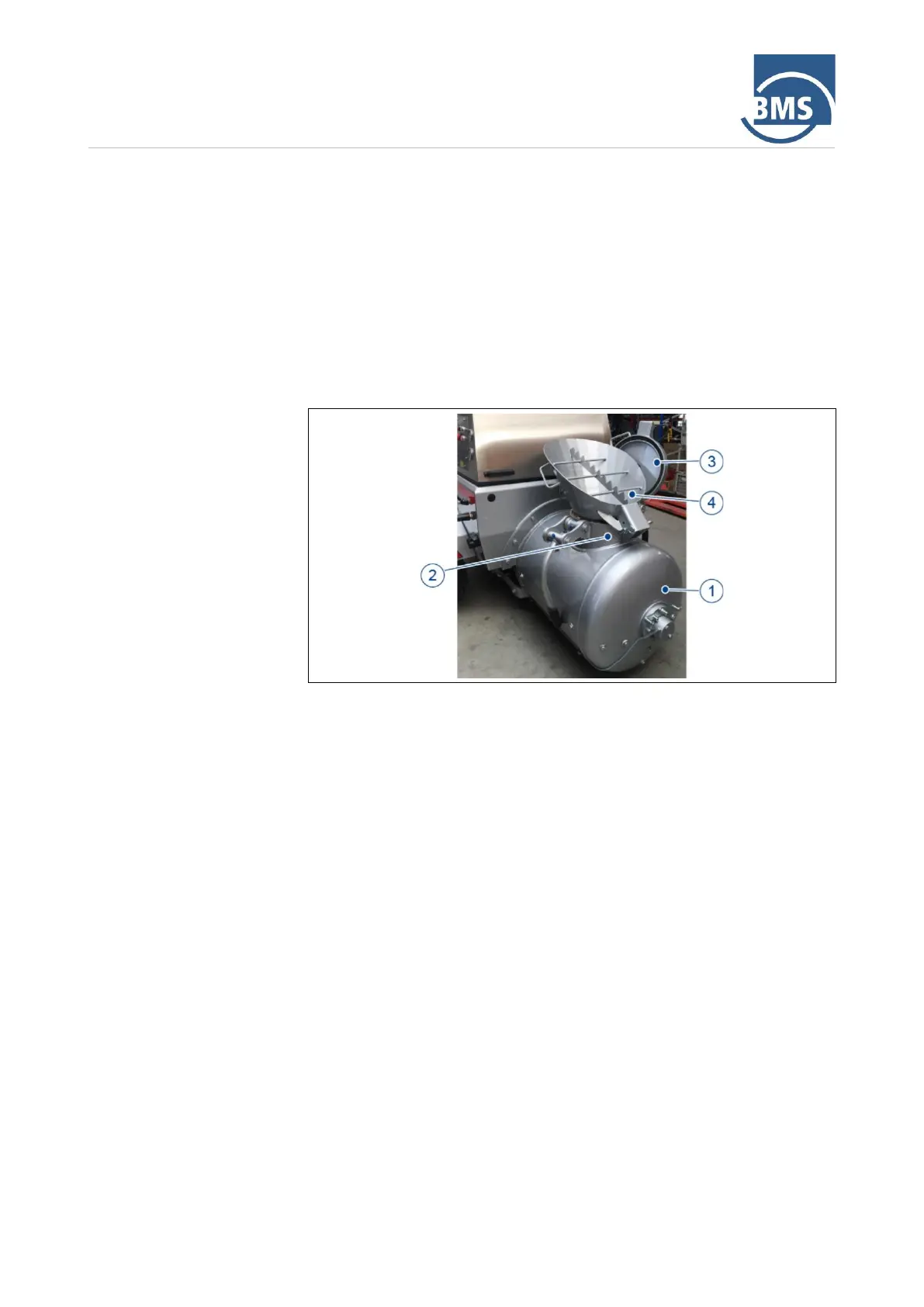

Figure 49: Filling the mixing and delivery vessel (standard)
1. Open the cover (3) of the filling dome (2) as far as it will go.
2. Fold the hopper (4) onto the filling dome (2) of the mixing and delivery
vessel (1).
➢ The toothing of the hopper (4) is used to easily tear open bagged
material.
3. Switch on the mixing unit using the two-position switch.
4. Fill the mixing and delivery vessel (1) approx. halfway with material
(sand, gravel, etc.).
5. Add the required quantity of binder and aggregates according to the
finished product requirement via the hopper.
6. Add the required water quantity to the mixing and delivery vessel (1).
