BMS alpha CR - 12.1.3 Operating Elements

12
Optional versions
12.1
alpha E32 and alpha E63
172
Designation
Component
Allocation
K1T
Time relay
Release machine control
K2T
Time relay
Start-up time pressure shutdown
K3T
Time relay
Mixing time
K4T
Time relay
Lubrication system
12.1.3 Operating elements

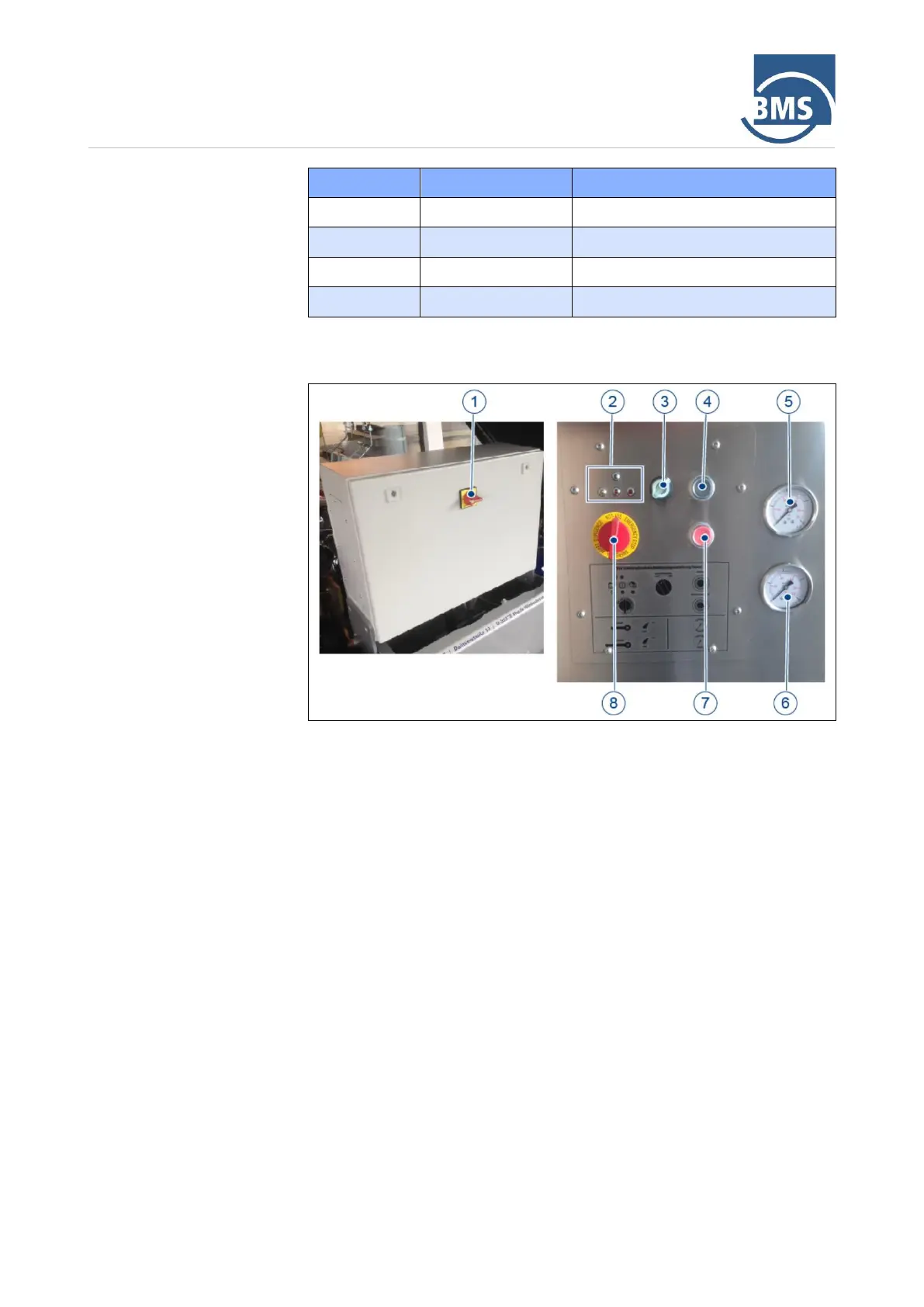

Figure 68: Operating elements alpha
E32
and alpha
E63
1
Main switch
2
LED display
3
On/Off switch mixing unit
4
Button Compressor on
5
Pressure gauge compressor
pressure
6
Pressure gauge vessel
pressure
7
Button Compressor off
8
Emergency stop button
