BMS alpha CR - Trailer Electrical Connection and System Checks

Driving operation
6
Coupling
6.4
71
19. Insert the plug of the rear light unit into the socket (10) underneath the
levers for the delivery of the upper and lower air. Make sure that the
plug is secured by the socket flap.

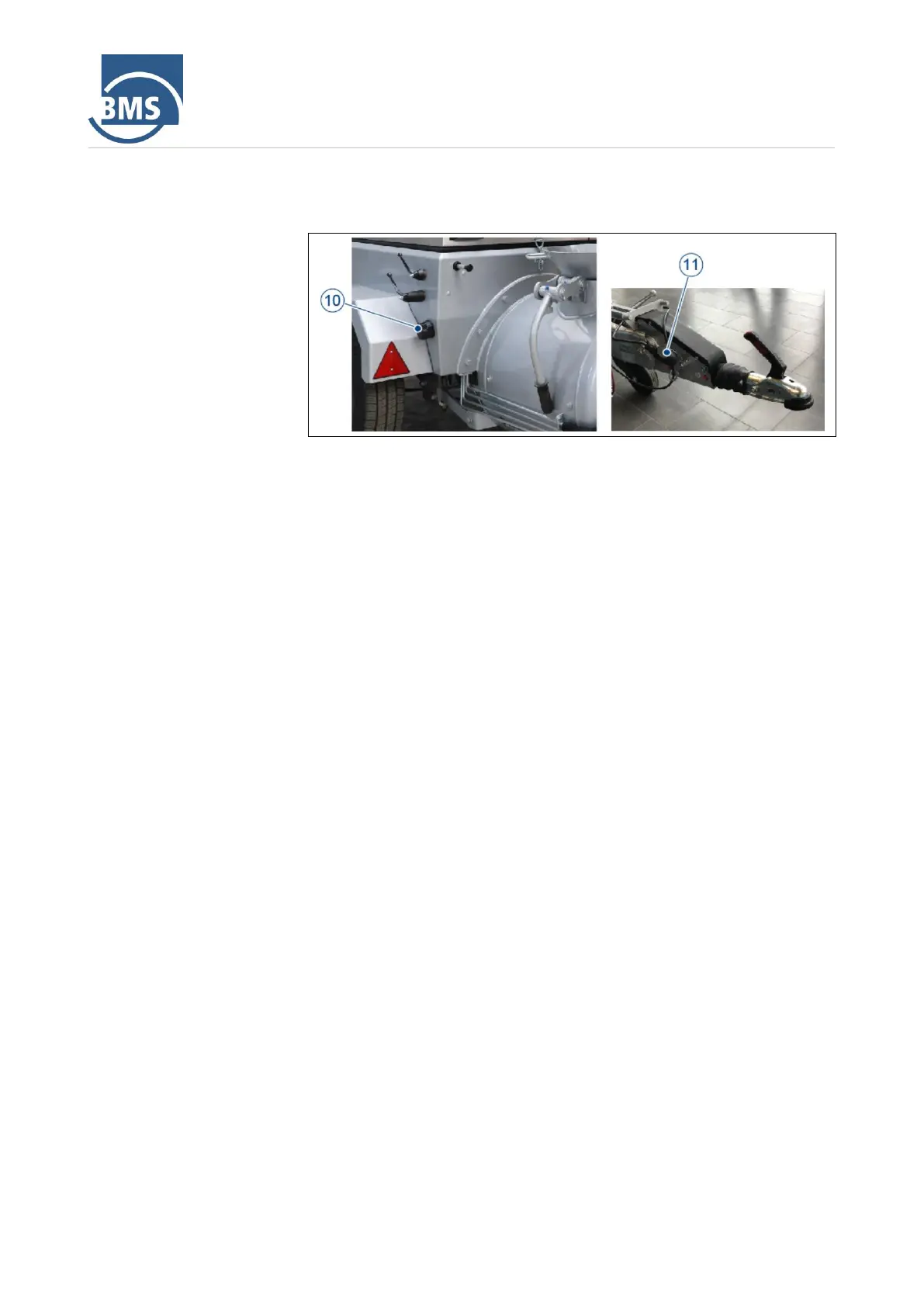

Figure 31: Electrical connection
➢ Pay attention to the lighting voltage 12 V / 24 V.
20. Connect the towing vehicle electrically to the trailer. To do this, insert
the plug (11) from the trailer into the socket on the towing vehicle.
21. Check the function of the lighting and brake system of the trailer.
