787 Flight Crew Operations Manual
DO NOT USE FOR FLIGHT
Airplane General, Emergency
Equipment, Doors, Windows -
Controls and Indicators
Copyright © The Boeing Company. See title page for details.
D615Z003-TBC 1.30.5

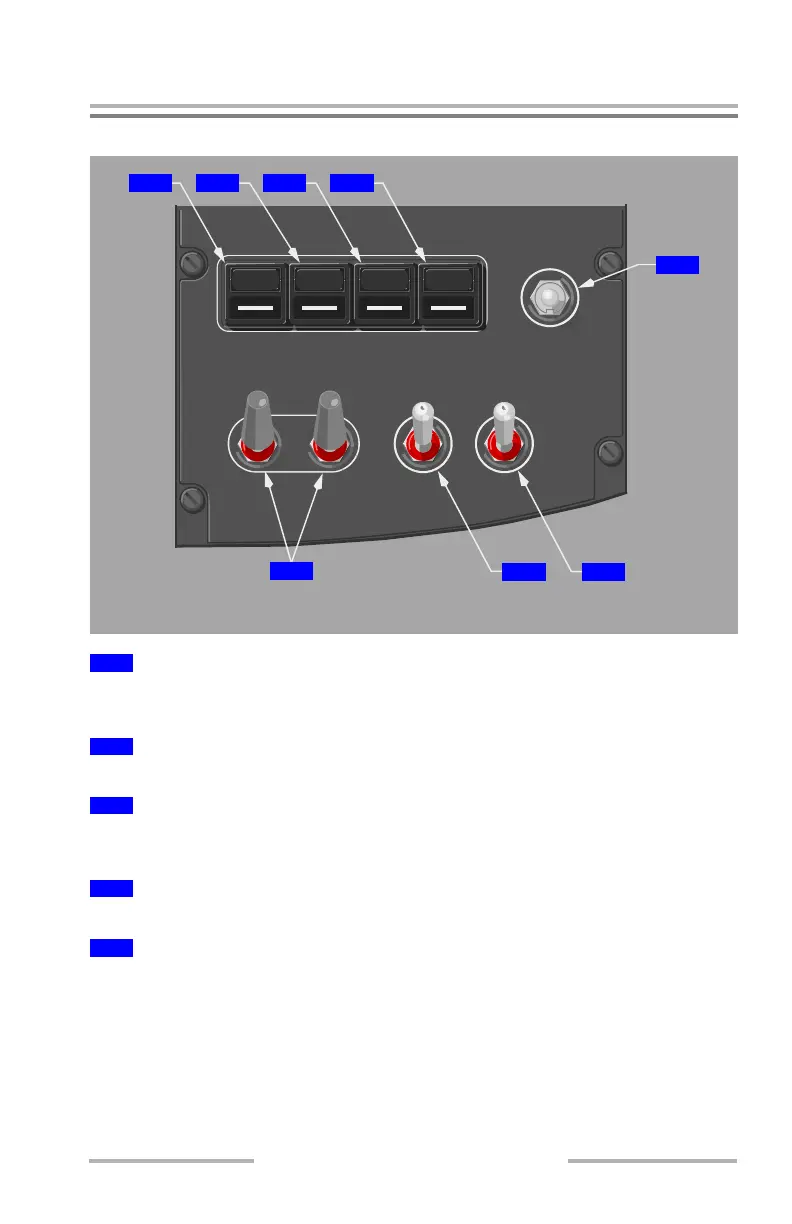

Lighting Panel
ON – the red anticollision beacon lights on the top and bottom of the fuselage
operate.
ON – the red, green, and white navigation position lights are illuminated.
ON – the stabilizer mounted logo lights illuminate the airline logo on the vertical
tail surface.
ON – the wing leading edge illumination lights are illuminated.
TEST (spring–loaded) –
1
BEACON Light Switch
2
Navigation (NAV) Light Switch
3
LOGO Light Switch
4
WING Light Switch
5
Indicator Lights (IND LTS) Switch
ON ON ON ON
OFF
ON
BEACON NAV LOGO WING
IND LTS
TEST
BRT
AUTO
RUNWAY TURNOFF
TAXI STROBE
LOFF
OFF
R
ON
ON
OVERHEAD PANEL
1 2 3 4
5
87
6
February 15, 2010
