787 Flight Crew Operations Manual
DO NOT USE FOR FLIGHT
Flight Instruments, Displays -
Controls and Indicators
Copyright © The Boeing Company. See title page for details.
10.10.2 D615Z003-TBC
(Refer to PFD and HUD Flight Mode Annunciations (FMAs)
in Chapter 4,
Section 10, for additional information.)
Displays ADRS altitude and other altitude–related information.
Displays ADRS vertical speed and other vertical speed information.
Displays current IRS heading, track and other heading information.
Displays the flight plan with associated information (Refer to ND Symbology
in
Chapter 10, Section 40, for additional information.).

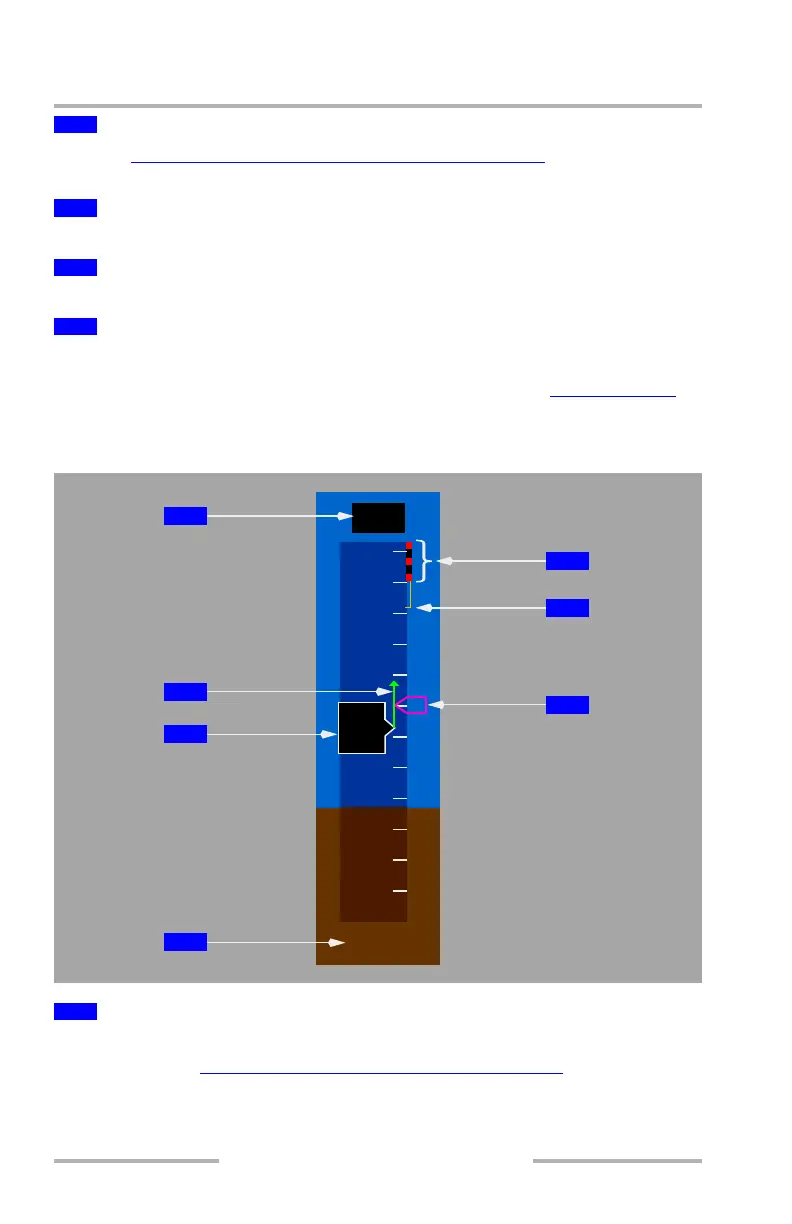

PFD Airspeed Indications
Displays the airspeed/Mach selected in the mode control panel MCP IAS/MACH
window (Refer to Autopilot Flight Director IAS/Mach Controls
in Chapter 4,
Section 10, for additional information.).
4
Autopilot, Flight Director System Status
5
Altitude Indications
6
Vertical Speed Indication
7
Mini-map
1
Selected Speed
2
3
4
24
220
200
260
280
300
250
.595
1
2
3
4
5
6
7
