787 Flight Crew Operations Manual
DO NOT USE FOR FLIGHT
Flight Instruments, Displays -
Head-Up Display System -
Displays
Copyright © The Boeing Company. See title page for details.
10.12.10 D615Z003-TBC

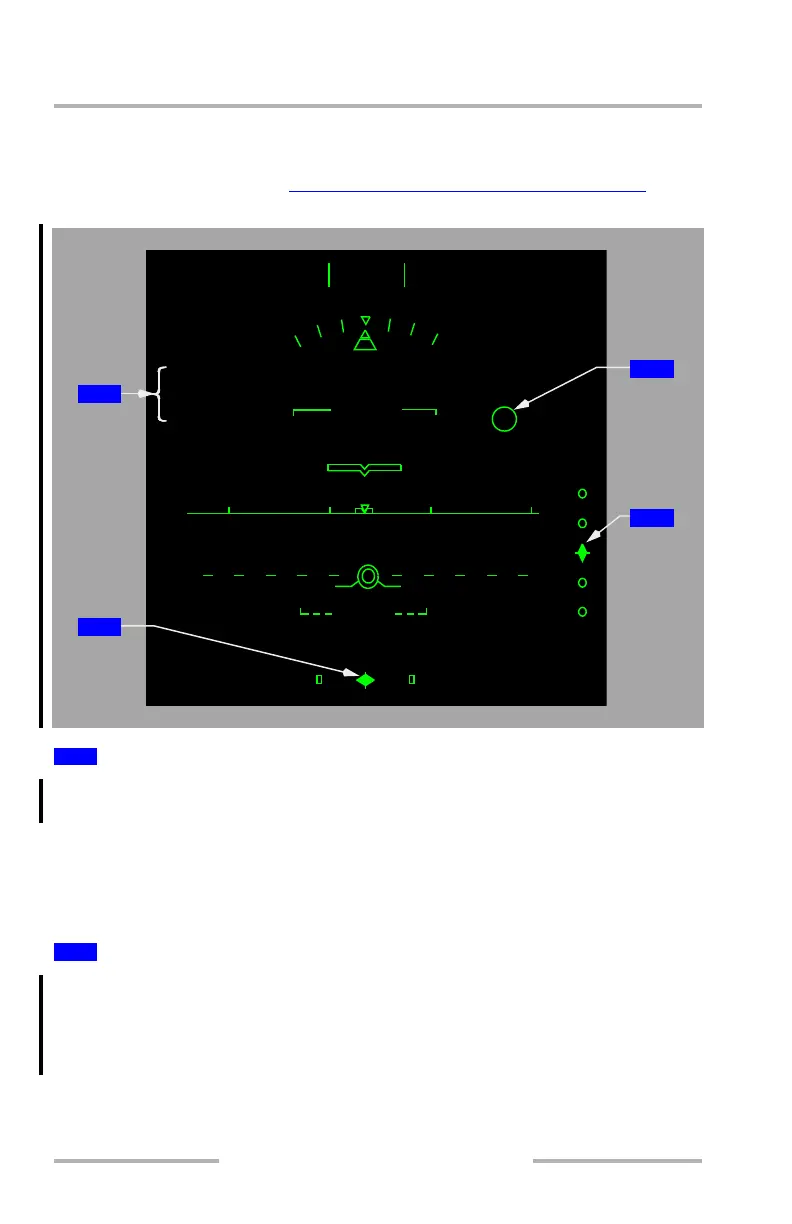

HUD Instrument Landing System Indications
The following information is primarily intended to show any differences between
the HUD and PFD. (Refer to PFD Instrument Landing System Indications
in
Chapter 10, Section 10, for additional information.).
Displays the selected ILS/GLS identifier or frequency, approach front course, and
ILS/GLS DME distance, and source annunciation.
If the tuned ILS/GLS frequencies disagree, the frequency displayed has a
horizontal line through it.
If the approach courses in the ILS/GLS receivers disagree, the course displayed
has a horizontal line through it.
The pointer indicates the localizer relative to the airplane position and is:
• unfilled diamond when it appears
• in view when the localizer signal is received
• filled diamond when within 2 1/2 dots from the center
1
Approach Reference
2
Localizer Pointer and Scale
SPD G/S
-5 -5
5
5
H052
ETUI/360°
DME 5.0
ILS
LAND 3
LOC
ROLLOUT FLARE
OM
-3.00
-3.00
05 06
1000
3
4
2
1
February 15, 2010
