787 Flight Crew Operations Manual
DO NOT USE FOR FLIGHT
Flight Instruments, Displays -
Head-Up Display System -
Displays
Copyright © The Boeing Company. See title page for details.
10.12.8 D615Z003-TBC

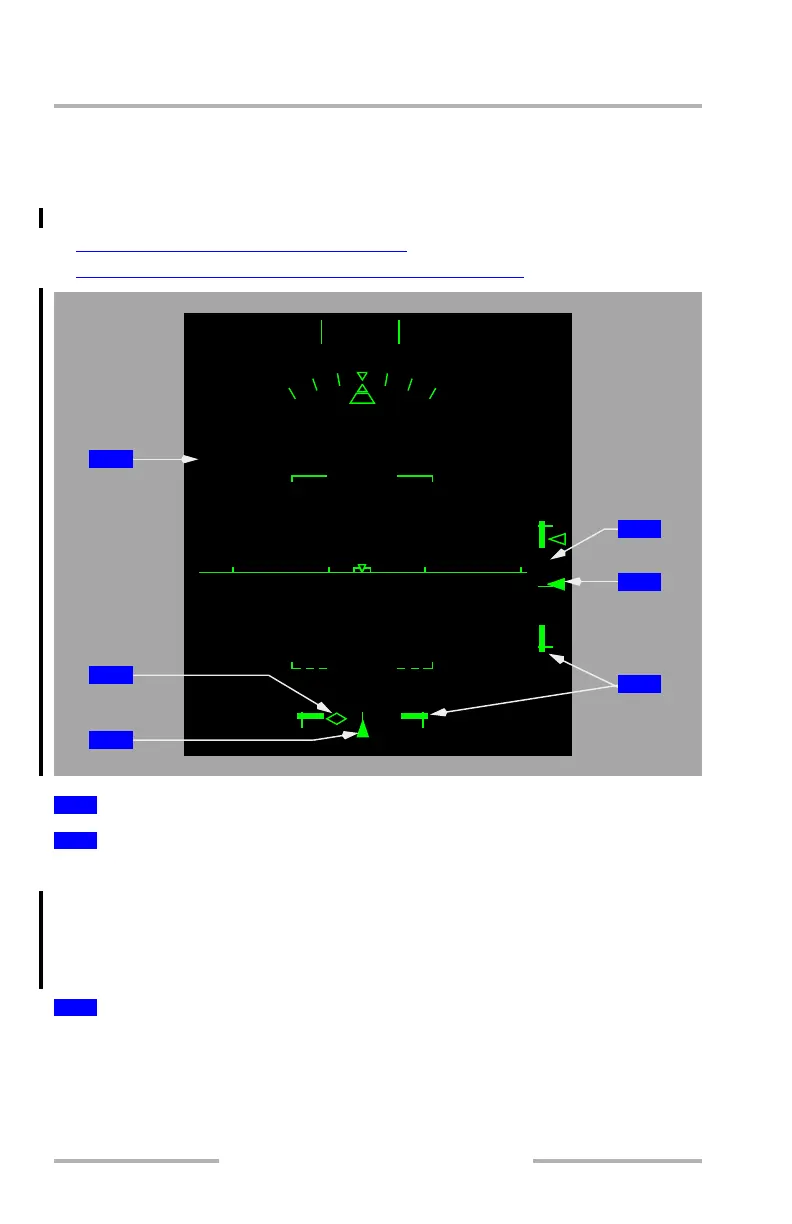

HUD Navigation Performance Indications
The following information is primarily intended to show differences between the
HUD and PFD.
For additional informationon on NPS and IAN, refer to:
• PFD Navigation Performance Indications
, Ch. 10, Sec. 10
• PFD Integrated Approach Navigation (IAN) Indications
, Ch. 10, Sec. 10
Indicates the selected approach path relative to the airplane position:
• unfilled diamond for LOC or G/S when not captured
• unfilled triangle for FAC or G/P when not captured
• filled diamond when LOC or G/S is captured (engaged FMA)
• filled triangle when FAC or G/P is captured (engaged FMA)
Indicates the selected lateral or vertical path relative to the airplane position:
• unfilled symbol when parked at deflection limit
• filled when not parked at deflection limit
• displayed on lateral deviation scale whenever the scale is displayed
1
Navigation Source Reference
2
Approach Deviation Pointer
3
NPS Deviation Pointer
05 06
-5 -5
55
H052
A/P
ILS/FMC
DME 12.4
IBFI/130
SPD LNAV VNAV
PTH
LOC
G/P
1
2
2
3
3
4
February 15, 2010
