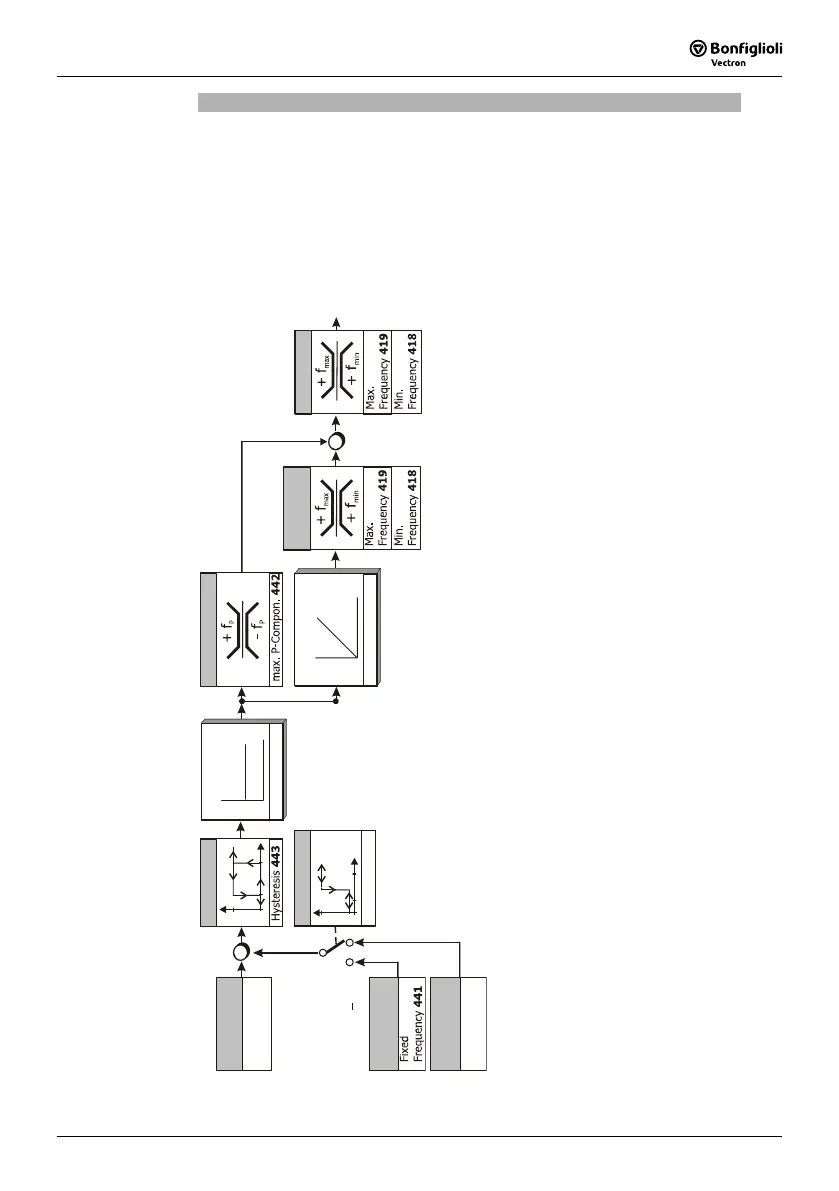

Operation mode filling level 2, parameter Operation Mode 440 = 3
This operation mode can be used, for example, for contents level control.
The minimum value monitoring prevents an acceleration of the drive if the actual
value is missing.
If the actual value is missing (< 0.5%) the output frequency is guided to the
Fixed
frequency
441. This is done using the set Deceleration (clockwise) 421.
If there is no control deviation (actual value =reference value) or if the control devia-
tion is negative (actual value>reference value), the output frequency is guided to
Minimum frequency 418. This is done using the set Deceleration (clockwise) 421.
The drive accelerates as soon as an actual value is present again or the control devia-
tion exceeds the positive
Hysteresis 443. The drive stops as soon as the the control
deviation falls below the negative
Hysteresis 443.
Minimum value
> 0.50%
Amplification
444
P
I
Integral Time
445
+
+
-
Max. P-ComponentDifference
1
0
Max. I-Component
Technology Controller
Act. Percentage Source
478
Ref. Percentage Channel Ref. Percentage Source
476
P. 4 7 8
0.50%
<
Fixed Frequency
Limitation
