bora X Pure - Appliance Description; Model and System Overview

Appliance description
EN
108 bora.com
4 Appliance description
u Observe all safety and warning information
(see"2Safety").
4.1 Model description
Model Long description
PUXA X Pure surface induction cooktop with
integrated cooktop extractor – exhaust air
PUXU X Pure surface induction cooktop with
integrated cooktop extractor – recirculation
PURA Pure induction cooktop with integrated
cooktop extractor – exhaust air
PURU Pure induction cooktop with integrated
cooktop extractor – recirculation
Tab.4.1
Model description

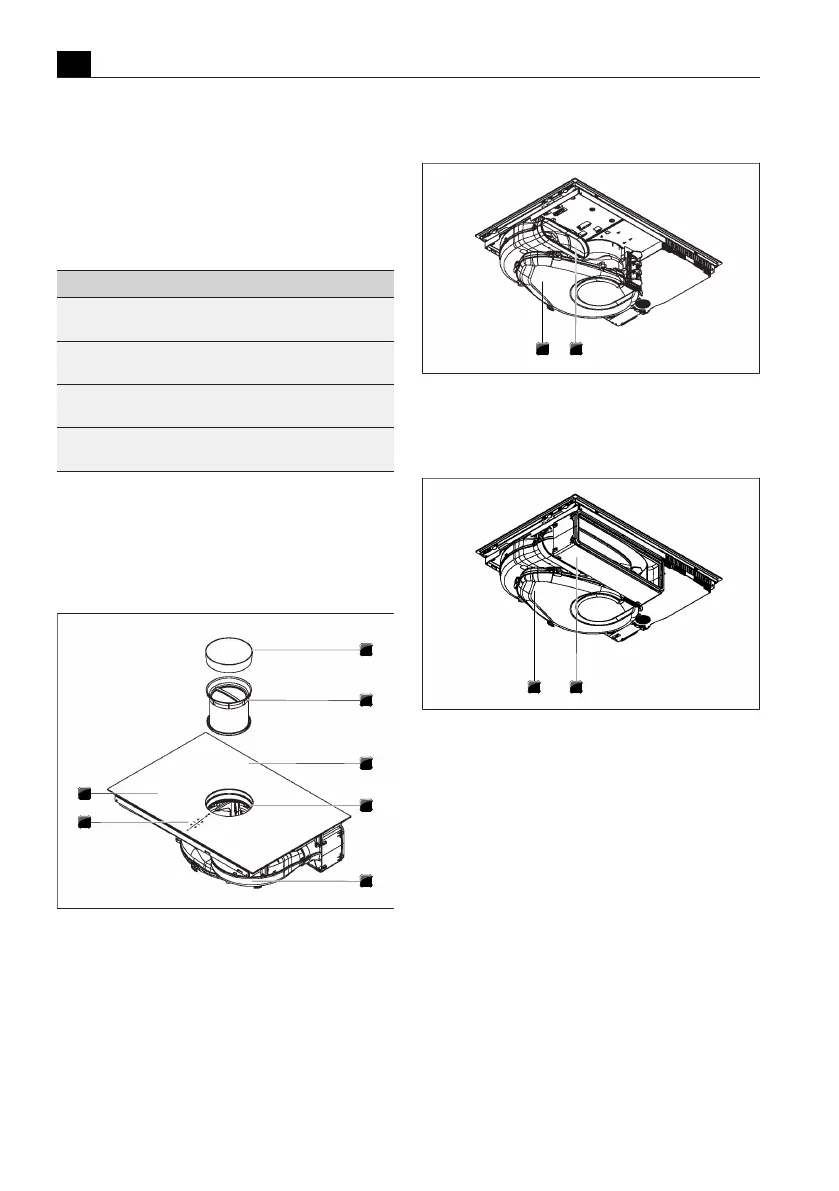

4.2 System description
4.2.1 Structure
1
2
3
4
5
6
7
Fig.4.1
Cooktop
[1]
Air inlet nozzle
[2]
Stainless steel grease filter
[3]
Cooktop
[4]
Inlet opening
[5]
Fans
[6]
Operating panel
[7]
Cooking zone (x 4)
12
Fig.4.2
Rear view of PUXA, PURA
[1]
Exhaust opening
[2]
Air guiding housing with housing base
12
Fig.4.3
Rear view of PUXU, PURU
[1]
Air purification box with telescopic pull-out
[2]
Air guiding housing with housing base
4.2.2 Operating panel
The cooktop extractor and cooktops are operated via a
central operating panel. The operating panel is fitted
with electronic sensor buttons and display panels. The
sensor buttons respond to finger contact (touch zones).
