9.7.8 Extending the telescopic pull-
out of the air purification box
If the depth of the worktop exceeds 675 mm in
installation variant A, the telescopic pull-out of the air
purification box must be extended using the accessory
PULBTA.

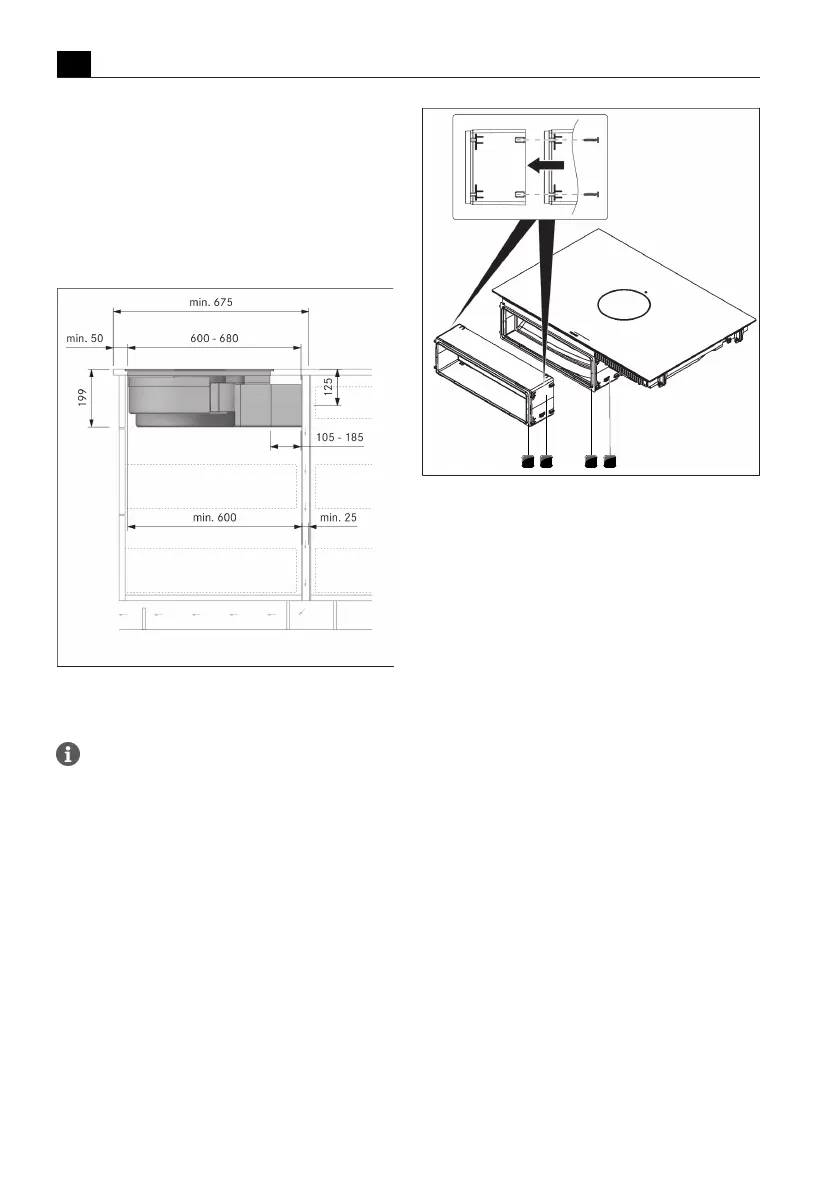

Fig.9.30
Installation dimensions for recirculation
installation variant A, depth of worktop
675 mm and over
The telescopic pull-out is used to connect the
duct to the back panel of the kitchen unit. This
can be used to flexibly bridge the gap between
the cooktop and the back panel of the kitchen
unit (max. 80 mm). If necessary, the telescopic
pull-out can be extended by a further 105 mm
using the extension PULBTA (available as an
accessory).
1234
Fig.9.31
Extending the telescopic pull-out
[1]
Air purification box with telescopic pull-out
[2]
Telescopic pull-out adhesive tape
[3]
Telescopic pull-out extension PULBTA
[4]
Adhesive tape for telescopic pull-out extension
PULBTA
u Remove the protective film from the adhesive tape
on the front of the telescopic pull-out.
u Attach the extension PULBTA (available as an
accessory including screws for attachment) to the
telescopic pull-out.
u Remove the protective film from the adhesive tape
on the front of the extension PULBTA.
