T In the case of thin worktops, there must be a
sufficiently rigid support plate on the unit.
T A false floor must be provided for under the cooktop:
T it must be fitted in such a way that it can be
removed for maintenance work.
T To ensure sufficient cooktop ventilation, a
minimum distance of 15mm to the bottom edge
of the cooktop is to be observed.
T The back panel of the unit must be flush with the
false floor so that the recirculating air is not directed
into the front of the unit.
T A minimum clearance of 25mm between the back
panel of the unit and an adjacent kitchen unit or
room wall must be observed for the return flow of the
recirculation air.
T The drawers and/or shelves in the floor unit must be
removable.
T For correct installation, the drawers of the floor unit
must be shortened depending on the installation
situation.
9.7.6 Installation dimensions for
installation variant B
Adjusting the back panel of the unit
u Adapt the back panel according to the required
installation dimensions.
u If necessary, move the back panel.
u Adjust the height of the back panel to the false floor
so that they are flush with one another.
9.7.7 Preparing the cooktop
Attaching the sealing tape
u In the case of surface mounting, attach the enclosed
sealing tape around the outer edges of the underside
of the cooktop. Do not leave any gaps.
u In the case of flush installation, attach the sealing
tape to the horizontal cutting edge in the worktop
cut-out, even if you are sealing the cooktop with a
silicone sealing compound or similar.
1
2

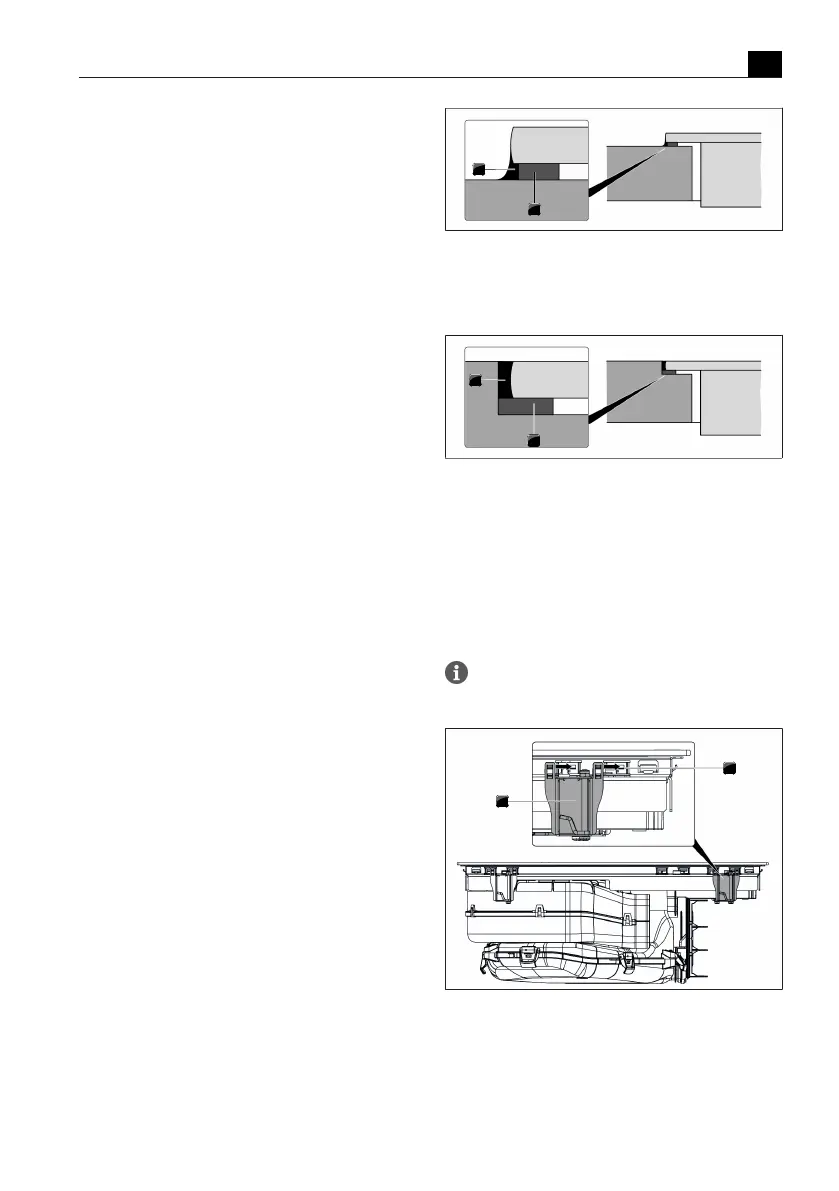

Fig.9.27
Sealing tape in the case of surface mounting
[1]
Black, heat-resistant silicone sealant
[2]
Sealing tape
1
2
Fig.9.28
Sealing tape in the case of flush installation
[1]
Black, heat-resistant silicone sealant
[2]
Sealing tape
Fitting the installation clamps
u Push 2 installation clamps onto each side of the
cooktop until they come to a stop in the retaining
brackets provided.
2 installation clamps must be fitted to each side
of the cooktop.
1
2
Fig.9.29
Fitting the installation clamps
[1]
Retaining brackets
[2]
Installation clamps

bora X Pure Specifications

General

Product name	bora X Pure
Type	Induction
Integrated extractor	Yes
Power levels	9
Boost Function	Yes
Child Lock	Yes
Timer	Yes
Residual Heat Indicator	Yes
Color	Black
Product type	Cooktop
Control type	Touch
Frequency	50 Hz
Material surface	Glass ceramic
Supply voltage	230 V
Air recirculation	Optional
