bora X Pure - Cabinet and Worktop Cut-out Dimensions

Installation
EN
138 bora.com

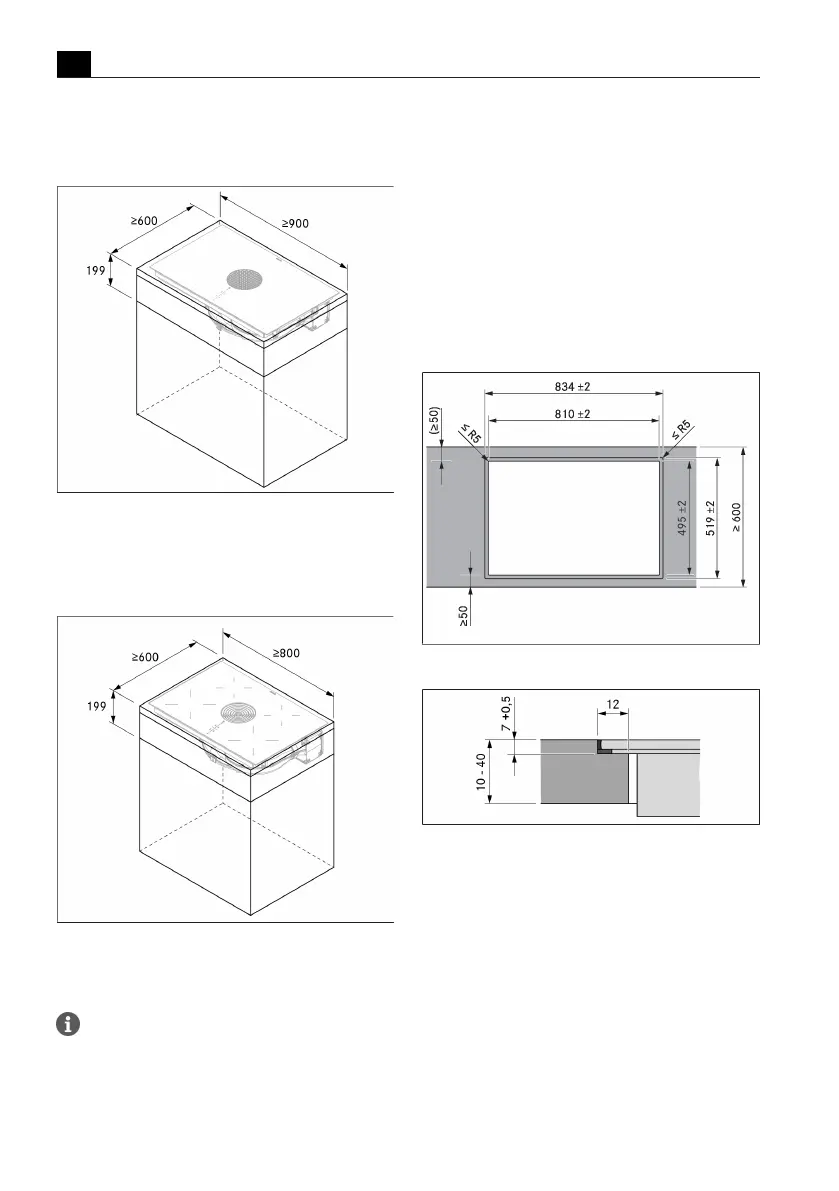

9.4.2 Minimum unit dimensions for
X Pure (PUXA, PUXU)
Fig.9.4
Minimum unit dimensions for X Pure
9.4.3 Minimum unit dimensions for
Pure (PURA, PURU)
Fig.9.5
Minimum unit dimensions for Pure
9.5 Worktop cut-out
The minimum measurement of 50 mm from the
front edge of the worktop to the worktop
cut-out is a recommendation from BORA.
u Create the worktop cut-out taking into account the
specified cut-out dimensions.
u Make sure that the cut surfaces of the worktops are
properly sealed.
u Comply with the instructions of the worktop
manufacturer.
9.5.1 X Pure cut-out dimensions
(PUXA, PUXU)
X Pure flush installation (PUXA, PUXU)
Fig.9.6
Cut-out dimensions for flush installation
Fig.9.7
Rebate dimensions for flush installation
