9.7.9 Inserting the cooktop –
recirculation
1 2 3 4 5
6

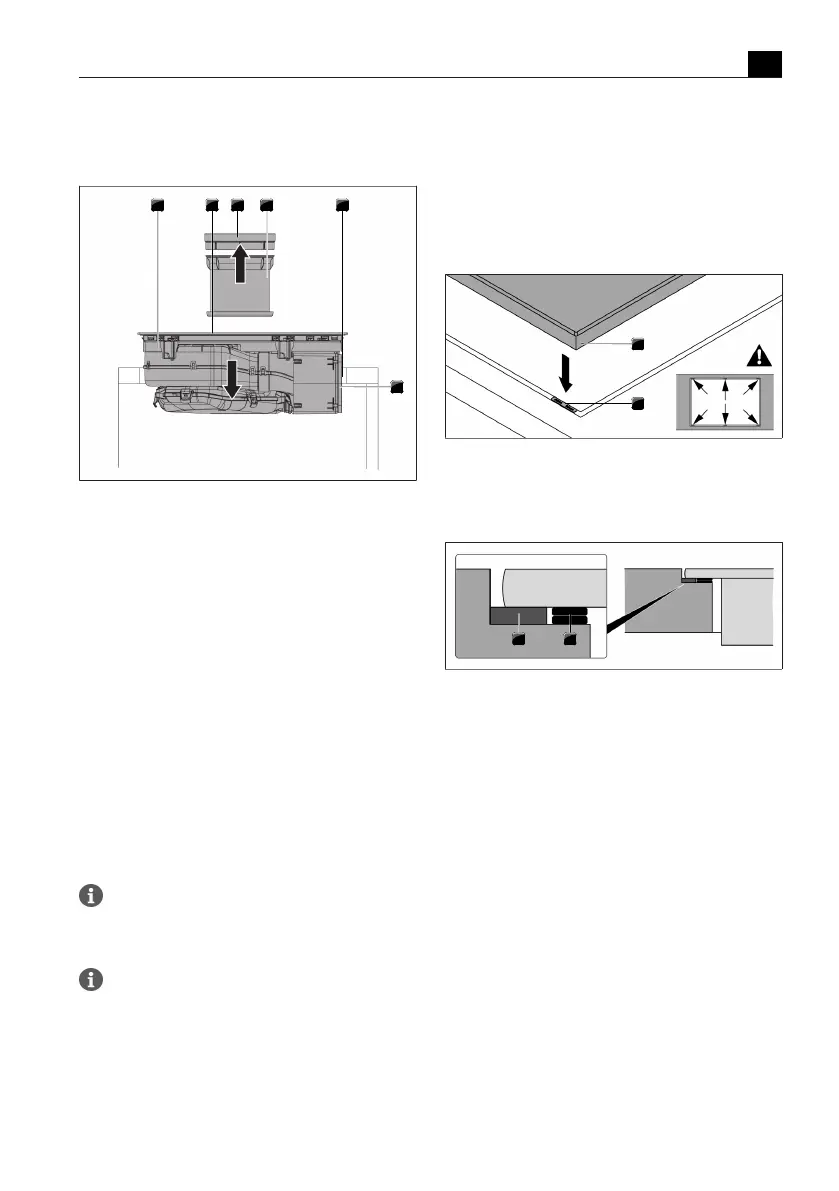

Fig.9.32
Positioning the cooktop in the centre
[1]
Cooktop
[2]
Inlet opening
[3]
Air inlet nozzle
[4]
Stainless steel grease filter
[5]
Worktop cut-out
[6]
Adhesive tape
u Before inserting the cooktop, remove the air inlet
nozzle and the stainless steel grease filter.
u Remove the protective film from the adhesive tape
on the front of the telescopic pull-out.
u Use the inlet opening as a handle during insertion.
u Keep the cooktop straight as you lift it into the
worktop cut-out.
u Insert the cooktop into the centre of the worktop
cut-out.
u Precisely align the cooktop.
Make sure that the cooktop sealing tape is flat
against the worktop in the case of surface
mounting.
Make sure that the cooktop sealing tape is well
sealed all the way round in the case of flush
installation.
Height adjustment plates for flush installation
(optional)
T The height adjustment plates are self-adhesive to
prevent slipping during installation.
u If applicable, insert the height adjustment plates.
u Place the height adjustment plates next to the
sealing tape.
1
2
Fig.9.33
Positioning the height adjustment plates
[1]
Cooktop
[2]
Height adjustment plate
1 2
Fig.9.34
Height adjustment plates
[1]
Sealing tape
[2]
Height adjustment plate
9.7.10 Securing the cooktop
u Secure the cooktop to the worktop with the fixing
bracket on the installation clamp.
u Tightening torque: max. 2.2Nm.
