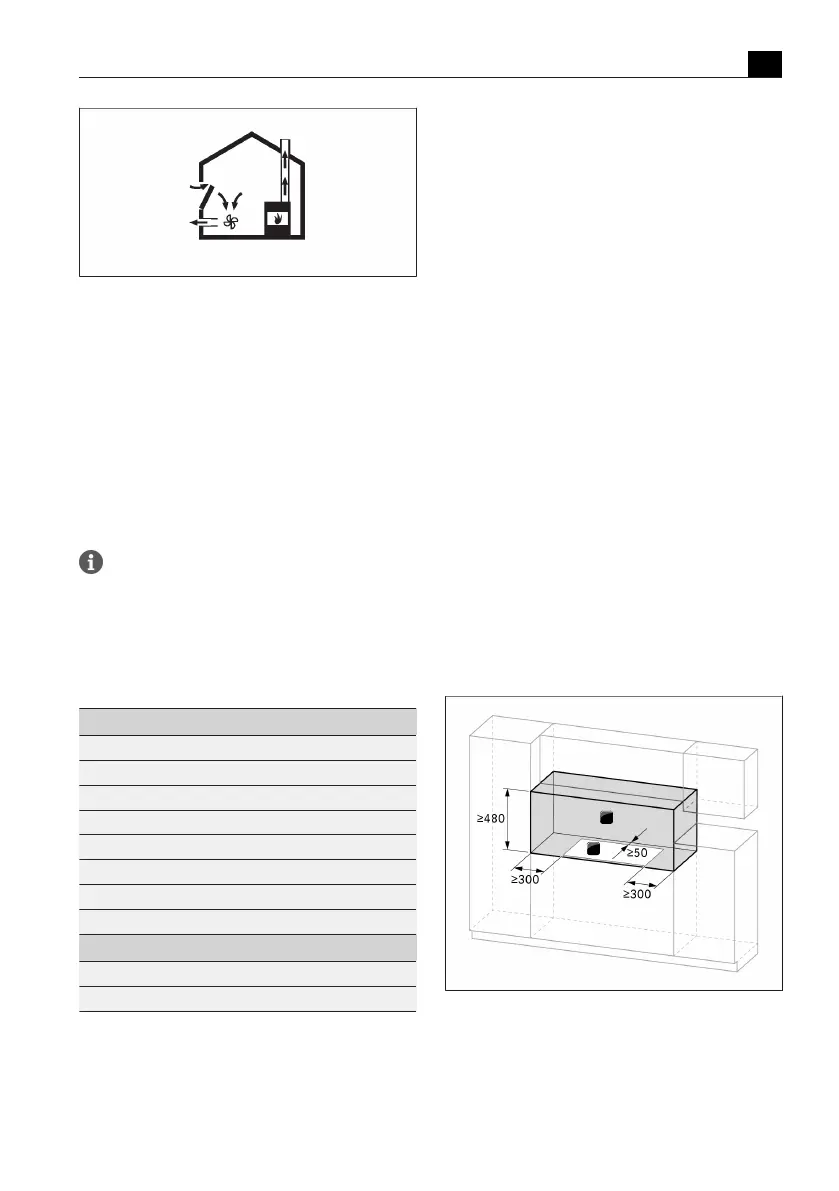

Fig.9.2
Exhaust air installation – correct
u If simultaneously operating both a fireplace and the
cooktop extractor in the same room, ensure that:
T the maximum low pressure is 4Pa (4 x 10–5bar);
T a safety device (e.g. window contact switch, low
pressure warning device) is used to ensure that a
sufficient supply of fresh air is guaranteed;
T the exhaust air is not channelled into a chimney that
is used for exhaust gases of appliances operated
with gas or other combustibles;
T the installation is checked and approved by an
authorised certified engineer (e.g. heating engineer).
If the cooktop extractor is used exclusively in
recirculation mode, operation with an open
fireplace is possible without any additional
safety measures.
9.2 Scope of delivery
Scope of delivery Quantity
Cooktop with integrated cooktop extractor 1
Air inlet nozzle 1
Stainless steel grease filter 1
Operating and installation instructions 1
Installation clamps 4
Sealing tape 1
Height adjustment plate set 1
Bag containing various small parts for assembly 1
Additional scope of delivery: PURU, PUXU
Activated charcoal filter 1
Template for back panel cut-out 1
Tab.9.1
Scope of delivery
Checking the scope of delivery
u Make sure the delivery is complete and check it for
damage.
u Immediately inform the BORA Service TeamTeam if
parts are missing or damaged.
u Do not under any circumstances install parts which
are damaged.
u Dispose of transport packaging in the proper manner
(see"10Decommissioning, disassembly and
disposal").
9.3 Tools and aids
The following tools, among others, are required to
correctly install the cooktop:
T Jigsaw or handsaw
T Template for cut-out on back panel (recirculation
only, included in scope of delivery)
T size 20 Torx screwdriver key
T black, heat-resistant silicone sealant
9.4 Assembly instructions
9.4.1 Installation clearances
u Observe the required clearance around the worktop
cut-out.
1
2
Fig.9.3
Required clearance
[1]
Required clearance
[2]
Worktop cut-out

bora X Pure Specifications

General

Product name	bora X Pure
Type	Induction
Integrated extractor	Yes
Power levels	9
Boost Function	Yes
Child Lock	Yes
Timer	Yes
Residual Heat Indicator	Yes
Color	Black
Product type	Cooktop
Control type	Touch
Frequency	50 Hz
Material surface	Glass ceramic
Supply voltage	230 V
Air recirculation	Optional
