bora X Pure User Manual

Installation
EN
142 bora.com
1
2

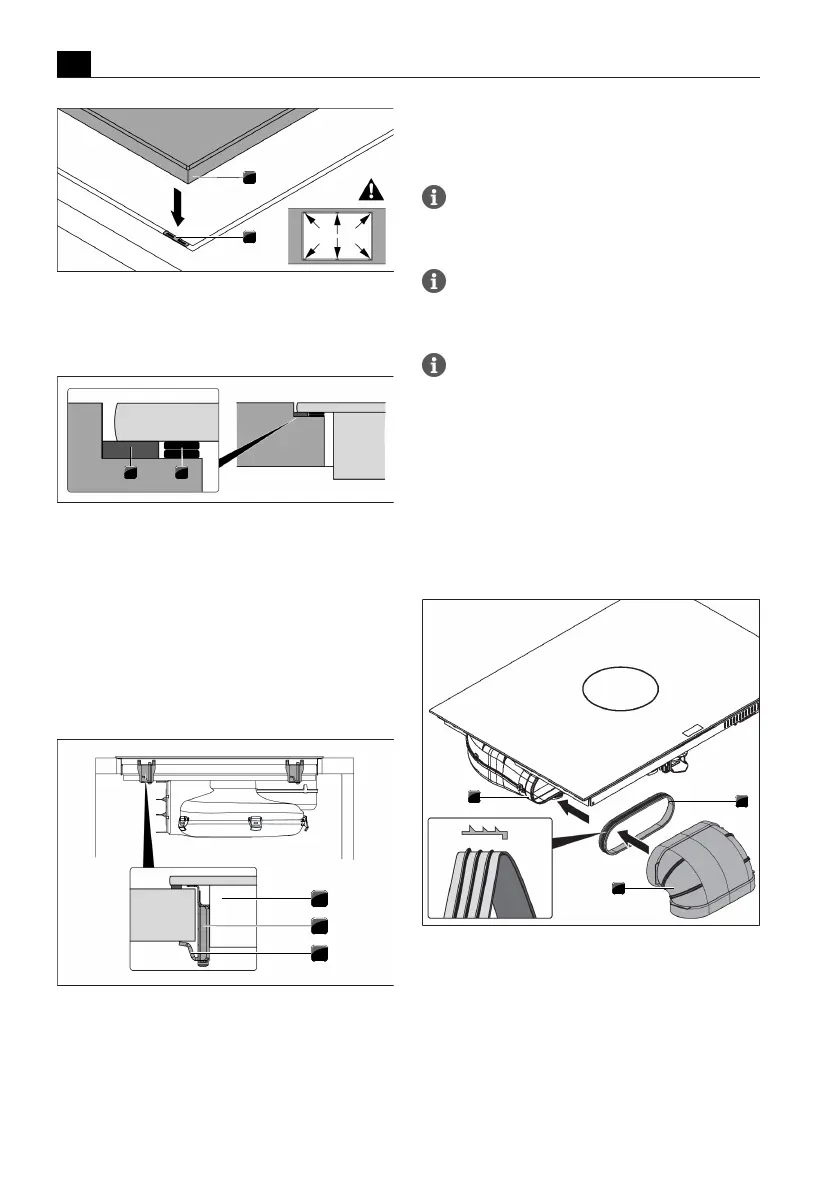

Fig.9.19
Positioning the height adjustment plates
[1]
Cooktop
[2]
Height adjustment plate
1 2
Fig.9.20
Height adjustment plates
[1]
Sealing tape
[2]
Height adjustment plate
9.6.5 Securing the cooktop
u Secure the cooktop to the worktop with the fixing
bracket on the installation clamp.
u Tightening torque: max. 2.2Nm.
1
2
3
Fig.9.21
Securing the cooktop in the middle
[1]
Cooktop
[2]
Mounting bracket
[3]
Fixing bracket
9.6.6 Connecting the appliance to
the duct system
The duct system must be fitted to the appliance
free of load and with the power supply switched
off.
For correct installation, the drawers of the floor
unit must be shortened depending on the
installation situation.
When attaching the seals, ensure that an
airtight seal is created with the connecting duct
piece when the seals are compressed.
u Use only BORA Ecotube duct parts.
u Do not use flexible or fabric hoses.
u Pull the seal onto the exhaust opening on the
appliance. The seal will need to be stretched slightly.
u Push the duct part to be connected with the coupling
onto the exhaust opening with the seal.
u Ensure that the seal is not displaced.
1
2
3
Fig.9.22
Connecting the duct system
[1]
Seal
[2]
Duct part
[3]
Exhaust opening

bora X Pure Specifications

General

Product name	bora X Pure
Type	Induction
Integrated extractor	Yes
Power levels	9
Boost Function	Yes
Child Lock	Yes
Timer	Yes
Residual Heat Indicator	Yes
Color	Black
Product type	Cooktop
Control type	Touch
Frequency	50 Hz
Material surface	Glass ceramic
Supply voltage	230 V
Air recirculation	Optional
