Branson 2000X Series User Manual

4-12 100-214-276 Rev. 3
Chapter 4: Installation and Setup
Installation Requirements

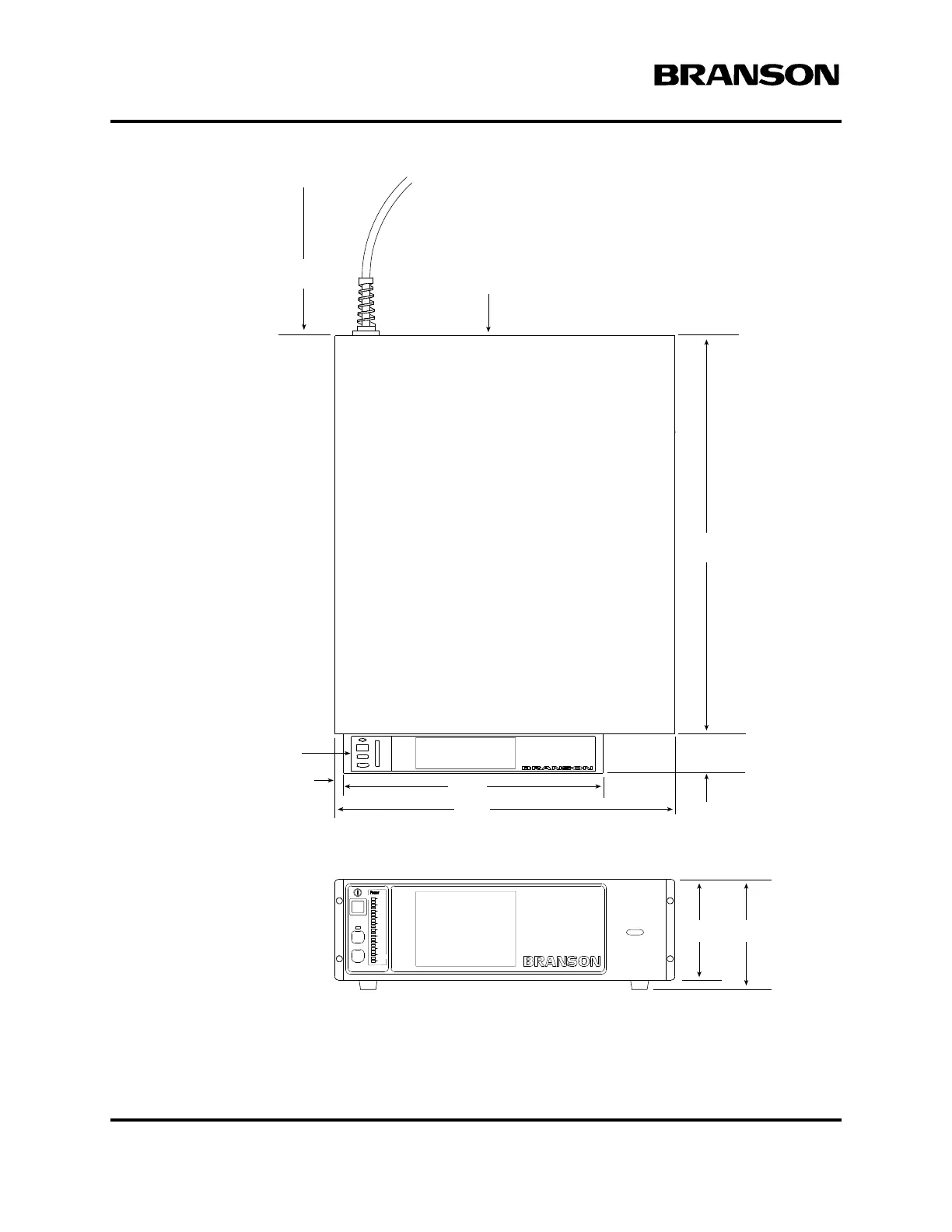

Figure 4.6 Power Supply Dimensional Drawing
0.45”
11.4mm
3.53”
89.7mm
20.6”
522.9mm
Air outlet is under
front panel
5.0” (127mm)
Desired Clearance
Air Intake
5.2”
132.4mm
5.7”
144.8mm
20 %
100 %
80 %
60 %
40 %
0 %
Reset
Tes t
DIGITAL 20:2.5
17.55”
445.8mm
13.4”
340.1mm
DOC EXPIRES 12PM 7/24/2012. Article or Material must comply with the requirements
stipulated by RoHS in its current version

Branson 2000X Series Specifications

General

Frequency	20 kHz
Overload Protection	Yes
Frequency Range	19.5 kHz to 20.5 kHz
Voltage	50/60 Hz
Operating Temperature	0 - 40° C
