TRANSMISSION
KUKJE MACHINERY CO., LTD.
94

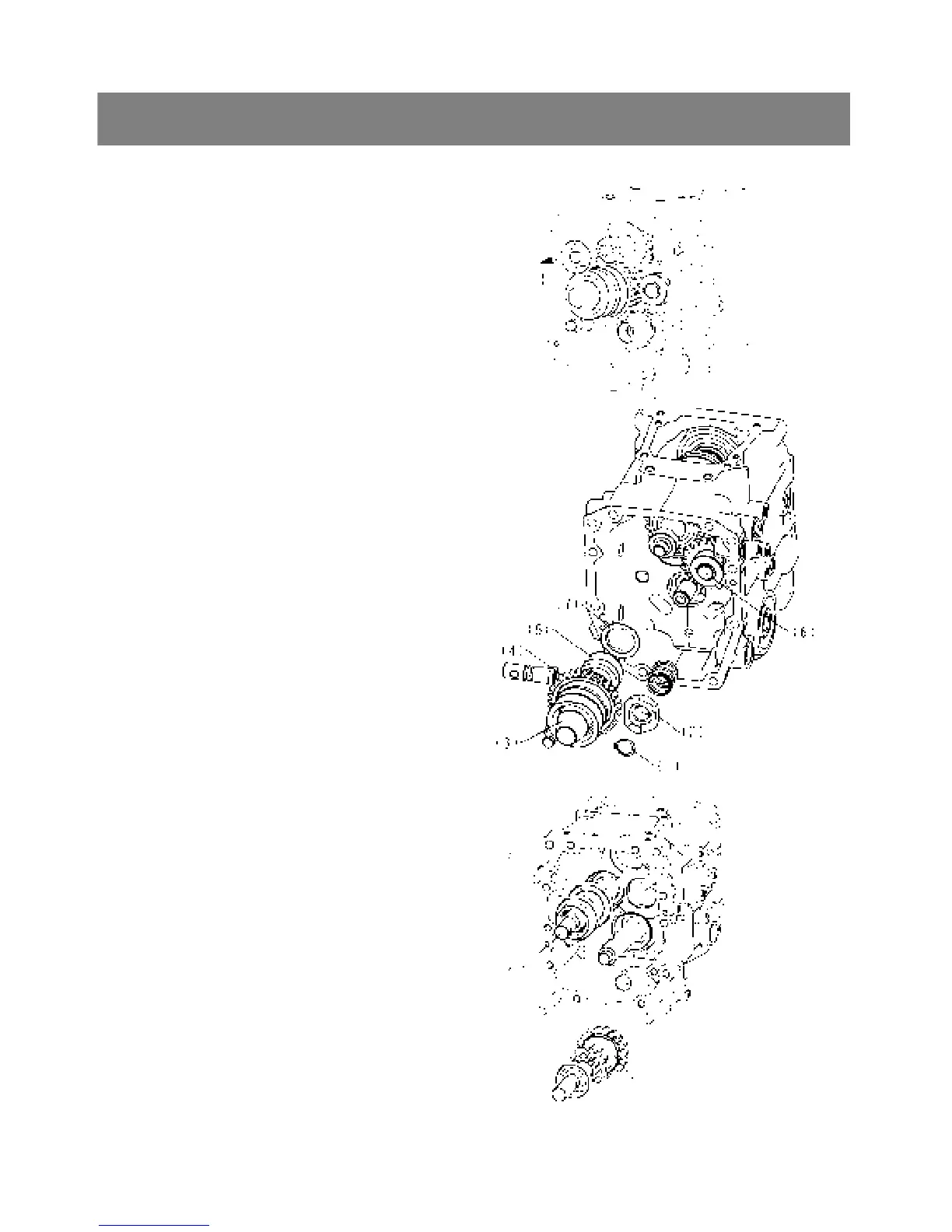

5. CHECKING, DISASSEMBLING AND SERVICING
< 4
th
gear shaft >
1. Remove the bearing, 30T shifter gear and 13T-
17T shifter gear.
2. Draw out the 4
th
gear shaft(1) with 19T gear
rearward.
*. PART NAME
1) 4
th
Gear shaft
< Spiral bevel pinion shaft and 20T shifter gear >
1. Remove the external snap ring(1) and one-way
clutch cam(2).
2. Remove the spiral bevel pinion shaft(3) with 13T-
32T shifter gear(4), 13T gear(5), and shift fork
with shift rod.
3. Remove the external snap ring and remove the
20T shifter gear(6).
▷ Reassembling
9 When installing the spiral bevel pinion shaft, be
sure to install the shim(7).
*. PART NAME
1) External snap ring 2) One-way clutch cam
3) Spiral bevel pinion shaft 4) 13T-32T Shifter gear
5) 13T Gear 6) 20T Shifter gear
7) Shim (1.8T)
< 2
nd
gear shaft and front wheel drive shaft >
1. Remove the 2
nd
gear shaft(1) with bearing.
2. Draw out the front wheel drive shaft(2) with 16T-
20T gear(3).
▷ Reassembling
9 When installing the needle bearing into the 16T-
20T gear, apply transmission oil to the needle
bearings.
*. PART NAME
1) 2
nd
Gear shaft 2) Front wheel drive shaft
3) 16T-20T Gear
(1)
To Next Page
