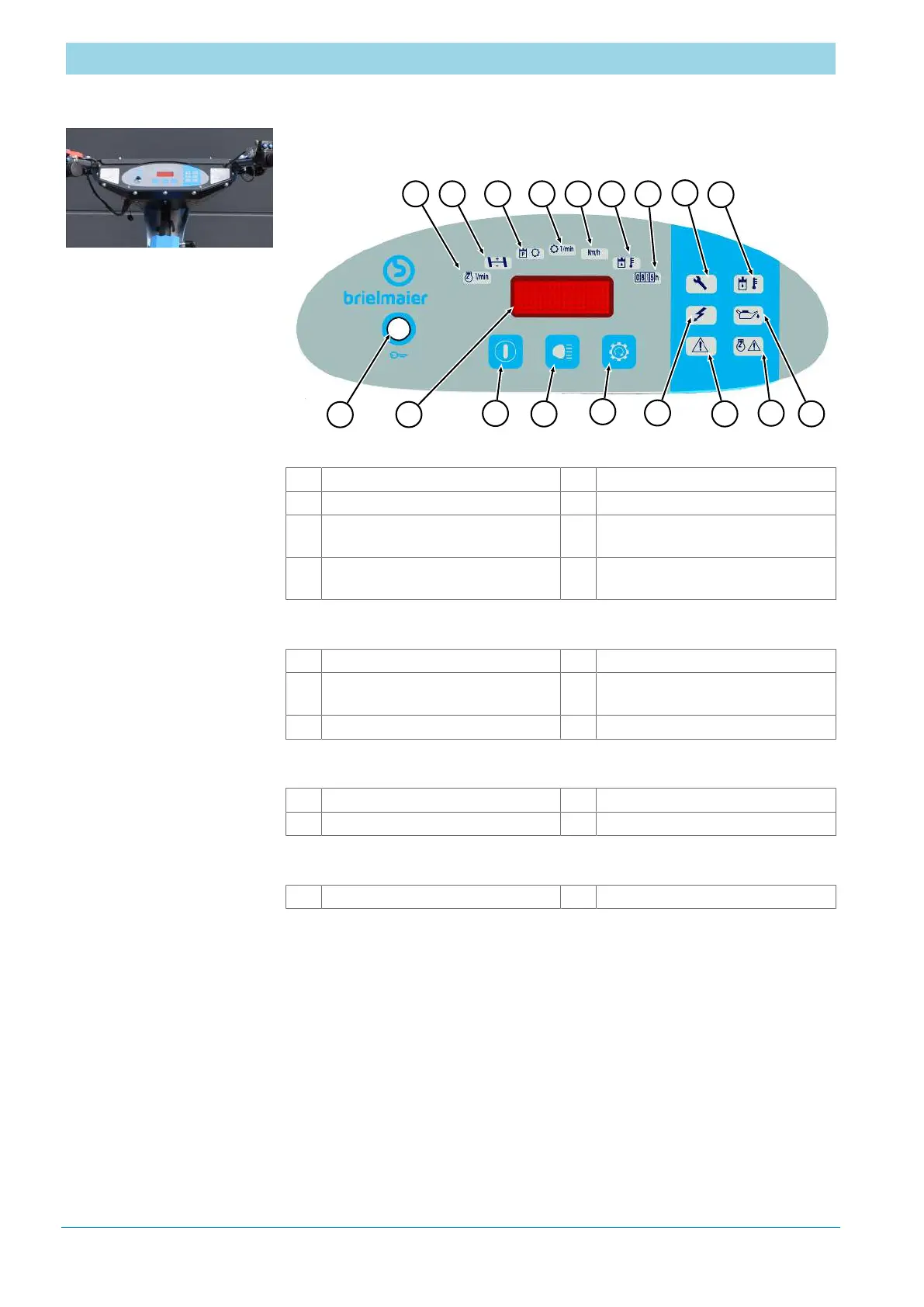

Control panel
The control panel is located between the handles within the operator's
field of view. The control panel has various displays and buttons:
1 2 3 4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Menu lights
1 Engine speed 5 Fault indication / km/h
2 Trim 6 Temperature/voltage
3 Oil pressure of the attachment
drive (standard)
7 Operating hours
4 Oil quantity of the attachment
drive (optional)
Warning lights
8 Tool spanner 11 Fault
9 Hydraulic oil temperature too
high
12 Dead man's lever status
10 Engine oil level 13 Charge control/battery voltage
Buttons
14 "Attachment ON/OFF" button 16 "Engine ON/OFF" button
15 "Headlights ON/OFF" button
Additional displays and controls
17 Display 18 Key
