7.5.11 Change fuses
The fuses for protecting the electrical system against overload are located
in the toolbox under the foam rubber.
NOTICE
Risk of damage to equipment or malfunction!
Use of incorrect fuses may result in damage to equipment. Improper
installation may result in malfunctions.
4 Only use fuses of the same value.
4 Observe the following instructions.
1
2
3
4

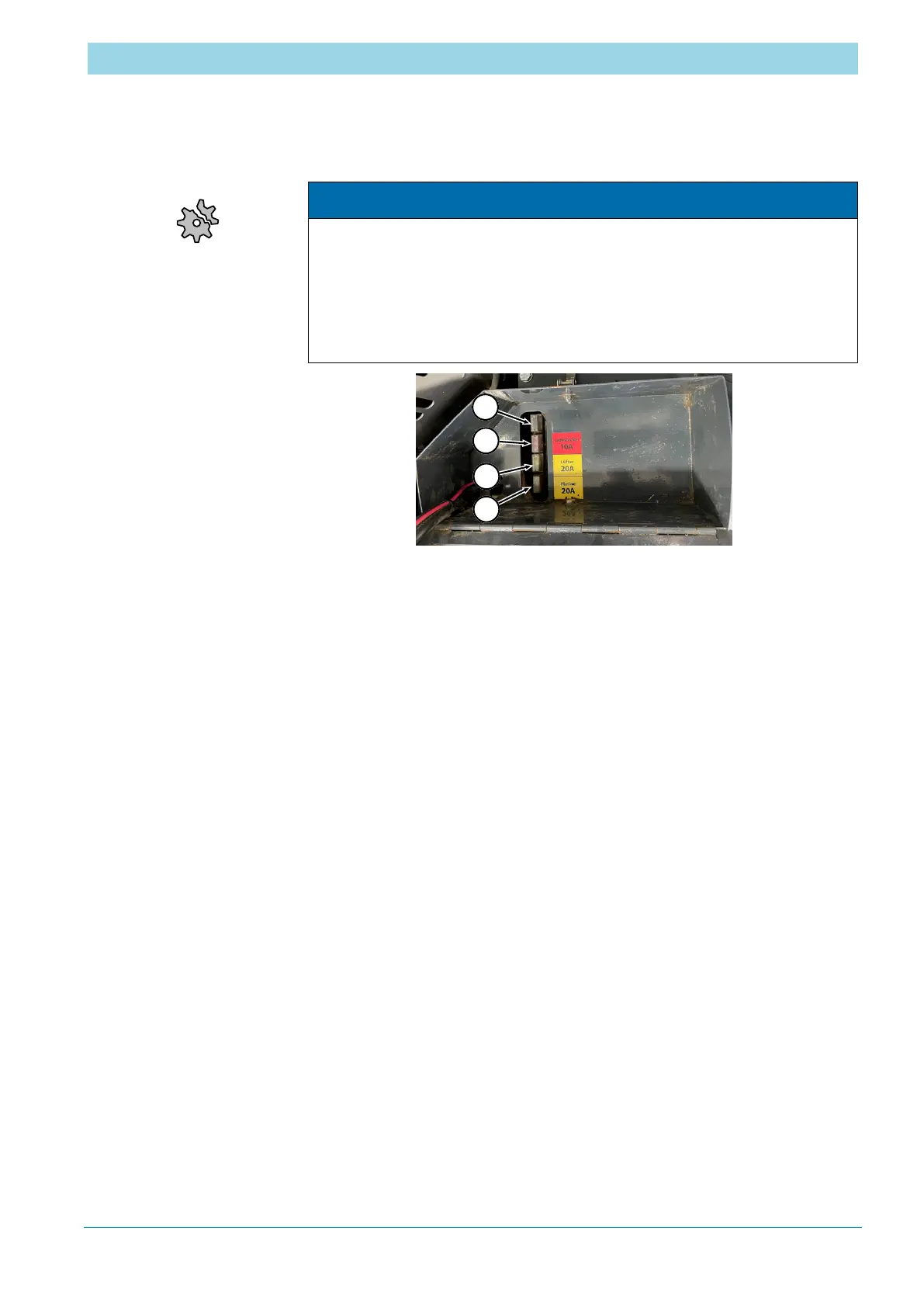

To change the fuses:
a) Open the toolbox and remove the foam rubber.
b) Remove the protective caps from the fuses.
c) Remove the fuses.
d) Insert new fuses of the same value:
ð Fuse holder (1): Board, 20A
ð Fuse holder (2): Fan, 20A
ð Fuse holder (3): Charging plug, 10A
ð Fuse holder (4): The fourth fuse holder is unoccupied. Do not use a fuse
here. Otherwise, the engine is switched off.
e) Replace the protective caps.
f) Insert the foam rubber into the toolbox and close the toolbox.
