Brocade Communications Systems MLX Series Hardware Installation Guide

290 Brocade MLX Series and NetIron XMR Hardware Installation Guide
53-1003821-01
Replacing fan assemblies
7
3. If louvers are present inside the fan assembly faceplate, detach them by removing the 11 roll
pins that secure the louvers to the inside of the fan assembly faceplate.
NOTE
Legacy Brocade MLX-32 fan assemblies may have louvers. Louvers are not present in newer
Brocade MLX-32 fan assemblies.

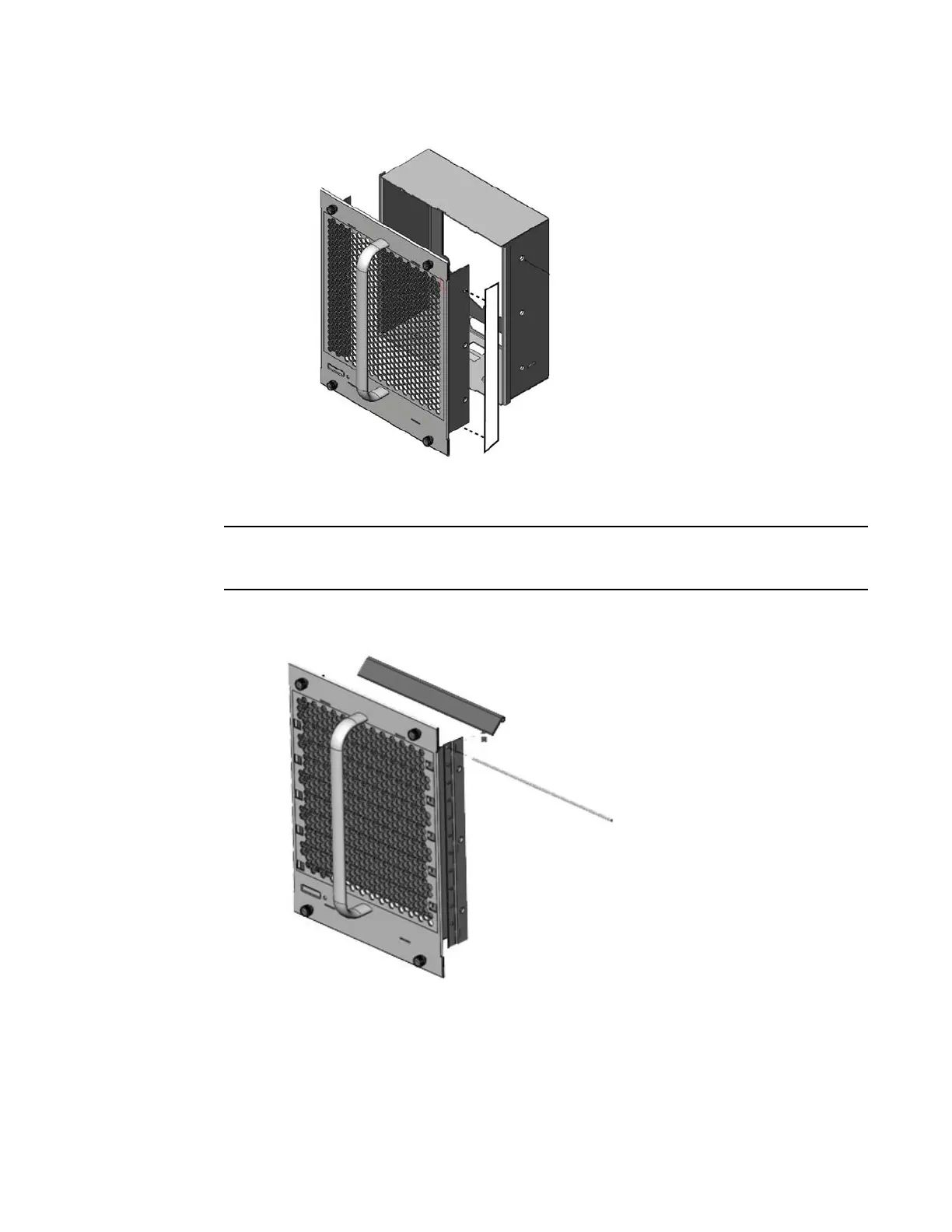

FIGURE 169 Removing the louver on a legacy chassis.
The louvers will fall out of the fan assembly faceplate as you pull out the roll pins. Refer to
Figure 169.
4. Remove the fan assembly handle by detaching the two screws from the inside of the fan
assembly faceplate using a Phillips screwdriver. Refer to Figure 170.
FIGURE 170 Handle removal
