Brocade MLX Series and NetIron XMR Hardware Installation Guide 27
53-1003821-01
Router modules
1
http://www.brocade.com/downloads/documents/data_sheets/product_data_sheets/optics-famil
y-ds.pdf
Power supply requirements for BR-MLX-1GFx24-X and BR-MLX-1GFx24-X-ML interface modules
For power supply requirements for BR-MLX-1GFx24 and BR-MLX-1GFx24-X ML (24-port 1 Gbps)
fiber interface modules, refer to Chapter 8, “Hardware Specifications”.
20-port 100/1000 Ethernet interface module
Figure 20 shows the front panel of the 20-port 100/1000 Gbps Ethernet SFP interface module.

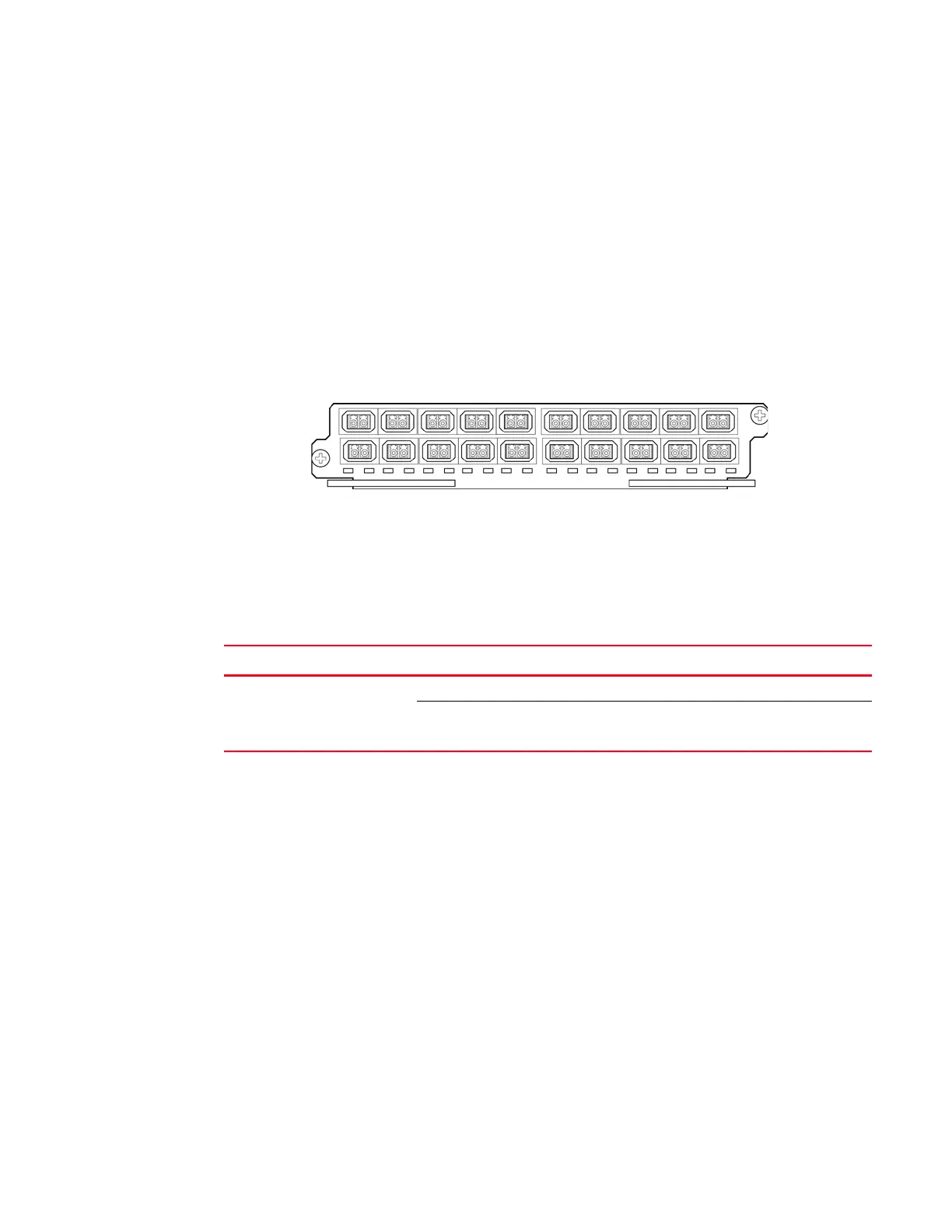

FIGURE 20 20-port 100/1000 Ethernet module front panel
The front panel includes the following features:
LEDs to the left support the top ports, LEDs to the right support the bottom ports
20 100/1000 Ethernet SFP ports
Table 12 describes the LEDs for the 20-port 100/1000 Ethernet module
100/1000 Ethernet ports
The 100/1000 Ethernet interface module contains 20 physical ports, through which you can
connect your router to other network routers at a speed of 100 Mbps or 1 Gbps.
You must insert an SFP-compliant fiber-optic transceiver (provided by Brocade) into a physical port.
SFP-compliant fiber-optic transceivers provide a physical medium-dependent (PMD) fiber interface
that can be used with either the LAN physical layer (PHY) or WAN physical layer (WAN PHY).
For a list of SFP optics supported by Brocade, refer to the latest version of the Brocade Optics
Family Data Sheet, available online in the following location:
http://www.brocade.com/downloads/documents/data_sheets/product_data_sheets/optics-famil
y-ds.pdf
20-port 10/100/1000 Ethernet interface module
Figure 21 shows the front panel of the 20-port 10/100/1000 Ethernet RJ45 module.
FIGURE 21 20-port 10/100/1000 copper Ethernet interface module front panel
TABLE 12 20-port 100/1000 Ethernet module LEDs
Position State Meaning
Below each Ethernet port.
(Left-side LED supports port in
top row. Right-side LED supports
port in bottom row.)
On or blinking The port is transmitting and receiving packets.
Off for an extended period The port is not transmitting or receiving packets.
