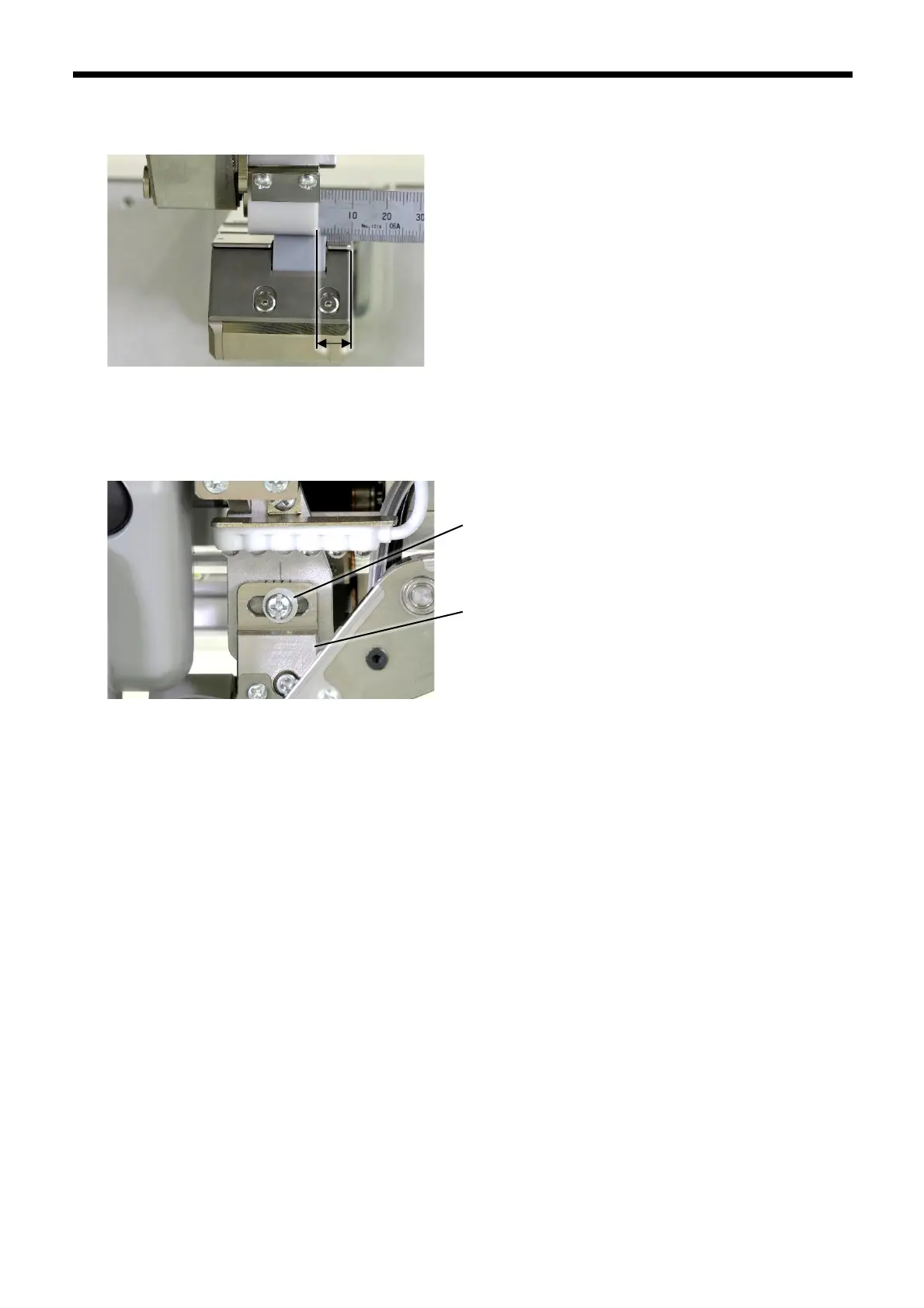

3. Adjust the sideways position of the upper feed mechanism so that the distance between the edge of the upper roller and
the edge of the arm is as given below.
6mm Nozzle: 13.4mm, 8mm Nozzle: 11.4mm, 10mm Nozzle: 9.4mm
4. Tighten the three screws (3) which were loosened in step 2.
5. Install the rear cover L (2) which was removed in step 1.
[Sensor position adjustment]
1. Loosen the screw (5) of the sensor support (4).
To Next Page
