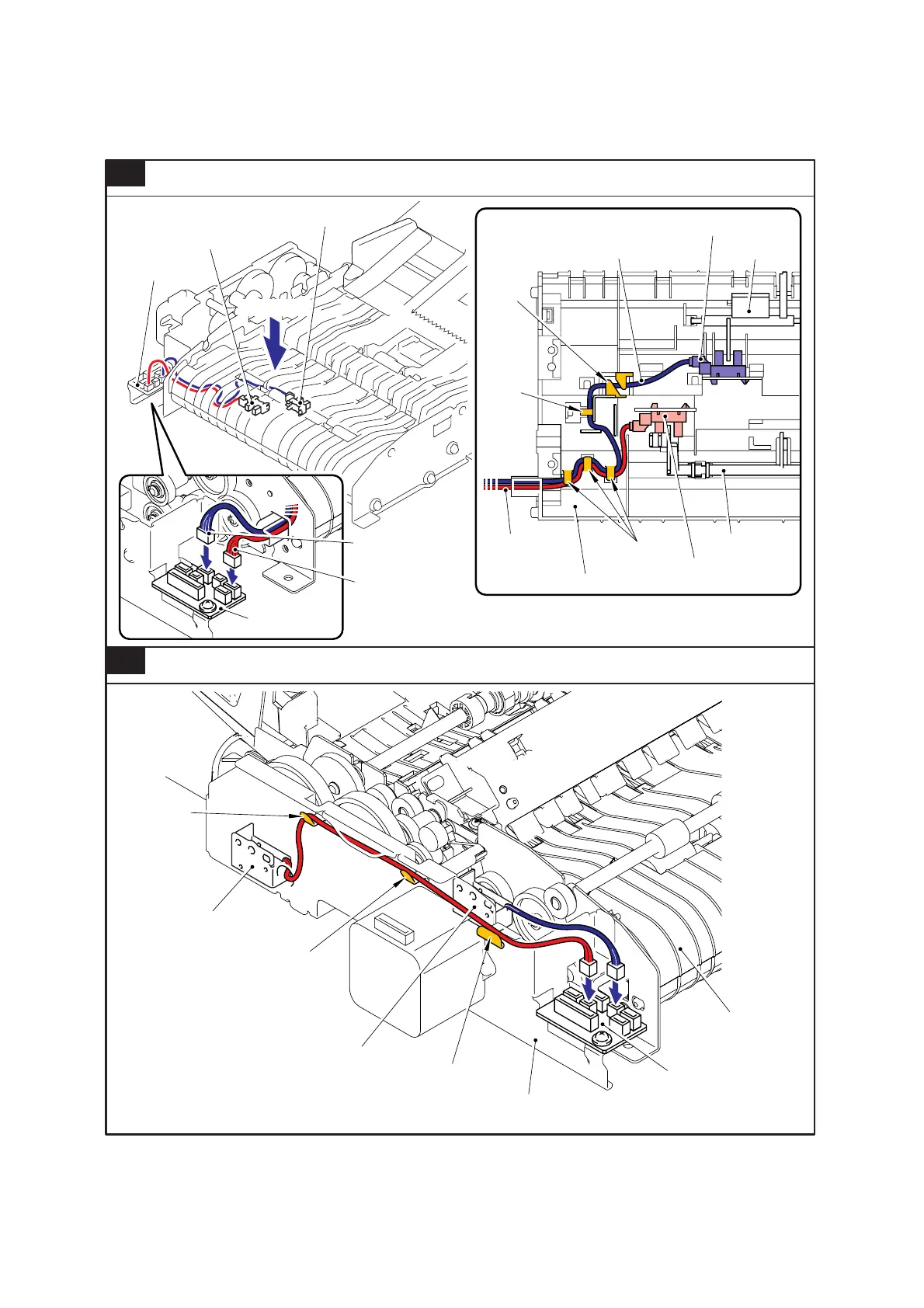

ADF unit ( S/B solenoid ASSY , PF solenoid ASSY )
ADF chute ASSY
18
Hook
Hook
Hook
S/B solenoid ASSY
PF solenoid ASSY
ADF relay PCB
Motor frame ASSY
ADF unit ( Document rear sensor , Switch back sensor )
17
Actuator R
Actuator SB
Lower main chute ASSY
Hook
Hooks
Hooks
ADF relay PCB
ADF relay PCB
< View A >
< View A >
Document rear sensor
Switch back sensor
Document rear sensor
Document rear
sensor harness
Document rear
sensor harness
Switch back sensor
Switch back
sensor harness
Switch back sensor harness
